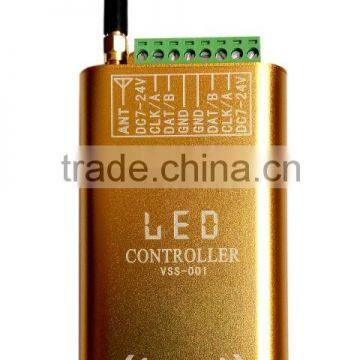

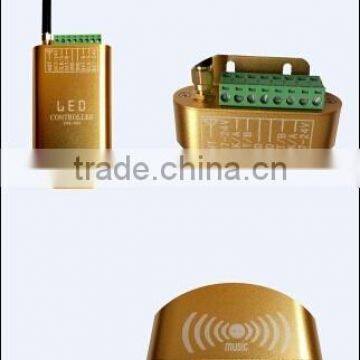

Android System Wifi Controller

Android System Wifi Controller thumbnail-1
Android System Wifi Controller thumbnail-2
Android System Wifi Controller photo-1
Android System Wifi Controller photo-2
US$ 1 - 33.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
-
Type:
Flex LED Strips
Input Voltage(V):
DC7-24V
Contact Supplier Request Quote Chat Now
Shenzhen VSS Winline Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source -
Type Flex LED Strips
Input Voltage(V) DC7-24V
Lamp Power -
Lamp Luminous Flux(lm) -
Color Temperature(CCT) -
Working Temperature(℃) 0, 45
Working Lifetime(Hour) 50000
Lamp Body Material Iron
Certification CE, FCC
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name VSS
Model Number LED-CTR-WF01
Product Description

Android system  wifi music controller can support DMX512, TM1809,TM1812,WS2801,WS2811,WS2812B,UCS1903, etc









 The chip supported as below:





1. One signal wire- TMXX:  TM1803-TM1804-TM1812-TM1825-TM1826-TM1829-TM1925-TM1926-TM1913-TM1914-TM1915-TM1916-TM1814

                               Other: IN1504-INK1003-WS2811-UCS1903-UCS1909-UCS1912-UCS2903-SM16703-SM16709-SM16712



2. Two signal wire:  WS2801-LPD6803-LPD8806    DMX512-1990 standard protocols









RF remote control:





Operating control:



1. Power button:press"on/off" to turn on or off

2. Voice switch: press“pause" button for 3 seconds to turn on or off the environment voice

3. Sensitivity: short press"pause" button for 1-8 level cyclic adjusting sensitivity

4. Speed regulation; short press"S+" to speed up; short press"S-" to speed down

5. Static pattern: short press"B+" to next pattern; short press"B-" to last pattern

6. Dynamic pattern: short press: "M+" to next pattern; short press"M-" to last pattern





Setup steps:



1. long press"on/off" button for 3 seconds to enter the pixel width settings

2. short press "S-"  to make the first 3 pixels are lighting"RGB"

3. short press"S+" to set the led sequence, make sure the lighting sequence is "RGB"

4. short press "S+" or "S-" to set pixel height; press longer to make fast regulation

5. short press"B+" or "B-" to set pixel width; press longer to make fast regulation

6. short press "ON/OFF" button to exit setup mode
