Product Introduction
JZC350H is based on the improved JZC350 concrete mixer blender. Especially for the European market. Feeding structure using the hydraulic cylinder material, has run smoothly, feeding smooth, simple structure, long life and other characteristics.
The machine used for mixing plastic and low fluidity concrete, JZC350H type can stir every 0.35m3 concrete (refer to pieces of the plot after tamping), JZC350H type of 12-14m3 / h, suitable for most small and medium construction, roads, bridges, water conservancy and concrete plant.
This machine is bipyramid reversal discharging self-loading concrete mixers, the mixing tube are stirred into reverse as the material, has a simple structure, reliable, good mixing quality, high production efficiency, light weight, easy to manipulate maintenance, etc., is more advanced models of the concrete mixer
Main Parameter
| Model | Gear drive tipping bucket feeding |
| Feeding form | Manual feeding |
| Barrel Transmission ways | Gear ring type |
| Discharge capacity(L) | 350 |
| Feed capacity(L) | 560 |
| Productivity(m3/h) | 14 |
| Mixing Motor Model | Y132S-4 |
| Minxing Motor Power(kw) | 5.5 |
| Mixing Motor Speed(r/min) | 1440 |
| Winding Motor Model | no |
| Winding Motor Power(kw) | no |
| Pump Motor Model | 40DWB20-8A |
| Pump Motor Power(kw) | 0.55 |
| Pump Motor Speed(r/min) | 2880 |
| Drum Speed(r/min) | 14.5 |
| MAX. Towing speed(km/h) | 20 |
| MAX. Aggregate size(mm) | 60 |
| Mixing time(s) | 35-45 |
| Working dimensions(mm) | 2810*2240*3070 |
| Transport dimensions(mm) | 2550×2230×2150 |
| Weight(kg) | 1300 |
| Price(per set) |

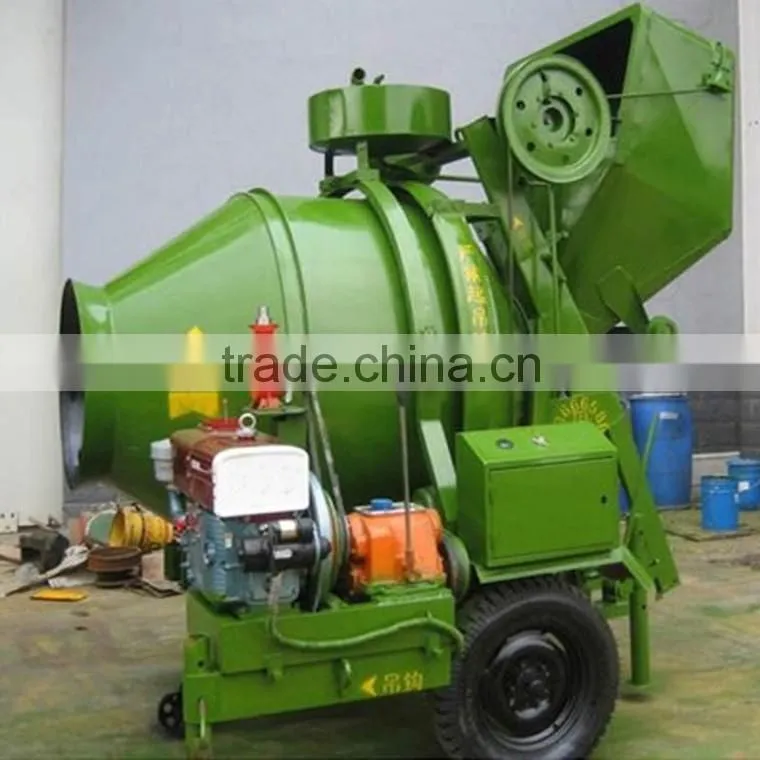

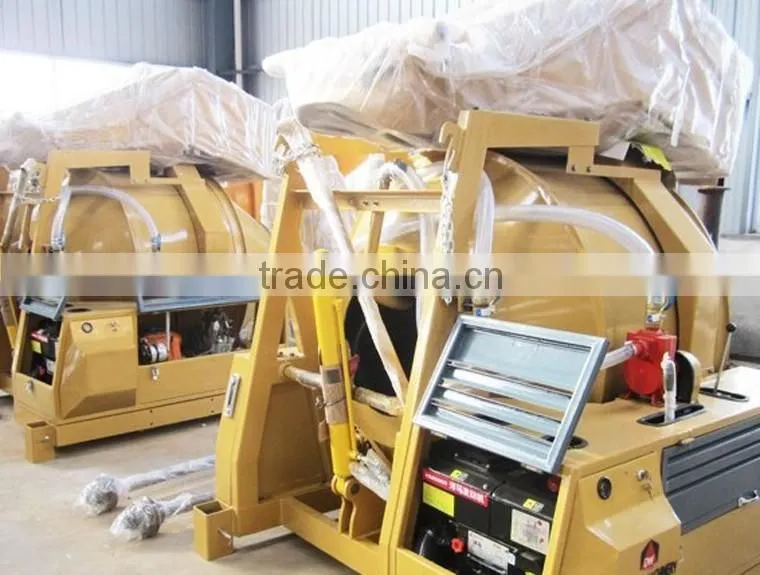

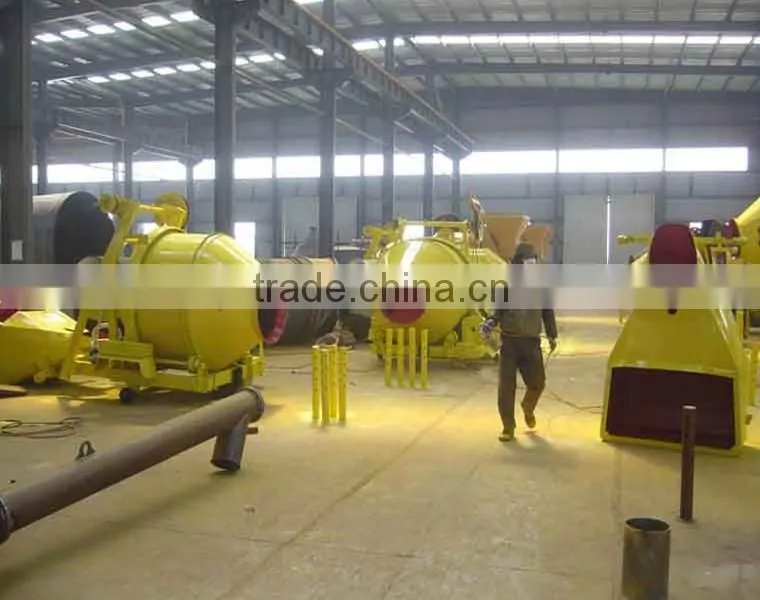

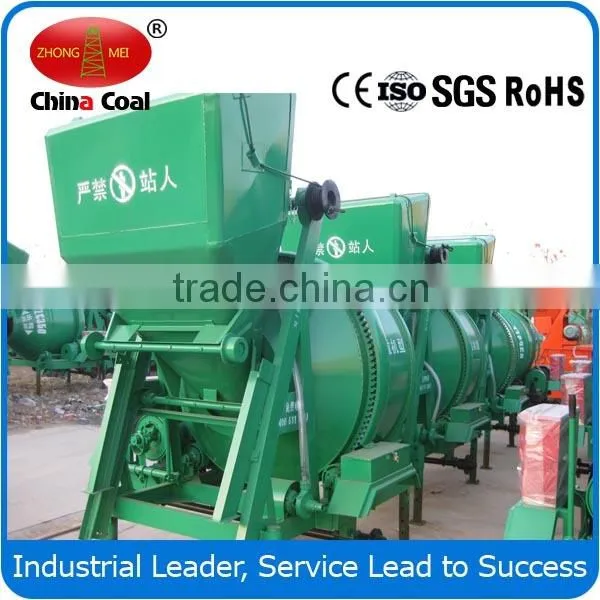

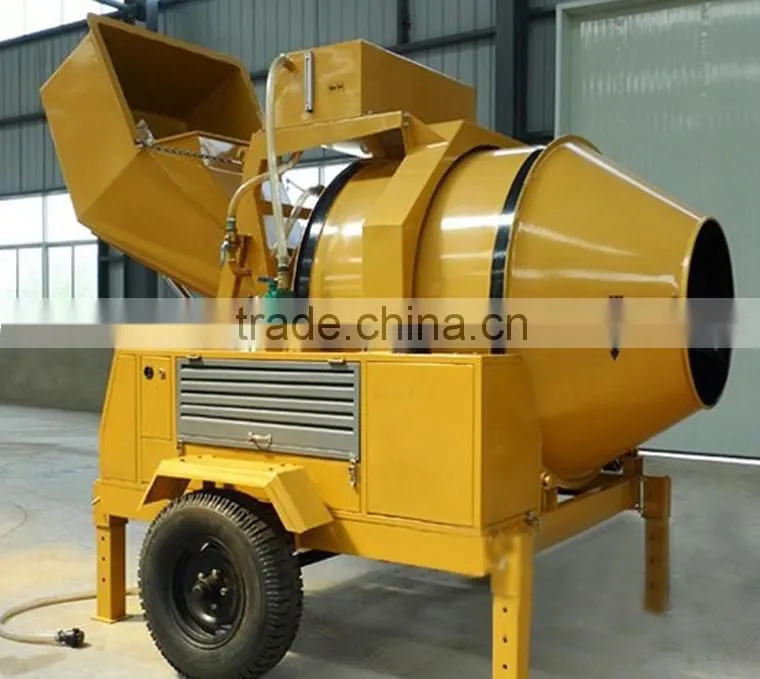

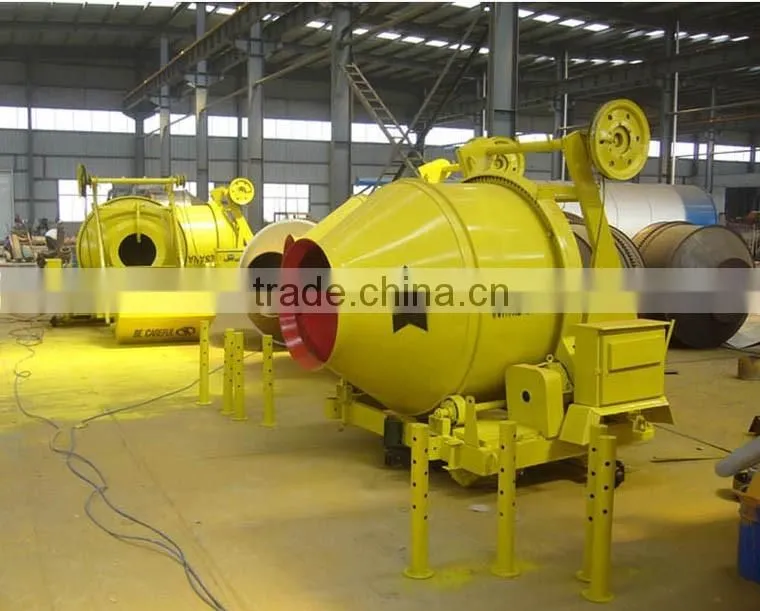

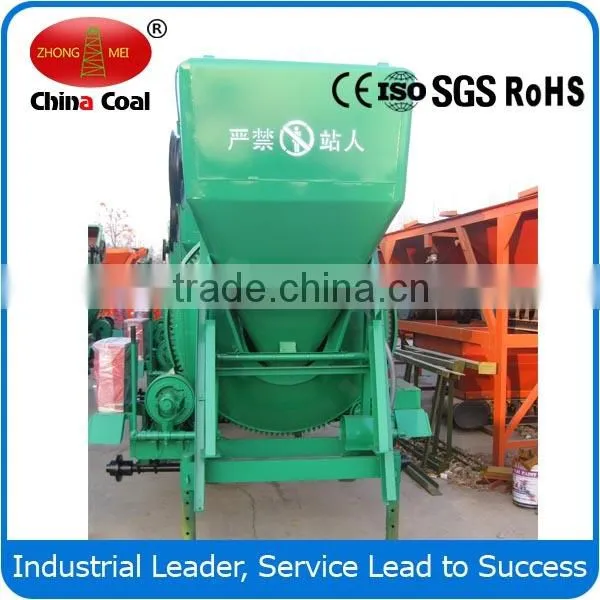

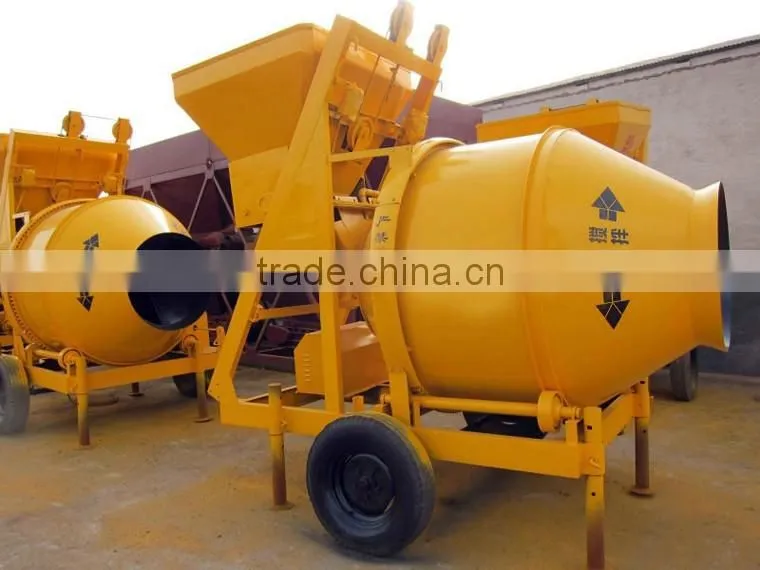

Figure Photos
