Hdt Series Hopper Capacity 700L Concrete Boom Pump Truck Introduction
42m/45m-boom Concrete Pump Trucks
Designed on the basis of accurate data from finite element analysis and dynamics simulation analysis, the boom system has a scientific structure and excellent performance. Besides, stress and strain tests are conducted by the national test center to verify the agreement between the calculation and analysis result of the boom structure and its actual working condition. The design of HONGDA Pump Truck adopts an international purchase strategy, and all its key components are world-famous brands which have the following features:
1.The big-diameter conveying cylinder has a strong suction ability and can afford large pumping flow.
2.The HBC wireless remote-control unit imported with original German packaging is light in weight and easy to carry. The operator can put the distributing boom in place simply by operating the handle bars.
3.The pumping capacity can be regulated through the stepless control device.
4.The stretching speed of the distributing boom can be regulated through the quick-and-slow stepless control device.
5.The slewing speed of the boom can be regulated through the stepless control device.
6.It is equipped with the emergency brake device and the automatic speed-control device for the diesel engine to reduce oil consumption.
7.Equipped with the STEIBEL transfer case and the REXROTH pump unit imported with original German packaging;
8.Equipped with slewing reducers and motors imported with original packaging;
9.Equipped with HAWE proportional multi-way valves imported with original German packaging;
10Equipped with originally-imported REXROTH valves and valves made by Italian oil-control companies;
11.It is equipped with an electric cabinet with totally-imported components; control modules like PLC are all products from the German company SIEMENS.

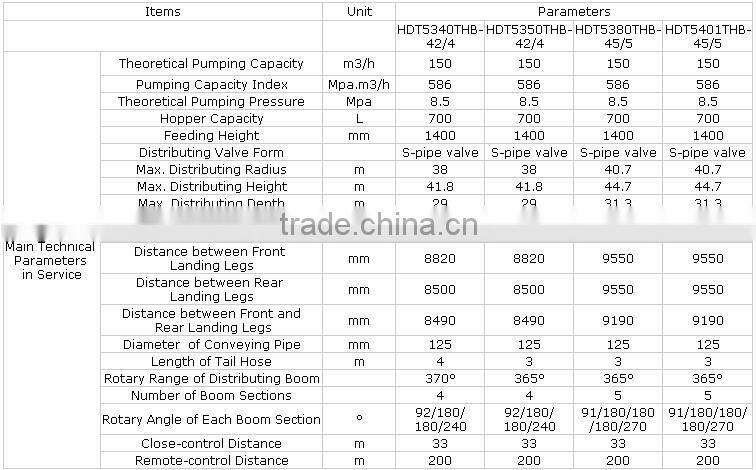

Hdt Series Hopper Capacity 700L Concrete Boom Pump Truck Parameter
| Items | Unit | Parameters | ||||
|
HDT5340 THB-42/4 |
HDT5350 THB-42/4 |
HDT5380 THB-45/5 |
HDT5401 THB-45/5 |
|||
|
Main Technical Parameters in Traveling Condition |
Max. Traveling Speed |
km/h | 85 | 85 | 85 | 80 |
|
Min. Turning Radius |
mm | 11900 | 12100 | 11900 | 12100 | |
| Brake Distance | m | 10 | 10 | 10 | 10 | |
| Approach Angle | ° | 16 | 16 | 16 | 16 | |
| Departure Angle | ° | 11 | 11 | 11 | 11 | |
| Chassis Model |
ISUZU CYH51Y |
HOWO ZZ5437S4667C |
ISUZU CYH51Y |
HOWO Z Z5437S4667C |
||
|
Wheel Base between the First and the Second Axle |
mm | 1850 | 1800 | 1850 | 1800 | |
|
Wheel Base between the Second and the Third Axle |
mm | 4605 | 4600 | 4605 | 4600 | |
|
Wheel Base between the Third and the Fourth Axle |
mm | 1310 | 1350 | 1310 | 1350 | |
| Front Tread | mm | 2065 | 2022 | 2065 | 2022 | |
| Rear Tread | mm | 1850 | 1830 | 1850 | 1830 | |
| Max. Engine Power | kw | 287(1800r/min) | 275(2200r/min) | 287(1800r/min) | 275(2200r/min) | |
| Horsepower | 390 | 375 | 390 | 375 | ||
| Engine Model | 6WF1D | WD615.96 | 6WF1D | WD615.96 | ||
| Max Engine Torque | n.m |
1863 (1100r/min) |
1500 /( 1100~1600 r/min) |
1863 (1100r/min) |
1500 / (1100~1600 r/min) |
|
| Max. Grade Ability | % | 37 | 37 | 35 | 35 | |
| Fuel Consumption Limit | L/100km | 38 | 38 | 40 | 40 | |
|
Overall Dimension (L ×W× H) |
mm |
13800×2490 ×3995 |
13650×2490 ×3960 |
13100×2500 ×3900 |
13300×2500 ×4000 |
|
|
Full-load Tota l Weight |
kg | 34500 | 35000 | 38000 | 40000 | |

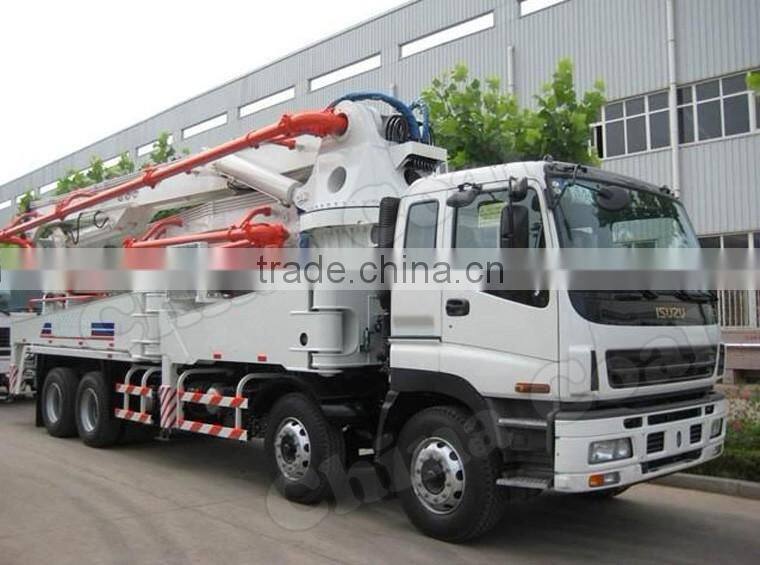

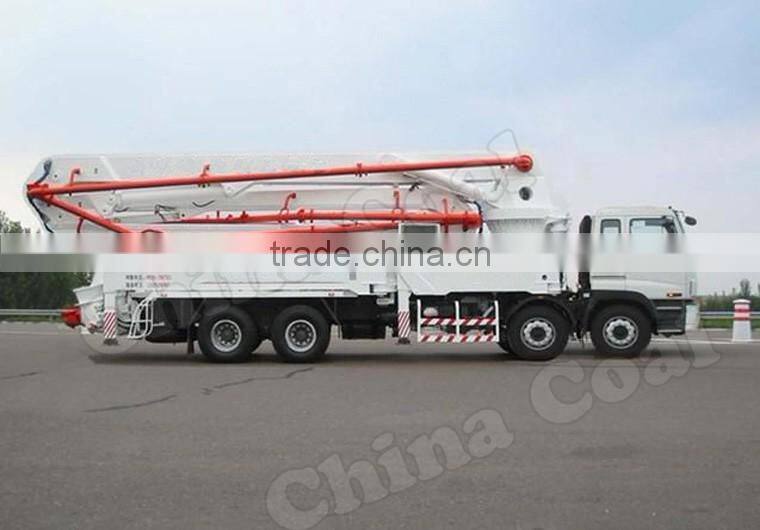

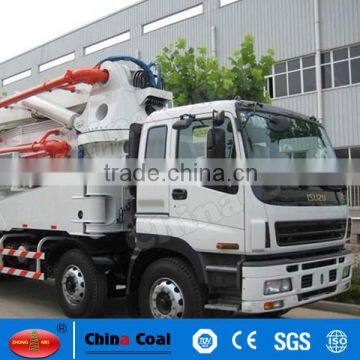

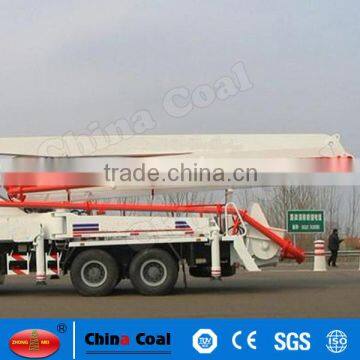

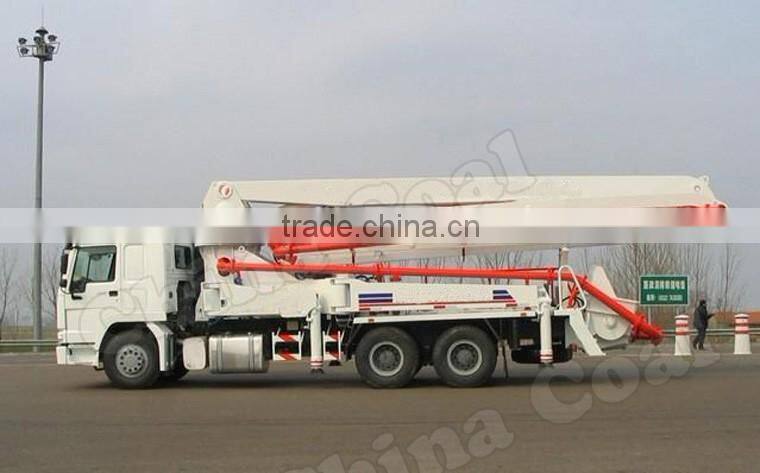

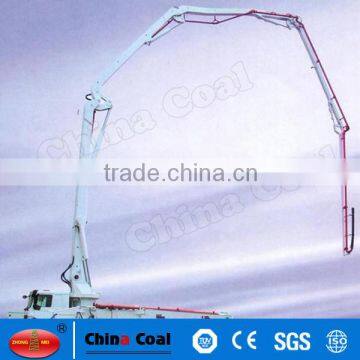

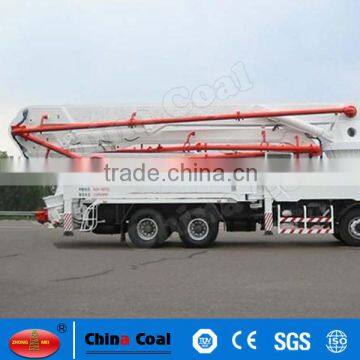

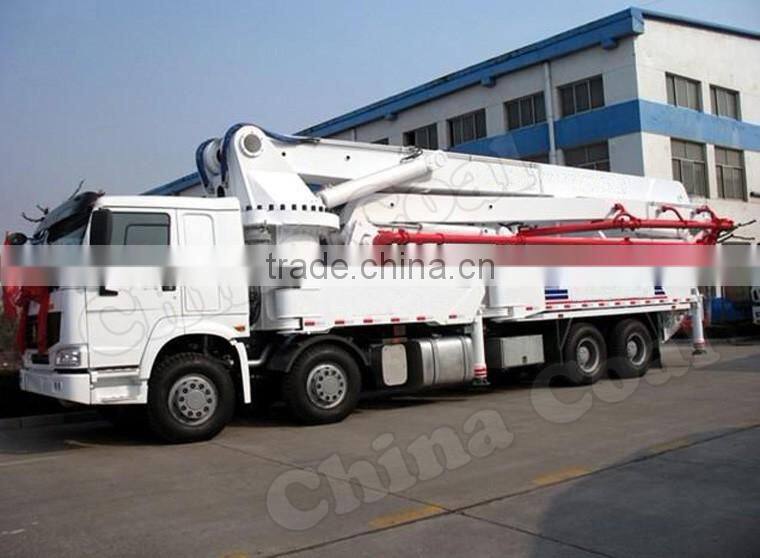

Hdt Series Hopper Capacity 700L Concrete Boom Pump Truck Photos
