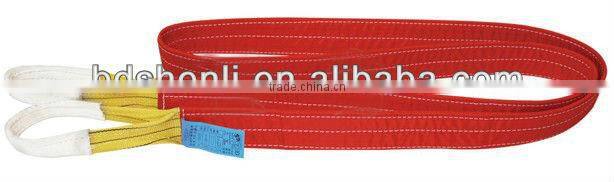

Polyester Heavy Duty Web Sling With Two Eyes
Specifications
1).Product name: Round sling2).Length:0.5-80m
3).Weight:0.47-226kg
4).Material:100% high tenacity polyester
1).Product name: Round sling
2).Length:0.5-80m
3).Weight:0.47-226kg
4)Material:100% high tenacity polyester
5.Load capacity: 1-30ton
6.Certification: CE
| Max.SWL=Mode Coefficient P*Rated Working Load Max.SWL of lifting method | |||||||
| Code | Color | Minimum Breaking Load (Kg) | Rated Working Load | UprightP=1 | ChokedP=0.8 | Angle 45 P=1.8 | Angle 90 P=1.4 |
| (Kg) | (Kg) | (Kg) | (Kg) | (Kg) | |||
| JB-01 | 6000 | 1000 | 1000 | 800 | 1800 | 1400 | |
| JB-02 | 12000 | 2000 | 2000 | 1600 | 3600 | 2800 | |
| JB-03 | 18000 | 3000 | 3000 | 2400 | 5400 | 4200 | |
| JB-04 | 24000 | 4000 | 4000 | 3200 | 7200 | 5600 | |
| JB-05 | 30000 | 5000 | 5000 | 4000 | 9900 | 7000 | |
| JB-06 | 36000 | 6000 | 6000 | 4800 | 10800 | 8400 | |
| JB-08 | 48000 | 8000 | 8000 | 6400 | 14400 | 1120 | |
| JB-10 | 60000 | 10000 | 10000 | 8000 | 18000 | 14000 | |
| JB-12 | 72000 | 12000 | 12000 | 9600 | 21600 | 16800 | |
| JB-20 | 120000 | 20000 | 20000 | 16000 | 36000 | 28000 | |
| JB-30 | 180000 | 30000 | 30000 | 24000 | 54000 | 42000 | |
