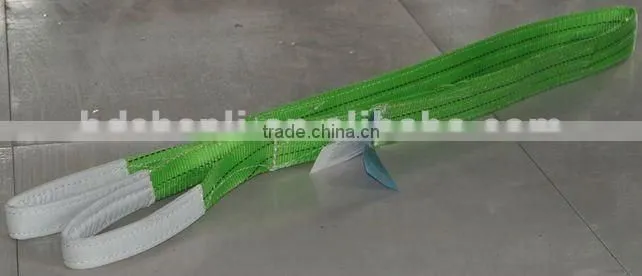

Help CenterJB-A Flat Lifting Webbing Sling
Related Products
-
2T Polyester Ratchet Straps Lifting SlingUS$ 0.5 - 30MOQ: 500 Pieces -
Red JA Round Webbing SlingNegotiableMOQ: 100 Sets
-
Flat Webbing Slings Hoisting BeltNegotiableMOQ: 500 Pieces
-
HIgh Quality Synthetic Fiber Webbing SlingUS$ 0.5 - 30MOQ: 500 Pieces
-
Webbing Sling EndlessUS$ 0.5 - 30MOQ: 500 Pieces
Specifications
1.Name: JB-A flat lifting webbing sling2.Material: polyester
3.Load capacity: 1-30t
4: Safety factor: 5:1, 6:1, 8:1

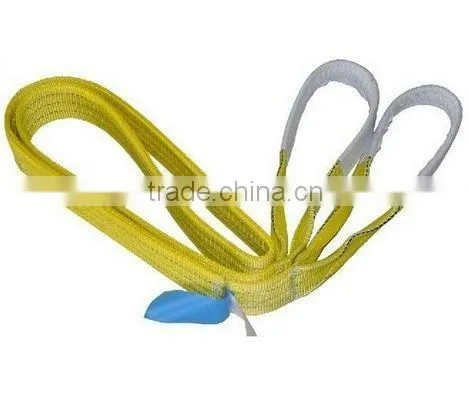

Webbing Sling for Lifting
1.Name: JB-A flat lifting webbing sling
2.Material: polyester
3.Load capacity: 1-30t
4:Safety factor: 5:1, 6:1, 8:1
Manufacture standard of webbing sling :International standard ISO4878
Proclaims the standard JB/T8521
Europe standard EN1492-1
Australian standard:AS1353
Length of webbing sling : according to the clints' requirements.
| Max.SWL=Mode Coefficient P*Rated Working Load Max.SWL of lifting method | |||||||
| Code | Color | Minimum Breaking Load (Kg) | Rated Working Load | UprightP=1 | ChokedP=0.8 | Angle 45 P=1.8 | Angle 90 P=1.4 |
| (Kg) | (Kg) | (Kg) | (Kg) | (Kg) | |||
| JB-A-01 | 6000 | 1000 | 1000 | 800 | 1800 | 1400 | |
| JB-A-02 | 12000 | 2000 | 2000 | 1600 | 3600 | 2800 | |
| JB-A-03 | 18000 | 3000 | 3000 | 2400 | 5400 | 4200 | |
| JB-A-04 | 24000 | 4000 | 4000 | 3200 | 7200 | 5600 | |
| JB-A-05 | 30000 | 5000 | 5000 | 4000 | 9900 | 7000 | |
| JB-A-06 | 36000 | 6000 | 6000 | 4800 | 10800 | 8400 | |
| JB-A-08 | 48000 | 8000 | 8000 | 6400 | 14400 | 1120 | |
| JB-A-10 | 60000 | 10000 | 10000 | 8000 | 18000 | 14000 | |
| JB-A-12 | 72000 | 12000 | 12000 | 9600 | 21600 | 16800 | |
| JB-A-20 | 120000 | 20000 | 20000 | 16000 | 36000 | 28000 | |
| JB-A-30 | 180000 | 30000 | 30000 | 24000 | 54000 | 42000 | |

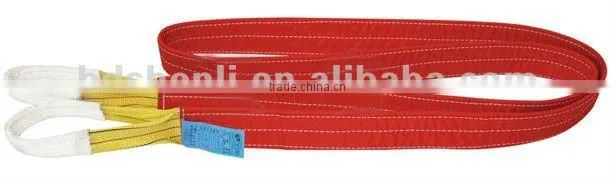

The details of webbing sling:
1.Webbing Slings are usually made up of polyester and nylon.
2.The cross section of webbing sling can be changed according to the lifted subjects, and decrease the possibility of damaging to the people beacuse rebounding has been reduced.
3.Usually the polyester sling is used in acidity condition while the nylon sling in alkalescence.
4.The safety coefficient is 6:1, according to clients' special needs,the safety coefficient has 5:1,7:1,8:1 for your choice.
5.The webbing sling can be made with single ply or made plies with protection cover or metal part at the end and so on.
6.The working load of webbing sling is diffientiated by colors according to international standard, easy to indentify.
Hebei Shenli Group, founded in 2000, is a large modern enterprise specialized in manufactureing rigging hardware,such as a variety of shackle,a series of hooks and all kinds of link rings etc.We have a group of engineers with rich experience.Our price is very competitive because we are manufactory, we are the source.
Should any kind of webbing slings be of interest to you, please let us know, We will be happy to give you details.
Thank you for your kindly attention!
