Help CenterSurface Finishing Portable Concretion Truss Screed
Related Products
-
Surface Finishing VTS-600A Vibratory Truss ScreedUS$ 500 - 1,000MOQ: 5 Pieces -
High Efficiency Concretion Power Truss ScreedUS$ 500 - 1,000MOQ: 5 Pieces
-
Surface Finishing Multiquip Truss ScreedUS$ 500 - 1,000MOQ: 5 Pieces
-
Surface Finishing Concreting Low Investment Truss ScreedUS$ 200 - 1,000MOQ: 5 Pieces
-
New Model High Frequency Vibratory Truss ScreedUS$ 100 - 500MOQ: 10 Pieces
Specifications
1)concretion truss screed2)high streth and light weight aluminum truss
3)fast connection system
concretion truss screed
FEATURES:

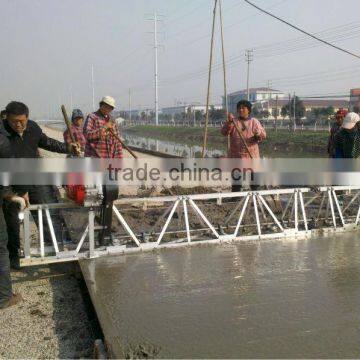

Concrete vibratory truss screed is mostly used to pave vibrating impact the concrete surface,bridge concrete surface,large packing slurry and other large of factory soncrete surface,This is desighed with exact paving system,suitable and perfect for large concrete surfaces,the max depth of impaction can be up to 20 centimeters
1) Lightweight, high strength aluminum truss screed
2) Fast connect system for assembly without special tools
3) One side winches for one person operation
Specification:
Model | VTS-600 |
Power section | HP 30 |
Length m | 3.1 |
Beam width mm | 355 |
Height mm | 475 |
Weight kg | 92 |
Engine type | Honda GX270 |
Max. output kw | 7 |
Max. speed rpm | 3600 |
Fuel Tank liter | 2.9(4.0) 3.0(4.0) |
Max. speed rpm | 3600 3600 |
Fuel Tank liter (gal) | 6 |
Center section | HC 15 |
Length m | 1.5 |
Beam width mm | 355 |
Height mm | 475 |
Weight kg | 26 |
End section | HE 15 |
Length m | 1.5 |
Beam width mm | 355 |
Height mm | 475 |
Weight kg | 30 |
OUR OFFICE BUILDING
OUR PLANT
BAUMA FAIR:
OUR CERTIFICATE
