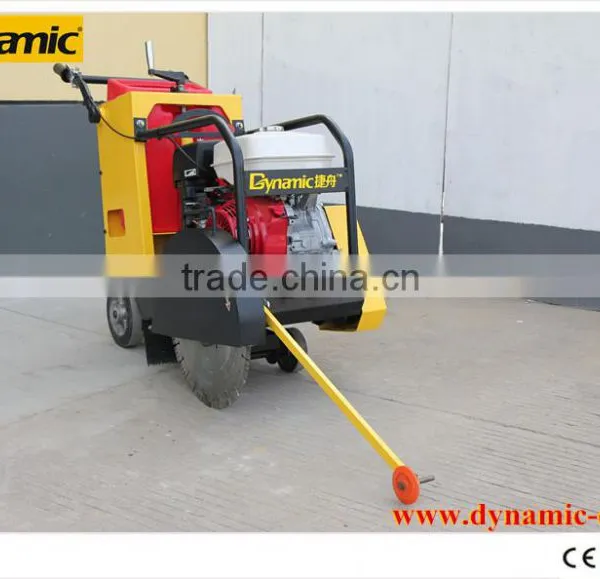

HOT SALE high performance concreting joint cutter machine
- 100 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A
- Jining Tengyu hand push type gasoline cutting machine for concrete pavement slit machine
- Concrete road cutting machine, cattle farm with engraving machine, cattle farm with engraving machine manufacturers supply ultra-low prices
- LIVTER Industrial wall grooving machine wall slotting machine wall cutting machine
- LIVTER Electric Cordless Wall Slotting Machine Mount Wall Slot Cutting Machine
- electric 220V road wall cutting machine
- Handheld Asphalt Road Cutter Gasoline Road Floor Concrete Saw Cutting Machine
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | DYNAMIC |
Model Number: | DFS-500 | Cutting Depth: | 180mm | Diameter of Blade: | 60mm |
Rotary Speed: | 3600rpm | Voltage: | 380v | Power(W): | 9.6(13)kw(hp) |
Weight: | 116kg | Dimension(L*W*H): | 1260mm*540mm*1035mm | Certification: | CE |
Power Source: | HONDA | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1)concreting joint cutter machine2)engine type:HONDA GX390
3)Max.cutting depth:180mm
4)Disk size:300-500mm
CONCRETING JOINT CUTTER MACHINE
Features:
This machine is used for cutting the expansion joint on concrete floor. Meanwhile, it can cut and groove all standard manufactures
of concrete, marble and granite. It is a necessary machine in the construction of road. Super-rigid box frame ensures straight cuts while resisting warping and vibration-prolongs saw life; extends blade life. Height adjustment handle with comfortable grip handles,
easy crank for raising/lowing cutting depth. Hinged front lift-up blade guard is designed to provide easy blade replacement; easy-remove, rustless poly water tank provides an optimum flow and volume of water to the blade. It uses sheet diamond, which has the
virtues of quick cutting speed, and even cut. Meanwhile, sheet diamond could cut the steal beams in concrete. It has simply, safety
construction, easy and flexible operations.
1.Ergonomics designed handle makes the operation more comfortable and speedy.
2.Special protective covering protects the engine perfectly and makes the transportation more safely.
3.The unique designed water tank provides adequate water supply and perfect cooling effect, no residual water and makes the maintenance easier.
4.Special blade cover makes the assembling and disassembling more easier.
5.Folding guide wheel for accurate cutting
6.Adjustable cutting depth assures the cutting working more precise and efficient.
Specification:
Model | DFS-400 |
Weight kg (lb) | 110(242) |
Dimension mm (in) | L1260(50)*W540(21)*H1035(41) |
Cutting width mm | 5-8 |
Max cutting depth mm | 120 |
Disk size mm | 300-400 |
Engine | Air-cooled, 4-cycle, Gasoline |
Type | Honda GX270 |
Max. output kw (hp) | 9.6(13) |
Max. speed rpm | 3600 |
Fuel Tank Liter (gal) | 6.5(1.71) |
Our Sevice:
1. We offer 1 years' warranty. And we will send you the free parts via EXPRESS such as DHL once the claim happen.
2.We will give you 5% discount for 1 piece as sample.
Introduction of our company:
Shanghai Jiezhou Engineering & Mechanism Co. Ltd(Shanghai DYNAMIC)has specialized in light construction machinery for nearly 30 years in China, mainly
produces tamping rammers, power trowels, plate compactors, concrete cutters,
screeds, concrete vibrators, polers and spare parts for the machines. Our products
have CE certificates, been certified by ISO9001 amd designed by our own R&D department.
We enjoy good reputation among our overseas customers and in domestic industry, thanks to
high quality, good aftersale service and strong sense of responsibility. The products ordered by
customers are produced by talented technicians and tested before sending out.
We are looking forward to establish business relationship with you. Please kindly reply which
product you are interested in,it will be a great pleasure to receive your inquiry for any products.
Details
PRODUCTION LINE:
OFFICE BUILDING
CERTIFICATION:
BAUMA FAIR:
Contact Us
- Shanghai Jiezhou Engineering & Mechanism Co., Ltd.
- Contact nameFranklin Wu
- Phone86-21-6710 7702
- AddressNo. 89, Gongyi Road
