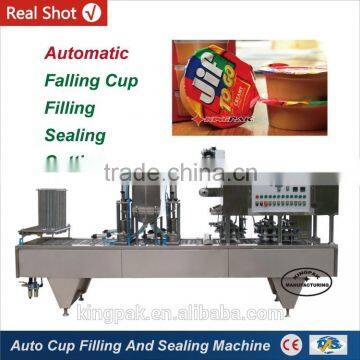

Help CenterBG60A Yogurt Plastic Cup Filling And Sealing Machine
Related Products
-
KIS900 Automatic Rotary Cup Filling Sealing MachineUS$ 3,500 - 6,500MOQ: 1 Set -
BG60A Pre-Film Mineral Water Cup Filling And Sealing MachineUS$ 5,000 - 9,800MOQ: 1 Set
-
BG60A Closed Aseptic Jelly Ice Plastic Cup Filling Sealing MachineUS$ 5,300 - 9,500MOQ: 1 Set
-
GF4/GF2 Plastic Cup Washing Filling And Sealing MachineUS$ 5,600 - 9,800MOQ: 1 Set
-
BG32 Automatic Continuous Plastic Cup Sealing MachineUS$ 1,500 - 4,500MOQ: 1 Set
Technical Parameters
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Model |
BG60A-4C |
BG60A-6C |
BG60A-8C |
BG60A-10C |
Output (cups/h) |
3000-4000 |
5000-6000 |
7000-8000 |
9000-10000 |
Filling Range |
20-500ml |
20-500ml |
20-500ml |
20-500ml |
Voltage |
AC 220V / 50Hz |
AC 220V / 50Hz |
AC 220V / 50Hz |
AC 220V / 50Hz |
Power |
3.5kw |
5kw |
6kw |
7.5kw |
Template |
4 cups 1 time |
6 cups 1 time |
8 cups 1 time |
10 cups 1 time |
Control System |
PLC / MCU |
|||
Capping Film |
Roll Film / Sheet Film (Premade Film) |
|||
Metering Methods |
Dosing Filling (liquid, paste, granule, powder) |
|||
Air Consumption |
0.6 m3/min |
0.7 m3/min |
0.8 m3/min |
0.9 m3/min |
Dimensions |
3300*710*1700mm |
3800*800*1700mm |
3900*900*1700mm |
4000*1000*1700mm |
Weight |
700kg |
800kg |
1000kg |
1200kg |
Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Basic Functions
> Automatic cup filling and sealing machine is mainly used for cups, bowls, boxes, barrels and containers specially shaped filling and sealing, no special requirements on the material, liquid, paste, granules, so you can mix materials.
- Applications
> Suitable for jelly, juice, jam, yogurt, ice cream, salad, pudding, condiments, beverages, chocolate, mineral water and other food filling and sealing.

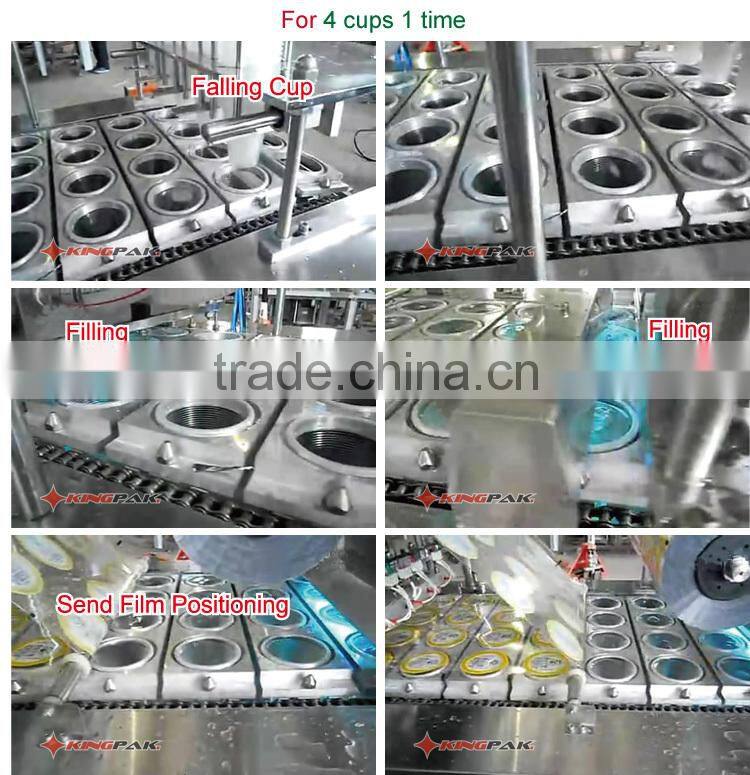

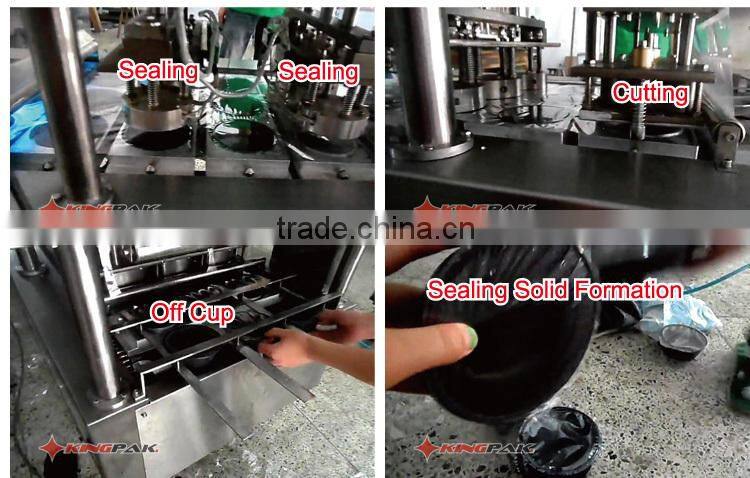

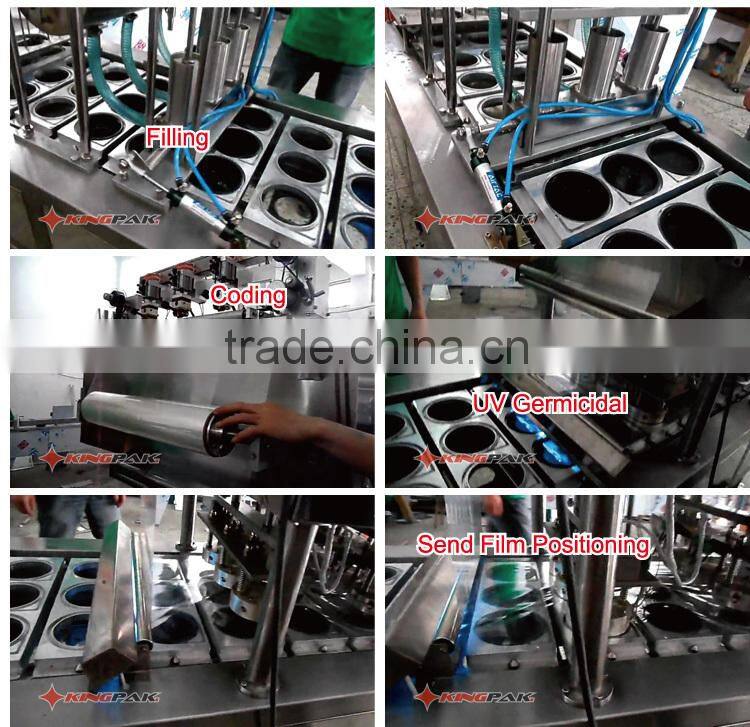

No. |
Roll Film Function |
Sheet Film Function |
1 |

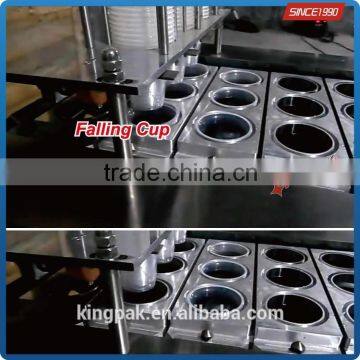

Automatic Falling Cup |
Automatic Falling Cup |
2 |
Automatic washing cups (Optional) |
Automatic washing cups (Optional) |
3 |
Automatic Filling |
Automatic Filling |
4 |

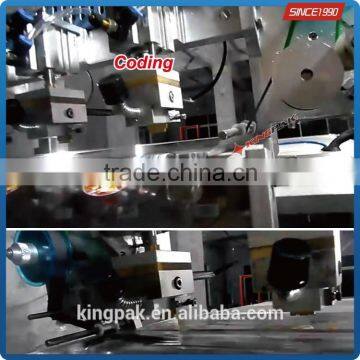

Coding Device |
x |
5 |

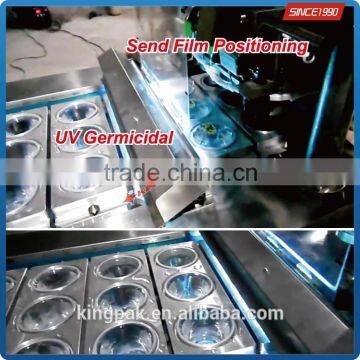

UV Germicidal (Optional) |
UV Germicidal (Optional) |
6 |
Optical Positioning |
Automatic Put Cover |
7 |

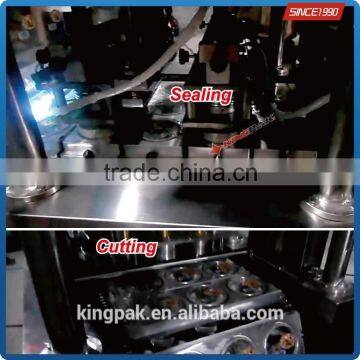

Two Sealing |
Two Sealing |
8 |
Automatic Cut Film |
x |
9 |
Waste Film Recycling |
x |
10 |
Array Off Cup |
Array Off Cup |

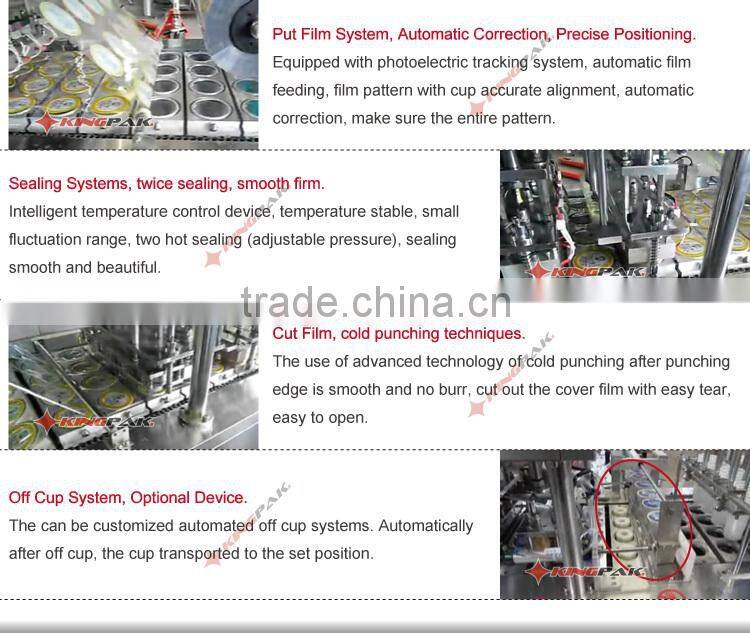

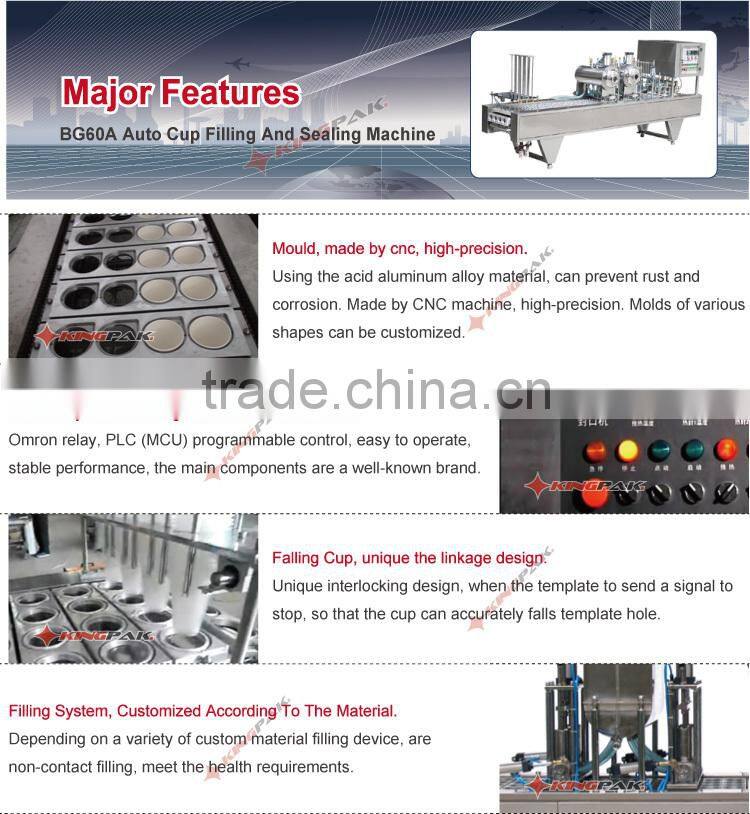

Performance Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

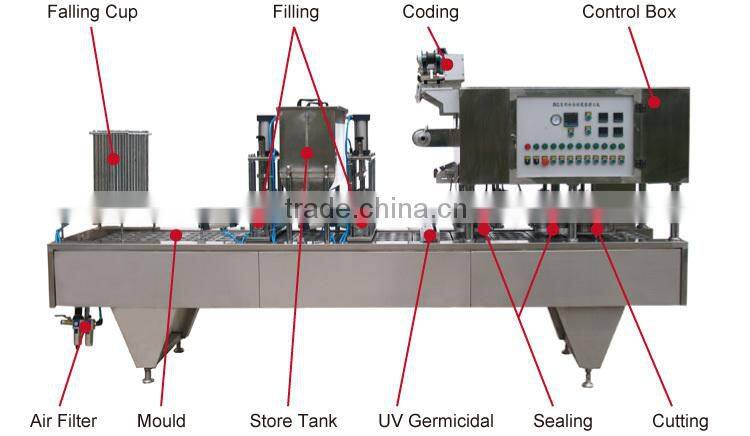

Whole Show - Round Display Overall Product
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

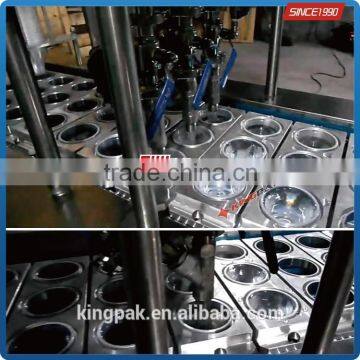

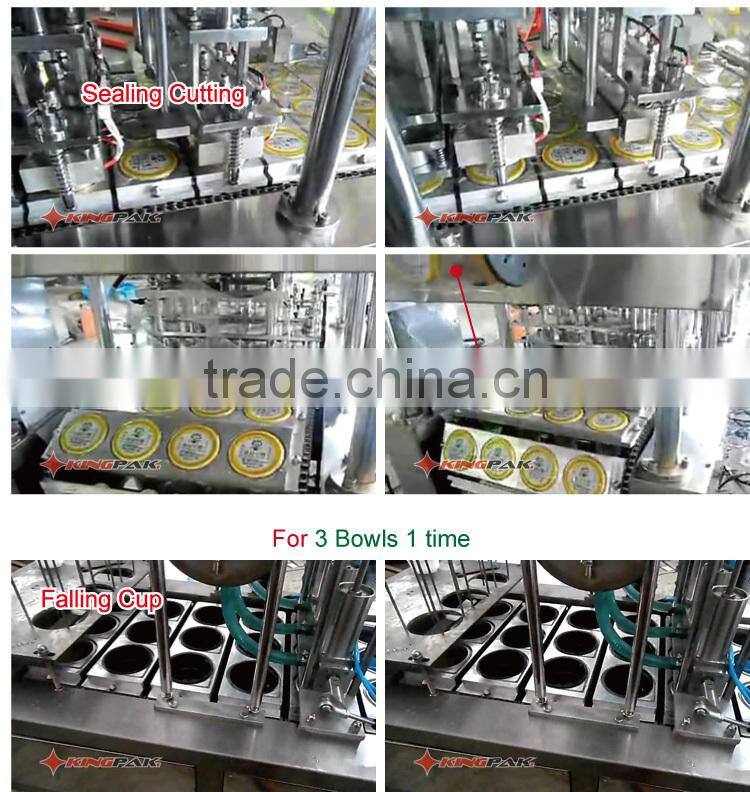

Details Show - Humanized Design Refinement Process
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
