Help CenterSolid Ink Date Coding Machine
Related Products
Specifications
Solid ink date coding machine can quickly bags in a variety of print production date.Coding Speed:120pcs/min
Overview
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• Solid ink date coding machine with automatic sub-sheets, automatic counting, random orientation, the number of pre-set printing, writing clear, colors, print speed, instant printing and instant dry, the loss is small.
• Solid date coding machine works in the solid ink printing ink wheel in contact with the melt, so that tablets of the word to bring ink printed on the need to print the object.
• Printing position by the electronic control, can be adjusted. Printing operation and count using photoelectric switch control, and set the number of prints. Special clutch, sensitive, accurate and stable.
• Solid ink date coding machine uses solid ink is environmentally friendly products, the use does not produce toxic substances, which can meet pharmaceutical and food packaging coding needs.
Scope
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• Solid ink wheel code printer can be paper, cardboard, film, foil and other materials printed labels, production date, batch number, weight and so on. This machine is widely used in food, beverage, pharmaceutical, cosmetics and other industries coding operations.
Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Solid Ink Date Coding Machine |
Model |
KY400A (Paint Case) |
Supply Voltage |
220V/50-60HZ |
Power |
180W |
Ink wheel size |
35×32mm / 35×16mm |
Coding Speed |
120-300pcs/min |
To be printed size |

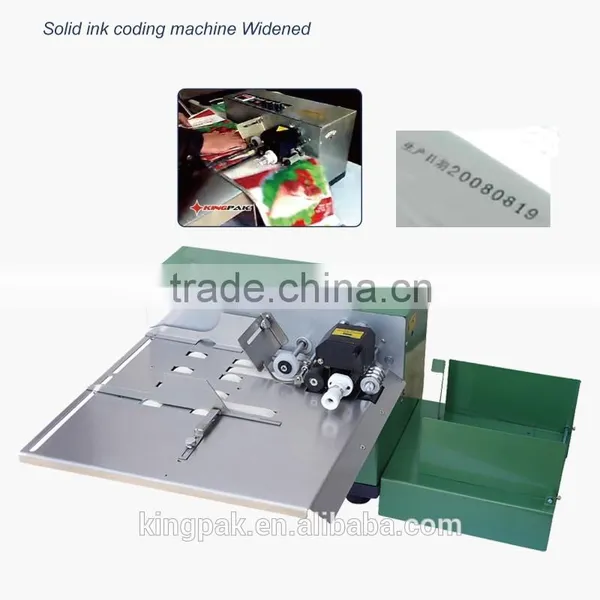

L:55-500mm W:30-196mm (Widened can reach 300mm) |
Font Size |
2×1.5(8PT) / 2×2.5(9PT) / 3×3(10.5PT) / 4×2.5(18PT) |
Number of print |
T-type (10.5PT): 11 lines (up to 10 characters per line) R-type (10.5PT): 8 lines (up to 8 characters per line) |
Print Position |
Unilateral, 60-250mm be adjusted within |
Weight |
23kg |
Machine size |
440*345*300mm |
Note: Fonts direction of the same or opposite direction of feed is called the T-word, font direction perpendicular to the feed direction is called R-word.
Video clip of Solid Ink Wheel date coding machine
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Consumables for Solid Ink date coding machine
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
We offer variety of coloers and size of the ink wheel with the low price for the convenience of customers.
