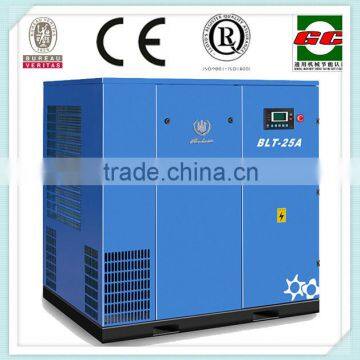

Atlas VFC 25HP Electric Belt Driven Screw Air Compressor

Name: Atlas VFC 25HP Electric Belt Driven Screw Air Compressor
Brand: Bolaite (Atlas Copco)
SKU: 125611645
Availability: InStock

US$ 2,500 - 50,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Screw

Configuration:

Stationary

Shanghai Desirable Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Screw

Configuration Stationary

Power Source AC Power

Lubrication Style Lubricated

Mute Other, Low Noise

Place of Origin Shanghai, China

Brand Name Bolaite (Atlas Copco)

Model Number BLT-25A VFC

Voltage 220V/380V/400V/415V/440V/ and others

Dimension(L*W*H) 1100*865*1380

Weight 505

Certification ISO,CE,ENERGY SAVING CERTIFICATE

Warranty one year for the whole machine

After-sales Service Provided Overseas service center available

Specifications

Atlas VFC 25HP Electric Belt Driven Screw Air Compressor :
1>CE Approved
2>Atlas copco Air End
3>Double screws
4>Cheap

BLT-25A VFC Atlas VFC 25HP Electric Belt Driven Screw Air Compressor :

1. Air compressor features:

2. Air compressor speicifications:

Model			BLT-25A VFC /18.5KW
Air discharge Pressure discharge	M³/min/Mpa		1.28-2.25/0.7
			1.2-2.15/0.8
			1.08-1.95/1.0
			0.29-1.6/1.3
No of compression stage			Single stage compression
Cooling model			A-Air cooling W-Water cooling
Discharge temperature	°C		≤The environment temperature +15°C(Air cooling) ≤40°C(Water cooling)
Noise Level	dB(A)		64±2
Transmission mode			Belt transmission
Power supply	V/Ph/Hz		As your inquiry
Motor power	kw		18.5
Stating model			Y- Transformation Start
External dimensions	L	mm	1100
	W	mm	865
	H	mm	1380
Weight	Kg		505
Exhaust pipe diameter	inch		G 1 ”
