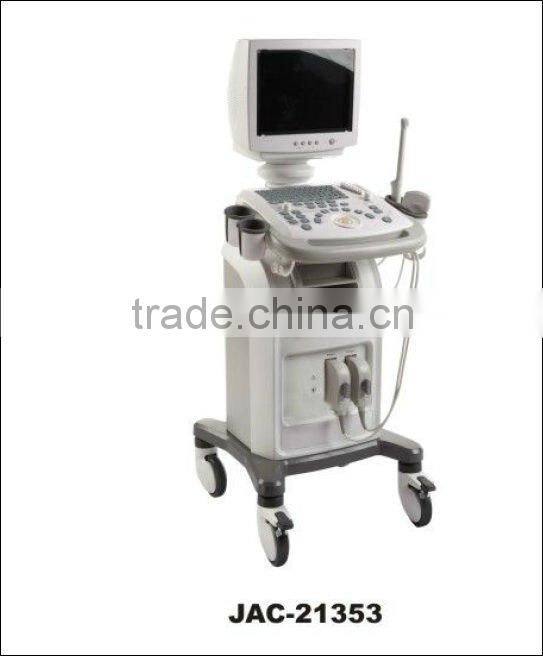

CE Marked Trolley Ultrasound Scanner
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Portable Ultrasonic Diagnostic Devices
Brand Name:
Longfian
Model Number:
JAC-21353
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Beijing Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Portable Ultrasonic Diagnostic Devices
Brand Name
Longfian
Model Number
JAC-21353
Place of Origin
Hebei, China
FEATURES:
Backlight silica gel PBT keyboard, easy for darkroom operation
Zoom function adjustment in real time and freezing status
Large capacity cine-loop and image permanent storage function
High sensitivity 14 inch screen for progressive scanning
Double activated socket, probe electronically shifting
SPECIFICATION:
Application: Abdomen, Obstetrics and superficies examination, etc.
Scanning Mode: convex, linear, micro convex
Display Mode: B, 2B, 4B, B/M, M
Smart 8 segment TGC Adjustment
Puncture guide
Port: PAL-D, RS-232, USB, VGA
TECHNICAL DATA:
Scanning mode: convex/micro convex/linear
Focus: RDA Real-time Dynamic Aperture, 4 waveforms focusing and acoustical lens focusing
Depth: ≥240mm(3.5MHz)
Scanning range: 3.5MHz convex≥600 , 6.5MHz convex≥1100
Frame frequency: maximum 60 frames/seconds
Sensitivity: landscape orientation:≤2mm length wise direction≤1mm
Near field blind zone:≤3mm
Image processing: controlled frame correlation, gamma correction, edge enhancement, image flatness, image denoiser, TGC, image conversion for up/down, right/left.
Body mark: ≥65 types
Measurement range: distance, perimeter, area, volume, time, heart rate, slope
BPD, FL, AC, HC, CRL, GS for calculating gestational age, weight,
EDD, LMP for calculating EDD
Cine-loop: Manual and auto cine-loop function
Standard configurations: C3.5/R60 convex probe
OPTIONAL:
L6.5/R10 high density frequency conversion vaginal probe
L7.5M/L40 high density frequency conversion linear probe
Video printer, puncture guide
