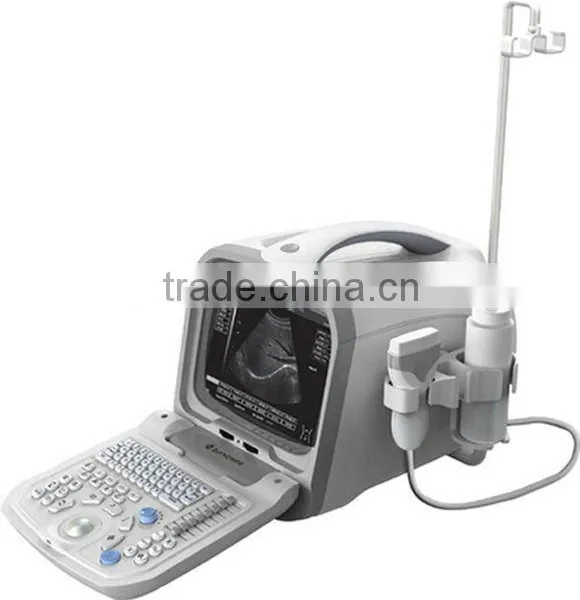

Help CenterPortable Digital Ultrasound Scanner Equipment
Related Products
-
Digital Ultrasound ScannerNegotiableMOQ: 6 Pieces -
Digital Portable Ultrasound ScannerNegotiableMOQ: 1 Piece
-
New Designed Medical Portable Digital Ultrasound ScannerNegotiableMOQ: 5 Units
-
Full Medical Digital Ultrasound Scanner MachineNegotiableMOQ: 10 Pieces
-
Medical Trolley Ultrasound Scanner MachineNegotiableMOQ: 1 Unit
General Descriptions
Imaging mode:B,B+B,B+M,M
Gray scale:256
Display:10" non-interlaced
Transducer frequency:2.5~10MHz
Transducer connector:1(standard),2(optional)
Dynamic imaging technology: Digital Beam-forming(DBF)
Dynamic Receiving Focusing (DRF)
Up to 16 zone transmitting focusing
Dynamic Frequency Scan (DFS)
Real-time Dynamic Aperture(DRA)
Scanning angle:from 67 to 120 degree(depending on transducers)
Scanning depth(mm):from 21.6 to 248(depending on transducers)
Imaging Processing
Pre-processing: dynamic range
edge enhancement
frame correlation
4-segment TGC adjustment
IP (Image Process)
acoustic power adjustment
high resolution/high frame rate select
Post-processing: gray map
left-right reverse
up-down reverse
Functions:
Cine loop:128-frame cine loop memory
Storage medica:Internal flash and USB
Zoom:panoramic in real-time and frozen condition
Built-in image archive: permanent storage up to 90 images
Measurement&Calculation
B-mode:distance,circumference,area,volume,angle,ratio,histogram,profile,5%
M-mode:distance,time,velocity,heart rate(2 cycles)
Software packages: abdomen,gynecology,obstetrics,orthopedics
Others
Peripheral port: Video output 1
USB port 1
VGA output port 1
DICOM3.0 1(optional)
Power supply: 100-240VAC±10%,50Hz/60Hz
Dimensions:360mm(W)x320mm(L)x270mm(H)
Net weight:9.5Kg
Stamdard Configurations
DP-2200 main unit
10" non-interlaced monitor
One transducer connector
128-frame CINE loop
90-frame image storage
