Medical Oxygen concentrator 3L, 5L, 8L and 10L
Longfian Oxygen concentrator adopts international advanced oil-free lubricate air compressor technology and gas separation technology , it uses PSA gas separation to separates oxygen from air, improving the concentration up to 94% and supplying oxygen continuously. It is able to relieve human discomfort that cause by work stress or lack of oxygen.
This product has numbers of feature, such as long continues work time, simple operation, easy to use, long lifetime, low power consumption, low noise, etc. Its operation cost is very low and even 1 kilowatt hour is sufficient for up to 3 hours continuous working, so it is perfect for family healthcare using, and its compact and small-sized design is able to provide you the ideal portable healthcare equipment for outdoor travel.
The principle of oxygen concentrator: adopting micro, high efficient, low cost oil-free compressor, compressing the air to a given pressure, performing adsorption and desorption through high-quality intake sieve bed under normal temperature, and generating oxygen to patient.
Technical Parameters

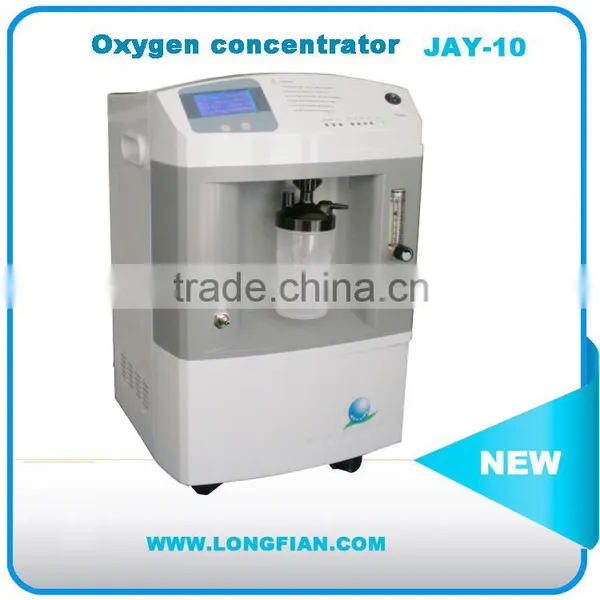

Model |
JAY-10 |
Flow rate |
0-10L/min |
Oxygen concentration |
1-9L/min: 93%± 3%; 10L/min: 90% ± 2% |
Outlet pressure |
0.04-0.07Mpa |
Noise level |
≤50dB |
Power |
AC220V (±10%), 50/60±1Hz; AC110V (±10%), 50/60Hz (±1Hz) |
Power consumption |
≤550W |
LCD display |
Starting times, operating pressure, present working time, accumulated working time, preset time from 10mins to 40hours |
Alarm |
Power failure alarm; high/low pressure alarm |
Net weight |
28kg |
Size |
365×375×600mm |
Optional
1. Nebulizer (Atomizer)
2. Low concentration alarm: when oxygen concentration is 82% or above, the blue light will be on; when the oxygen concentration is blow 82%, the red light will be on.
3. Maintenance alarm: alarm for maintenance after 3000 hours' operation.
4. High temperature alarm: alarm for high temperature when the internal system temperature is above 50°C
5. Pulse oximeter: fingertip pulse oximeter is available for monitoring patient' oxygen saturation on site.
6. Small LCD display: showing accumulated time, present working time and preset time.
7. Dual flow configuration.
For more detailes,please refer to https://img13.fr-trading.com/productlist.html
Longfian holds the concepts of "All work for customers" and "Customer satisfaction is premise of our progress". These service concepts gradually penetrate to every department in our company, including sales department, production department, quality control department, engineering department, R&D center, etc.
When receiving customers' requirements, we will give replies as soon as possible. If the customers are not satisfied with the replies, we will arrange our engineers to communicate with them directly until they are satisfied.
Warranty Period
A: 15 months for the whole unit
B: 24 months for compressor
Pre-sales Service
1. We will communicate with customers to know about their requirements.
2. Necessary samples and technical documents will be offered to customers.
3. We will guide customers to use our oxygen concentrator correctly and safely.
4. Our company also provides other services such as packing & designing as well as oxygen concentrator knowledge training.
5. OEM service is available.
In-sales Service
1. Delivery time is within 3-20 working days (according to specific order quantity) upon receiving the advance payment.
After-sale Service
1. Inquire of customers about the working conditions of their oxygen concentrators and help them settle problems in time.
2. Estimate and learn about customers' further requirements.
3. Do quarterly satisfaction survey.
4. Whenever receiving a complaint, we will give a reply within 24 hours and hand in relevant reports dealing with the complaint within a week.
5. Our product warranty period is 15 months from the day when you receive the goods. We can provide free spare parts under warranty time.
Other Services
1. We offer face to face free training service if customers come to our company.
2. Every year we take part in 5 to 15 exhibitions around the world. Welcome to visit our booth and let us know your problems, we will try our best to help you solve them soon.
