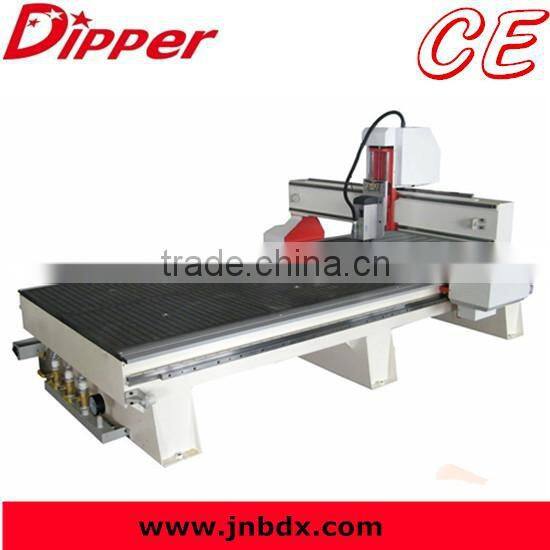

famous brand high quality and accuracy NC studio control system cnc routerBDX-1325

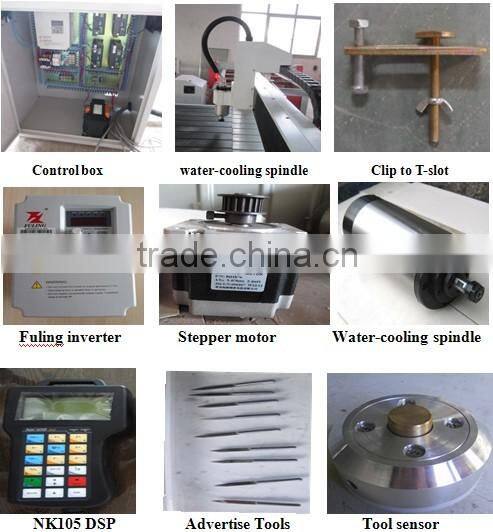

Machine parts of cnc router:
Samples Show of cnc router:
Specifications for cnc router:
1.CNC Router machine adopts import liner square guide,double four ball slider,so it can bear big gravity,move steady,ghigh accuracy,longevity,import ball with high accuracy,and precision knife,so it is suitable for batch processing kinds of materials.
2.CNC Router machine can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
3.CNC Router machine is wholly break away from remote operation USB connector DSP operating system.Lever operation so it is easily to operate,humanity design and adopts special smart budget law so it can make the motor play full potential.Realize high speed processing.curve and straight line synchronize,the curve line is more perfect.And do not occupy computer memory so it can realize cutting spindle’s start-stop system.
4.CNC Router machine has Six vacuum worktables,so it can absorb different size panel.vacuum pump can select import brand without oil so it can solve the problem when during winter the water circulation vacuum pump is difficult to change and add water.
5.CNC router machine use high speed drive stepper motor and drive implement.Y axis adopts double motor drive,so it can make the high speed at 25 meters /minute operate with the cutting spindle so the carving speed is quickly.
Application material for cnc router:
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Technical parameter for cnc router:
Model |
BDX-1325 |
X,Y working area |
1300*2500mm |
Z working area |
80mm |
Table size |
1400*1900mm |
Max travel speed |
3m-5m/min |
Max engraving speed |
2m-4m/min |
Resolution ratio |
0.005mm |
Reposition accuracy |
0.05mm |
Max feeding height |
110mm |
Command |
Gcode*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
Power(not include the spindle) |
3kw |
Power |
AC220V/50Hz |
Main axle power rate |
1.5kw |
Main axle rotating speed |
0-24000rpm/min |
Work mode |
stepper |
Machine weight |
900kg |
FAQ:
Welcome to visit our factory:
Contact Us:
Please feel free to contact us,we will reply within 24h!
We want to know:
1 How much the spindle power you need
2 What materials do you need to process
3 The size and thickness of your material
