Specifications
Detailed info of cnc router 1200*1200:1.CE
2:1.5KW water cooling spindle
3:stepper driver and motor
4.fuling inverter

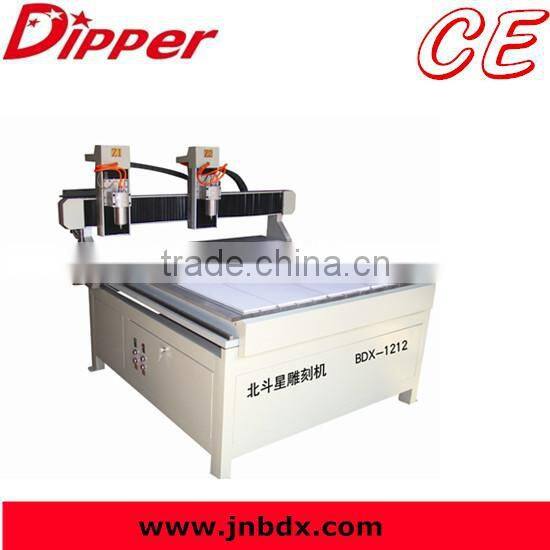

cnc router 1212 vaccum hot 1200x1200 1200*2400mm,good quality woodworking cnc router 1224,cnc router nesting woodworking
1)mini cnc router adopts import liner square guide,double four ball slider,so cnc wood router can bear big
gravity,move steady,high accuracy,longevity,import ball with high accuracy,and precision knife,so cnc
router priceis suitable for batch processing kinds of materials.
2)mini cnc router can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate
and so on.
3)mini cnc router use high speed drive stepper motor and drive implement.Y axis adopts double
motor drive,so cnc wood router pricecan make the high speed at 25 meters /minute operate
with the cutting spindle so the carving speed is quickly.
Applicable Industry And Material: 3D Laser Wood Engraving Machine
1.Marble, granite, tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber,
ceramic, glass and other non-metal materials, etc.
2.Sticker cutting and engraving, Marble engraving industry, advertisement, gift packing, shoes,
garments, toys, model, decoration, arts and crafts, paper industry, etc.
| Products Name |
cnc router 1212 vaccum hot 1200x1200 1200*2400mm,good quality woodworking cnc router 1224,cnc router nesting woodworking |
| Model | BDX-1212 |
| Body structure |
steel structure |
| working table | T-slot |
| working accuracy |
±0.05mm |
| CNC or Not | Yes |
| Repositioning accuracy | ±0.05mm |
| Traveling speed | >25m/min |
| spindle | 1.5kw water cooled spindle |
| Spindle rotary speed | 0-24000rpm/min |
| Brand Name | Dipper |
| control system | NC studio |
| Drive and moter | stepper motor |
| Certification | CE, ISO |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Transmission mode | Taiwan HIWIN square guide rail for XYZ axis,gear wheel for XY axis,ball screw for Z axis |
| Working voltage | AC380/50HZ |
|
Max.power consumption (whitout splind) |
1840w |
| Command language | G-code,*u00,*mmg,*plt |
| Software | Type3 or Wentai |
| Cutters | 10 pieces with diameter of 6 and 12.7 |
| Oiling system | manually oiling |
| interface | USB |
Accessories of mini cnc router:
Looking For Agents To Distribute Our Products With Laser Engraving Machine Equipment From China For The Small Business
More similar products of wood engraving machine:
3D Laser Wood Engraving Machine
| Laser Engraving Machine | Model Number | Working Area | Details |
| BDX-1212 | 1200x1200mm | Click to view | |
| BDX-1218 | 1200x1800mm | Click to view | |
| BDX-1325 | 1300x2500mm | Click to view | |
| BDX-1530 | 1500x3000mm | Click to view | |
Please tell me your size and material, we can also individually customized for you! | |||
Looking For Agents To Distribute Our Products From China For The Small Business Industry Equipment Laser Engraving Machines
Package Process:
Looking For Agents To Distribute Our Products From China For The Small Business Industry Equipment Laser Engraving Machines
Why choose Bigger Dipper ?
1. One year warranty under normal use and we supply maintenance for life for free
2. 24 hours technical support by phone, email, skype, msn or remote
4. Complete and serious Quality Control System & good service after sales.
5. ISO9001 certification and CE certification
1. Do you have MOQ limited ?
MOQ is 1 set.
2.OEM or ODM is available?
Yes,OEM and ODM is available
3. What is the delivery time ?
7-15 working days since received the payment .
4. What is your payment term ?
T/T, L/C, Paypal, Westerunion.
5. Which kinds of transportation method for order ?
By shipping express( DHL, UPS, FEDEX) , AIR, or SEA .
