2014 most popular best quality factory supply crystal stone machines
- 50 Set / Sets per Month
- QINGDAO
- Credit Card
You May Like
-
discount price high quality stone cnc router
-
granite engraving tools heavy structure 5.5kw spindle DSP control system
-
Professional manufacture High speed BDXS-1325 water jet marble cutting machine
-
cnc router stone cutting machine
-
heavy duty Christma gift stone cutting machine for sale
-
high intelligent stone cnc router machine with competitive price made in china
Product Details
| Condition | New | Type | Stone Engraving Machine | |
| Use | Marble | Production Capacity | 50 sets per month | |
| Place of Origin | Shandong, China | Brand Name | Dipper | |
| Model Number | BDXS-1325 | Voltage | 220V | |
| Power(W) | 1480W | Dimension(L*W*H) | 1300*2500mm | |
| Weight | 1000kg | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

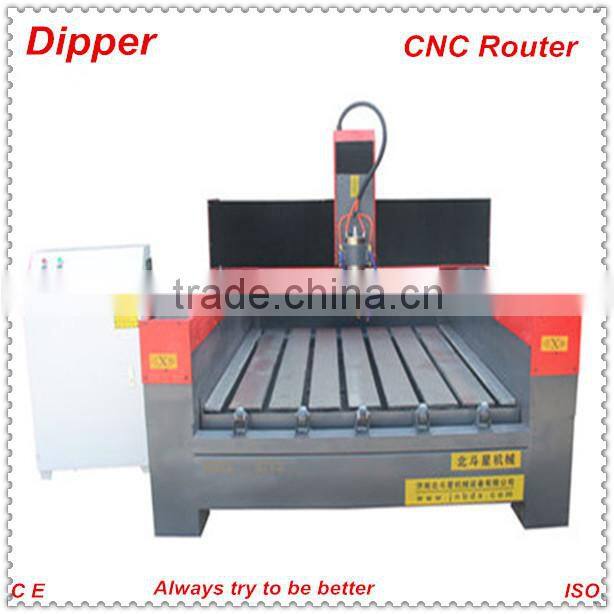

2014 most popular best quality factory supply crystal stone machines
Production description of crystal stone machines :
1)Industrial production model,heavy all-steel welded,temperating aging treatment,solid and can not change the shape.
2)crystal stone machines adopts Taiwan liner guide which is contact wcrystal stone machinesh the bearing surface,so long time use the precision will be high.
3)Germany double-nut automatic anti-backlash ball screw.
4)High speed driver,so crystal stone machines has high speed and power.
5)Dust-protected oiling structure,so crystal stone machines make sure the machine running long time.
6)Break point and cutting continued carving,so crystal stone machines can engrave at any angle.
7)crystal stone machines can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
8)High power AC water cooling spindle,so crystal stone machines can process hard material efficiently.
Technical parameter:
Model | BDXS-90 | BDXS-12 | BDXS-15 | BDXS-18 |
X working area | 900 | 1200 | 1500 | 1800 |
Y working area | 1200-1500mm | 1200-1500mm | 1200-3000mm | 1200-3000mm |
Table size | 1080-1800mm | 1380-3000mm | 1680-3500mm | 1980-3500mm |
Max area of Z axis | 300mm | 300mm | 300mm | 300mm |
Highest running speed | 12m/min | 12m/min | 12m/min | 12m/min |
Highest engraving speed | 8m/min | 8m/min | 8m/min | 8m/min |
Precision | 0.005mm | 0.005mm | 0.005mm | 0.005mm |
Max feeding height | 350mm | 350mm | 350mm | 350mm |
Spindle power | 4.5kw/main axis | 4.5kw/main axis | 4.5kw/main axis | 4.5kw/main axis |
Rotated speed of the spindle | 0-24000rpm/min | 0-24000rpm/min | 0-24000rpm/min | 0-24000rpm/min |
Working model | stepper | stepper | stepper | stepper |
Machine weight | 1000kg | 1300kg | 1600kg | 2000kg |

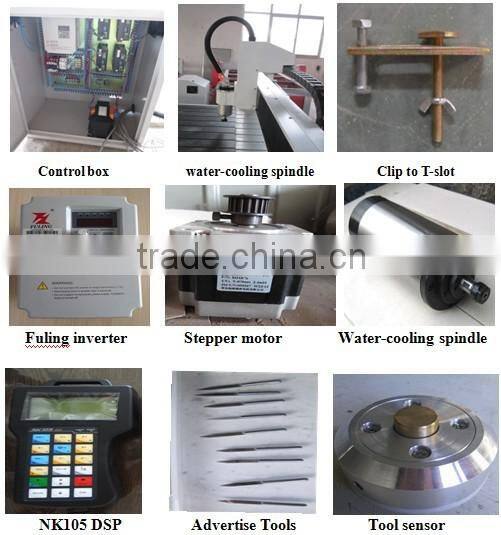

Machinery parts of crystal stone machines :
Applicable industries:
crystal stone machines is used for carving marble,granstone cnc router machinee,glass,muyu-stone and so on hard materials.
Sample of crystal stone machines :
FAQ of price of crystal stone machines :
After sales-service of crystal stone machines :
1)one year free warranty under normal use and we give miantenance for 18 months
2) First class engineers give 24hours service on Internet and Telephone, free instructions and
problem solving.
3) Free training to make sure you master the operating of price of crystal stone machines .
other machine except price of crystal stone machines :

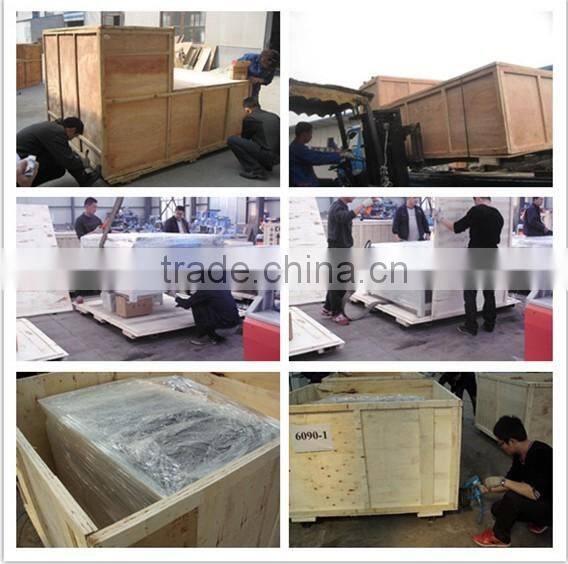

Package Process of crystal stone machines :
our factory:
