Specifications
stone cutting and polishing machine:1 cnc router for stone
2 DSP control system
3 factory supply
4 CE,ISO standard

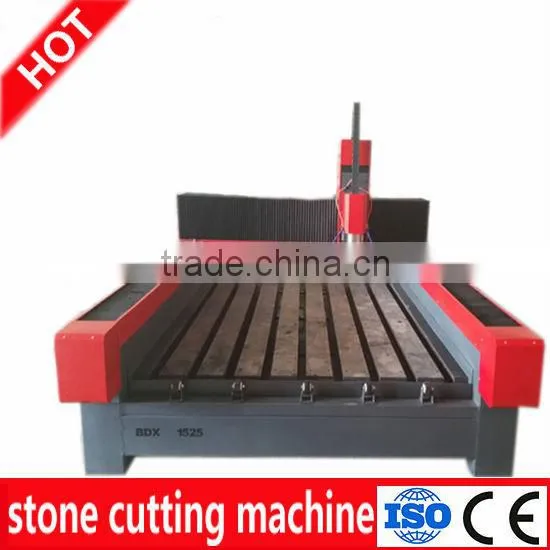

Heavy Duty cheap price high quality stone cutting
and polishing machine

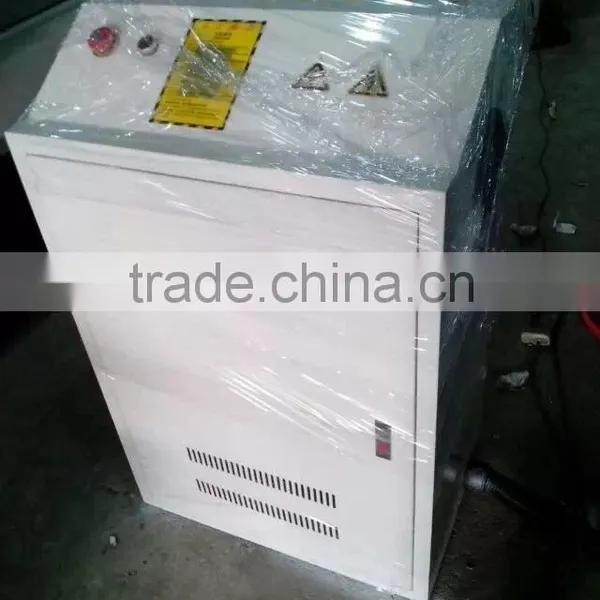

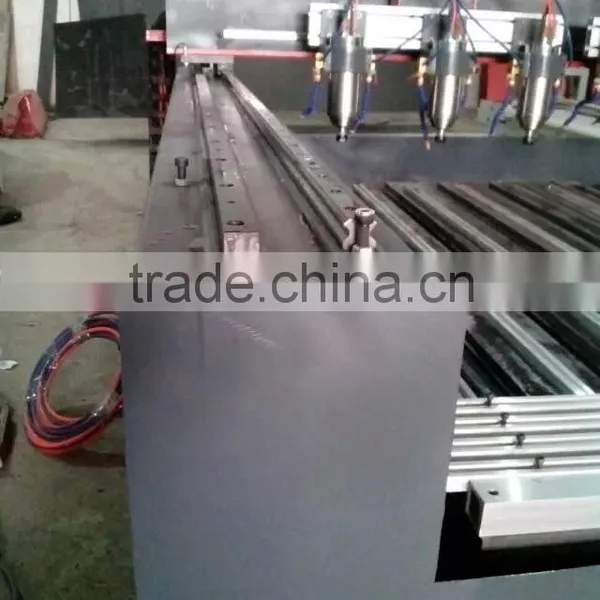

Machine parts of stone cutting and polishing machine:
Samples of stone cutting and polishing machine:
Performance feature of stone cutting and polishing machine:
1)stone cutting and polishing machine has Industrial production model,heavy all-steel welded,temperating aging treatment,solid and can not change the shape.
2) stone cutting and polishing machine adopts Taiwan liner guide which is contact with the bearing surface,so long time use the precision will be high.
3) stone cutting machine adopts Germany double-nut automatic anti-backlash ball screw.
4) stone cutting and polishing machine has High speed driver,so it has high speed and power.
5) stone cutting and polishing machine adopts Dust-protected oiling structure,so it make sure the machine running long time.
6)stone cutting and polishing machine used water jet cutting machine has Break point and cutting continued carving,so it can engrave at any angle.
7) stone cutting and polishing machine can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
8) stone cutting and polishing machine has High power AC water cooling spindle,so it can process hard material efficiently.
Applicable industries stone cutting and polishing machine:
stone cutting and polishing machine is used for carving marble,granite,glass,muyu-stone and so on hard materials.
Technical parameter of stone cutting and polishing machine:
Model |
BDX-S90 |
BDX-S12 |
BDX-S15 |
BDX-S18 |
X working area |
900 |
1200 |
1500 |
1800 |
Y working area |
1200-1500mm |
1200-1500mm |
1200-3000mm |
1200-3000mm |
Table size |
1080-1800mm |
1380-3000mm |
1680-3500mm |
1980-3500mm |
Max area of Z axis |
300mm |
300mm |
300mm |
300mm |
Highest running speed |
12m/min |
12m/min |
12m/min |
12m/min |
Highest engraving speed |
8m/min |
8m/min |
8m/min |
8m/min |
Precision |
0.005mm |
0.005mm |
0.005mm |
0.005mm |
Max feeding height |
350mm |
350mm |
350mm |
350mm |
Spindle power |
5.5kw/main axis |
5.5kw/main axis |
5.5kw/main axis |
5.5kw/main axis |
Rotated speed of the spindle |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
Working model |
stepper |
stepper |
stepper |
stepper |
Machine weight |
1000kg |
1300kg |
1600kg |
2000kg |
More products about cnc router:
If any further details you need, please contact us with "contact" buttom.
Please feel free to contact us,we will reply within 24h!
We want to know:
1 How much the spindle power you need
2 What materials do you need to process
3 The size and thickness of the materia
