Specifications
marble mosaic cutting machines:1 cnc router for stone
2 DSP control system
3 factory supply
4 CE,ISO

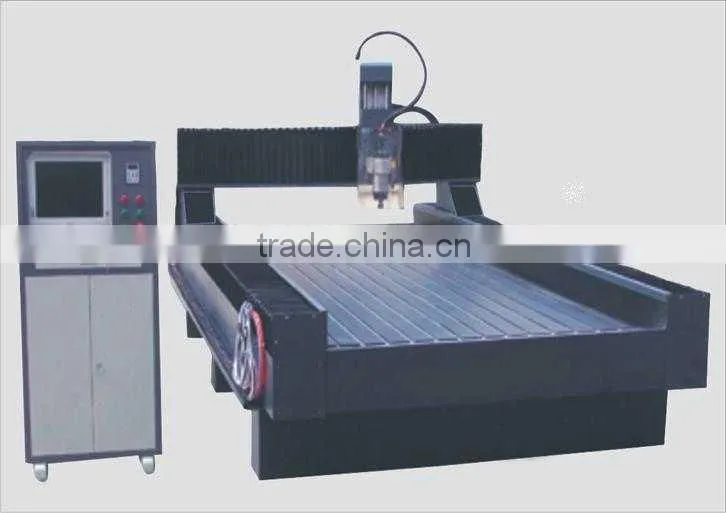

Fire sale BDXS-1325 marble mosaic cutting machines

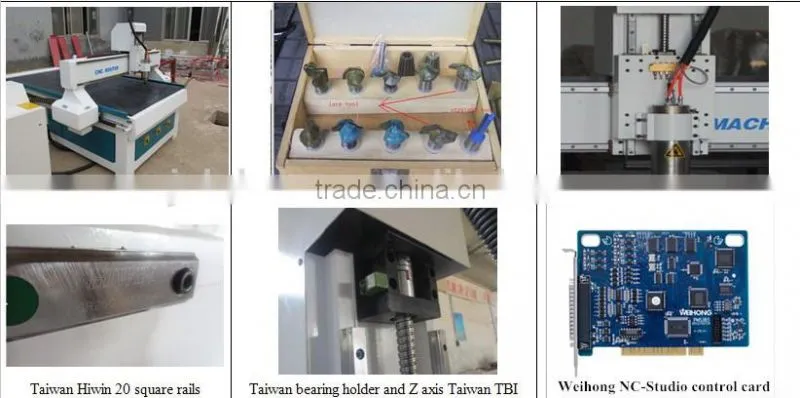

Machine parts of marble machine:

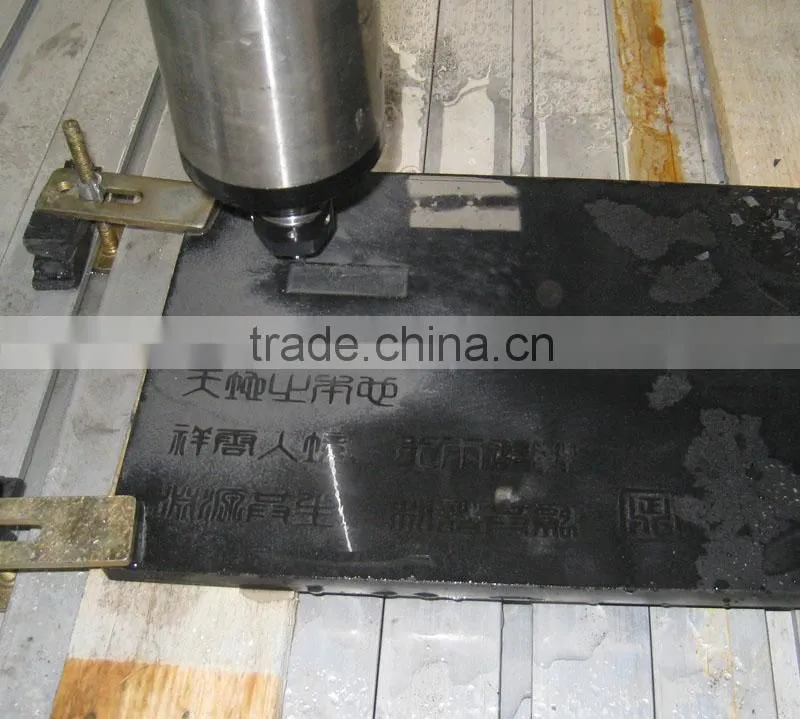

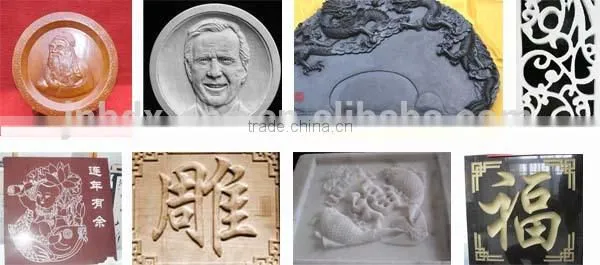

Samples of marble machine:
Performance feature of marble machine:
1)Industrial production model,heavy all-steel welded,temperating aging treatment,solid and can not change the shape.
2)It adopts Taiwan liner guide which is contact with the bearing surface,so long time use the precision will be high.
3)Germany double-nut automatic anti-backlash ball screw.
4)High speed driver,so it has high speed and power.
5)Dust-protected oiling structure,so it make sure the machine running long time.
6)Break point and cutting continued carving,so it can engrave at any angle.
7)It can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
8)High power AC water cooling spindle,so it can process hard material efficiently.
Applicable industries of marble machine:
Stone engraving machine is used for carving marble,granite,glass,muyu-stone and so on hard materials.
Technical parameter of marble machine:
Model |
BDX-S90 |
BDX-S12 |
BDX-S15 |
BDX-S18 |
X working area |
900 |
1200 |
1500 |
1800 |
Y working area |
1200-1500mm |
1200-1500mm |
1200-3000mm |
1200-3000mm |
Table size |
1080-1800mm |
1380-3000mm |
1680-3500mm |
1980-3500mm |
Max area of Z axis |
300mm |
300mm |
300mm |
300mm |
Highest running speed |
12m/min |
12m/min |
12m/min |
12m/min |
Highest engraving speed |
8m/min |
8m/min |
8m/min |
8m/min |
Precision |
0.005mm |
0.005mm |
0.005mm |
0.005mm |
Max feeding height |
350mm |
350mm |
350mm |
350mm |
Spindle power |
4.5kw/main axis |
4.5kw/main axis |
4.5kw/main axis |
4.5kw/main axis |
Rotated speed of the spindle |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
Working model |
stepper |
stepper |
stepper |
stepper |
Machine weight |
1000kg |
1300kg |
1600kg |
2000kg |
More products about cnc router:
If any further details you need, please contact us with "contact" buttom or through the methods below:
