Home > Products > Big Dipper Advertising CNC Router > Big Discount BDX-0609 cnc wood carving machine for sale

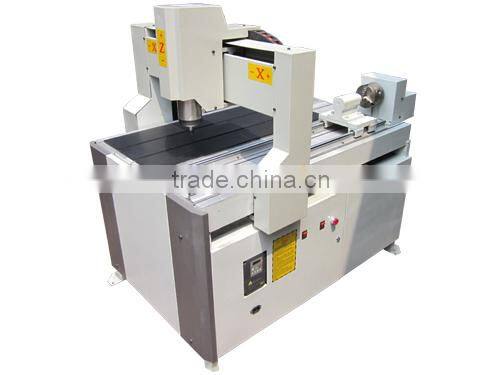

Big Discount BDX-0609 cnc wood carving machine for sale
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | Dipper | Model Number: | BDX-0609 | Voltage: | AC220V/50/60Hz,1PH |
Power(W): | 2.2KW | Dimension(L*W*H): | 600*900*100mm | Weight: | 200kg |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
cnc wood carving machine for sale:1.Manufacturer
2:2.2 KW water cooling spindle
3:T-slot table
Big Discount BDX-0609 cnc wood carving machine for sale
Machine parts of cnc router:
Samples Show of cnc router:
Specifications for cnc router:
1)This cutting machine adopting imported linear rails guide ways and double rows four line slide blocks; the machine operates smoothly
and accurately bearing heavy load and long working life.
2)This cutting machine adopts steel seamless welding, it really rigid deformation, we installed steel plate at the back of work table, high strength and rigidity is good, the machine can reach a ton or more load – bearing strength.
Application material for cnc router:
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Technical parameter for cnc router:
Model | BDX-6090 |
X,Y working area | 600*900mm |
Z working area | 80mm |
Table size | 780*1400mm |
Max travel speed | 3m-5m/min |
Max engraving speed | 2m-4m/min |
Resolution ratio | 0.005mm |
Reposition accuracy | 0.05mm |
Max feeding height | 110mm |
Command | Gcode*.u00*.mmg*.plt |
Surroundings for software | windows98/2000/xp |
Power(not include the spindle) | 2kw |
Power | AC220V/50Hz |
Main axle power rate | 2.2kw |
Main axle rotating speed | 0-24000rpm/min |
Work mode | stepper |
Machine weight | 200kg |
If any further details you need, please contact us with "contact" buttom.
Please feel free to contact us,we will reply within 24h!
We want to know:
1 How much the spindle power you need
2 What materials do you need to process
3 The size and thickness of your material
Production Flow Chart:
After-sale service about our cnc router:
1) One year free warranty under normal use and we give maintenance for 18 months.
2) First class engineers give 24 hours service on Internet and Telephone, free instructions and
problem solving.
3) Free training to make sure you master the operating of cnc router.
