Filter Seamer Machine,Tin Can Sealing Machine,Filter Sealing Machine

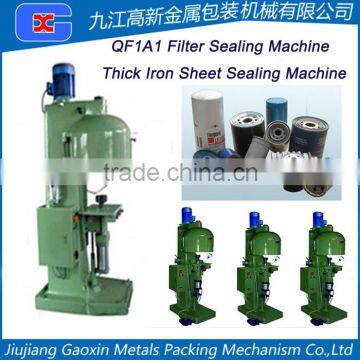

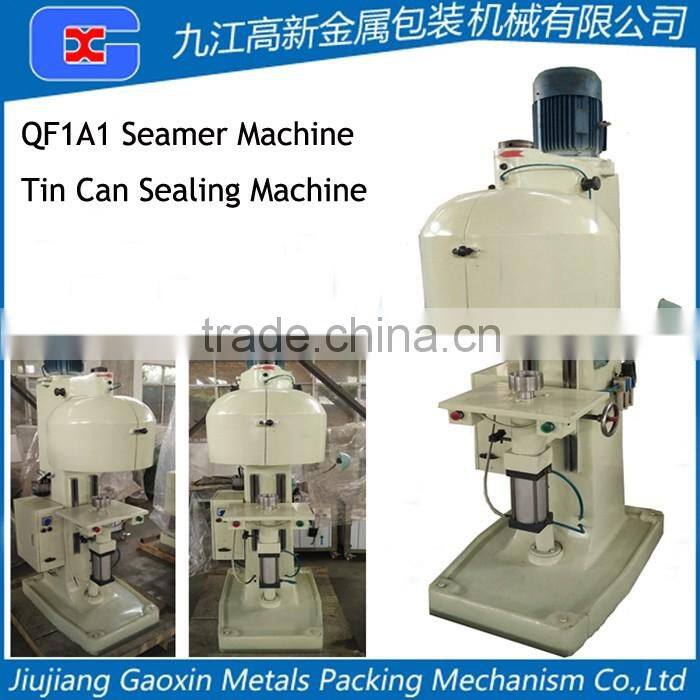

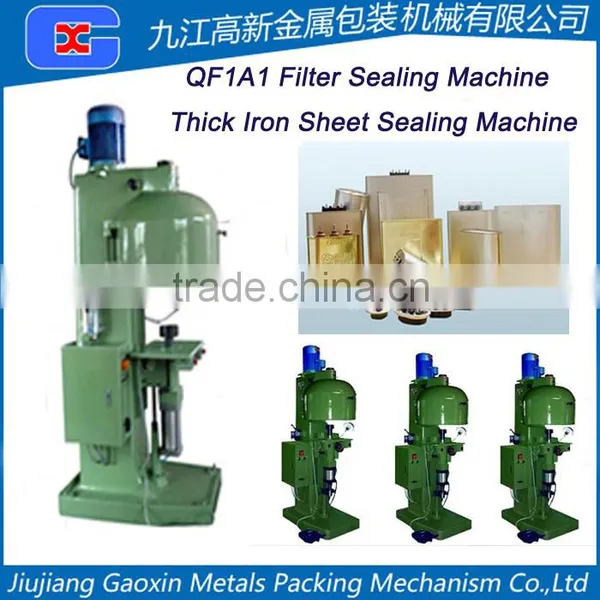

QF1A1 Thick iron sheet sealing machine(filter sealing machine)
| Productivity | 12cans/min(up to 25 cans/min after restructuring) |
| Applied can's drive | 50-130mm(up to 280mm after restructuring) |
| Applied can's height | 60-325mm(up to 450mm after restruturing) |
| Iron sheet thickness | 0.3-1.8mm |
| Motor power | 4KW 380V 50HZ |
| Size | 900*640*2150mm |
| Weight | 900kg |
Usage:
The machine is also known as filter sealing machine,used for sealing 0.3mm-1.8mm shell,special equipment for gasoline,diseal and air filter.
Model: 4A24 Sealing Machine
Technical Parameter
| Productivity | 12cans/min |
| Applied Can's Drive | 120-600mm |
| Applied Can's Height | 460mm |
| Motor Power | 2.2KW |
| Size | 1450*920*1900mm |
| Weight | 1300KG |
Usage
Model: 4A10 Semi-automatic Sealing Machine
| Productivity | 10-15cans/min |
| Applied can's diameter and diagonal | 40-350mm |
| Motoe Power | 1.1KW |
| Size | 800*650*2000mm |
| Weight | 400kg |
Model: 4B8A Automatic Square Cans Sealing Machine
Technical Parameter
| Productivity | 20-30 cans/min |
| Applied Scope | The largest diagonal 320mm |
| Motor Power | 1.5KW |
| Size | 1800*1000*1900mm |
| Weight | 2000KG |
Usage

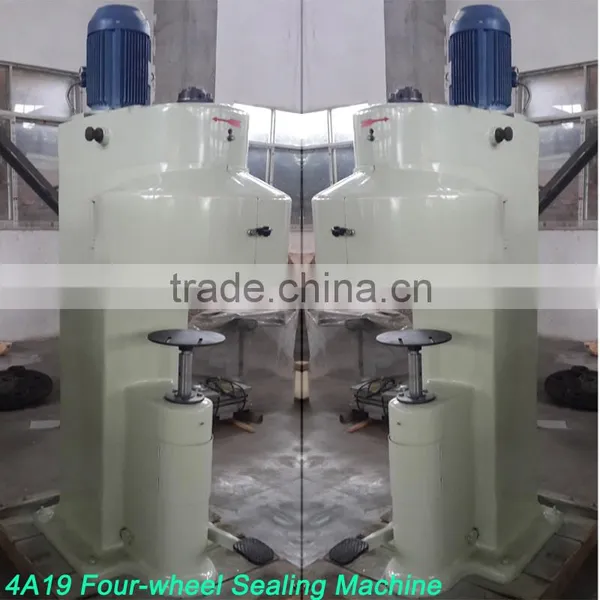

Model: 4A19 Four-wheel Sealing Machine
Technical Parameter:
| Productivity | 8-20 cans/min |
| Applied Sheet's Thickness | ≤0.5mm |
| Applied Can's Drive and Diagonal | 50-320mm |
| Applied Can's Height | 370mm |
| Motor Power | 2.2KW |
| Size | 1000*917*1885mm |
| Weight | 800KG |
Usage
The machine can be used for sealing of round and special-shapes cans of can-manufacturing and capacitor industry or other industries.
Model: GT4A6 Sealing Machine
Technical Parameter:
| Productivity | 26-30 round cans/min, 15-20 special-shaped cans/min |
| Applied Can's Drive and Diagonal | 28-170mm |
| Motor Power | 1.5KW |
| Weight | 550KG |
| Size | 785*650*2000mm |
Usage:
| Productivity | 25-30 cans/min |
| Applied can's drive | 30-160mm |
| Applied can's height | 32-300mm |
| Motor Power | 0.37KW |
| Size | 790*600*1360mm |
| Weight | 200KG |
Usage:
Jiujiang Gaoxin company is one of the largest-scale machinery manufacturing companies in China which specializes in capacitors (the shell and cover), filter sealing, cap ( aluminum cap, three and four lug caps, crown cap, pop-top cap), sealing, automatic feeding &NC (numerical control) punch etc. equipments.
Any questions,please feel free to contact with us.
Nancy Huang
Skype:mechanism.jjgx88
WhatsApp:0086-18270269956
1. Warranty: One year after shipment.
2. Delivery Time: 15-30 working days after receiving the advance payment.
3.Power:3 phase 4 wire, 380V, 50Hz(or according to your requirements)
4. Installation and commissioning
Before installation,we will provide machine layout drawing with dimensions, total power, single power, power interface, water &air input and output position, total water consumption. After the machines arrived and have taken seat,you must connect the water and electric and gas into the machines, then we shall send 2-3 technicians to install the production line.
