Help CenterZH Wet Scrubber
Related Products
-
ZH-4# Wet ScrubberUS$ 4,000 - 8,000MOQ: 1 Set -
ZH-6# Wet Scrubber Dust CollectorUS$ 5,000 - 10,000MOQ: 1 Set
-
99.9% High Efficiency ZH-2# Watery Dust Collecting System Powder Dust Purification MachineUS$ 3,000 - 6,000MOQ: 1 Set
-
99.9% High Efficiency ZH-2# Watery Dust Collecting System Powder Dust Collecting DeviceUS$ 3,000 - 6,000MOQ: 1 Set
-
99.9% High Efficiency ZH-2# Watery Dust Collecting System Granite Dust CollectorUS$ 3,000 - 6,000MOQ: 1 Set
Specifications
1.High dust removing efficiency through hydraulic force2.Automatic water feeding device
3.Easy in maintenance
4.Good price
Features:
1.High dust removing efficiency through hydraulic force
2.automatic water feeding device, easy in maintenance
3.Good dust removing effect for sticky and hydrophilic dust particles
4. low running resistance, low power consumption
Application Scope:
It is highly effective in treating sticky, high temperature, toxic and harmful gases. It's widely used in pharmaceutical, metallurgy, chemical and power industries.
Operating Principle:
During operation, dust air passes through arc-shaped slot with high flow speed after it enters the purifying tank. Air stream in the slot turns sharply and blends forcefully with water, forming a water curtain at the slot exit which facilitates full contact between dust and water and enables dust to dissolve into water. Purified air is discharged out from water-retaining plate after moisture is removed. By recycling water in the tank, Water consumption is therefore minimal, except for loss from evaporation. Water lost is replenished by automatic water refilling device to maintain water level. Sludge on the dust remover shall be cleaned regularly.

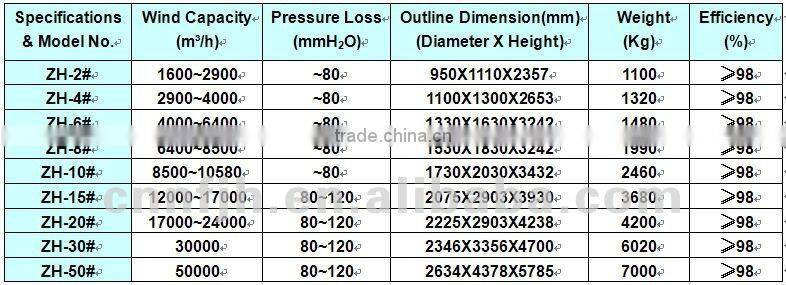

Technical Parameter Table for ZH Wet Scrubber
| Parameters Project | Nominal Airflow (cfm) | Pressure loss(mmH2O) | H (in) | D (in) | W (in) | Approx. Shipping Weight (ibs.) |
| ZH-2# | 940~1705 | ~80 | 9159/64 | 373/64 | 4319/64 | 2408 |
| ZH-4# | 1705~2352 | ~80 | 10315/32 | 4257/64 | 5045/64 | 2906 |
| ZH-6# | 2352~3763 | ~80 | 1267/16 | 5155/64 | 6337/64 | 3260 |
| ZH-8# | 3763~4998 | ~80 | 1267/16 | 5943/64 | 7123/64 | 4379 |
| ZH-10# | 4998~6221 | ~80 | 13327/32 | 6715/32 | 7911/64 | 5422 |
| ZH-15# | 7056~9996 | 80~120 | 15317/64 | 8059/64 | 1137/32 | 8100 |
| ZH-20# | 9996~14112 | 80~120 | 1659/32 | 8625/32 | 1137/32 | 9234 |
| ZH-30# | 17640 | 80~120 | 1835/16 | 9131/64 | 13057/64 | 13244 |
| ZH-50# | 29400 | 80~120 | 22539/64 | 10247/64 | 17047/64 | 15438 |
