Specifications
cube Ice roompainted galvanized steel polyurethane panels,
density 43kg/m3
double convex doors
air cooled compressor

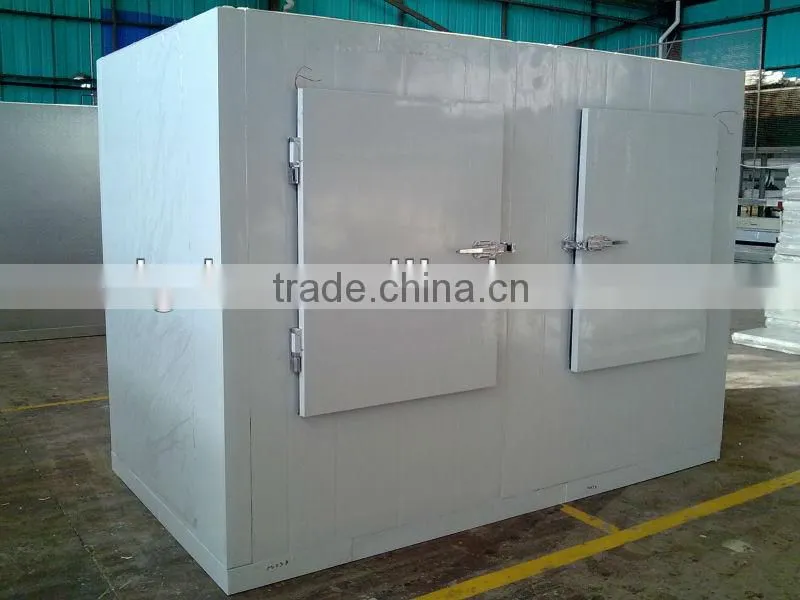

cube Ice room (-10 C)
1. The cube ice room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel density is up to 40kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel and durable for anti-scratch.
4. The hinged door panel of our coldroom is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high quality sealing.
6. The connection of our cold room is with cam lock construction and excentric fasterners for tight connection and sealing of the cold room
cube Ice room Production Information
| Size | 2900mmL*1600mmW*2200mmH |
| Temperature | -10 degree C |
| Feature | made up of pieces of 0.326mm painted galvanized steel polyurethane panel thickness 100mm |
| equip with 0.326mm painted galvanized steel polyurethane convex door thickness 100mm | |
| air cooled refrigeration unit and air cooler,and control box | |
| with 9 meters of aluminum base,copper pipe 5 meter, wires,light,switch and other necessary fittings. |
cube Ice room Door with heater
cube Ice room panel:
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self-extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years.
4. Gasket is around the edge of each cube Ice room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
cube Ice room condensing units:
Brand: Copeland scroll air cooled Condensing unit
Feature:
•Compliant,accurate,fewer moving parts,the exclusive copeland design guarantee the supper reliability.
•Wide flexibility,Energy saving,Low noise.
•Low vibration,space and weight saving,Energy saving.
•can bu used in more higher ambient temperature.
cube Ice room Fan
cube Ice room Electrical Cabinet
Our Electrical Cabinet accessories are adopted the imported famouse brand accessories ,such as the French Schneider brand contactor, Italy EVCO brand temperature controller .
So our Electrical Cabinet is very high quality and durable .
So you know why our cooling room production cost is higher then other suppliers.

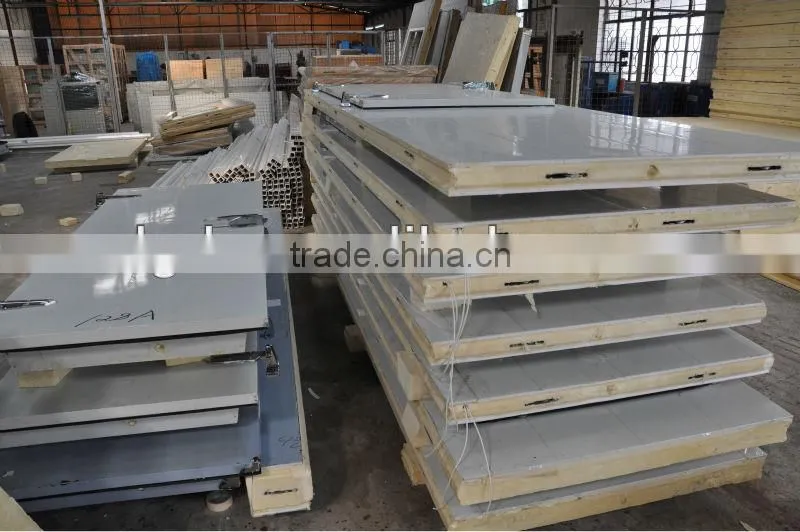

production line for our cube Ice room
Company Certificate
Take part in the Exhibition every year:
