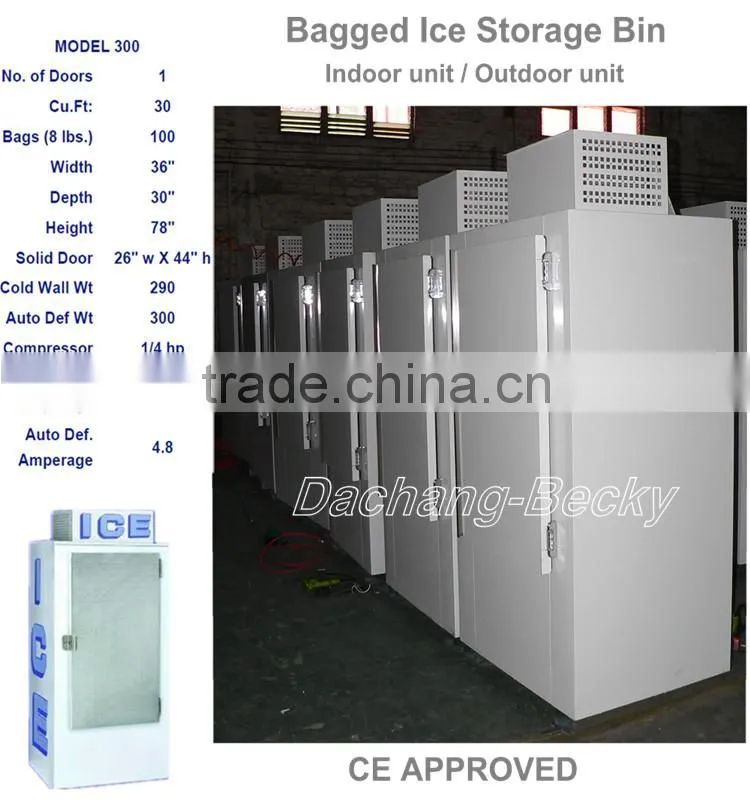

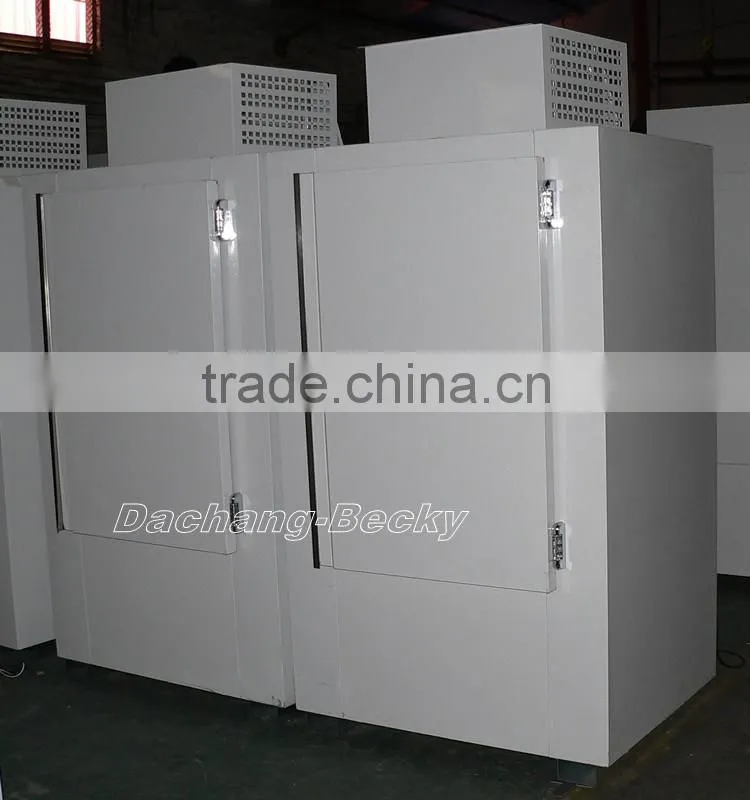

Model 300 bagged ice storage bin with single solid door
Bagged ice storage bin Model 300
| Model | DC-300 |
| Certificate | CE&Rohs |
| Temperature range | -12℃ |
| Capacity(cubic feet) | 30 |
| Bag(8 Lbs) | 100 |
| Steel finish | Painted galvanized steel |
| Insulation | Polyurethane 80mm thick |
| Dimension(W*D*H)inch | 36*30*78 |
| Dimension(W*D*H)mm | 910*760*1980 |
| Door type | Painted galvanized steel/ embossed aluminum |
| Door size(W*H) | 26*44inch (660*1120mm) |
| Door quantity | 1 |
| Refrigerant | R404a |
| Cooling system | copper pipe /air cooled |
| Compressor brand | embracco |
| 40ft container loading QTY | 36sets |
The specification of bagged ice storage bin DC-300
*Material: Painted galvanized steel /stainless steel , foamed in polyurethane insultation
*Temperature: -5/-8/-12/-18degree C
*Compressor: Embraco
*Refrigerant: R404a CFC free
*Automatic defrost and cold wall refrigeration system
* ice storage bin with digital temperature control
* handle, easy to open and bring out ice, convenient handle for operation
* solid door/ glass door optional

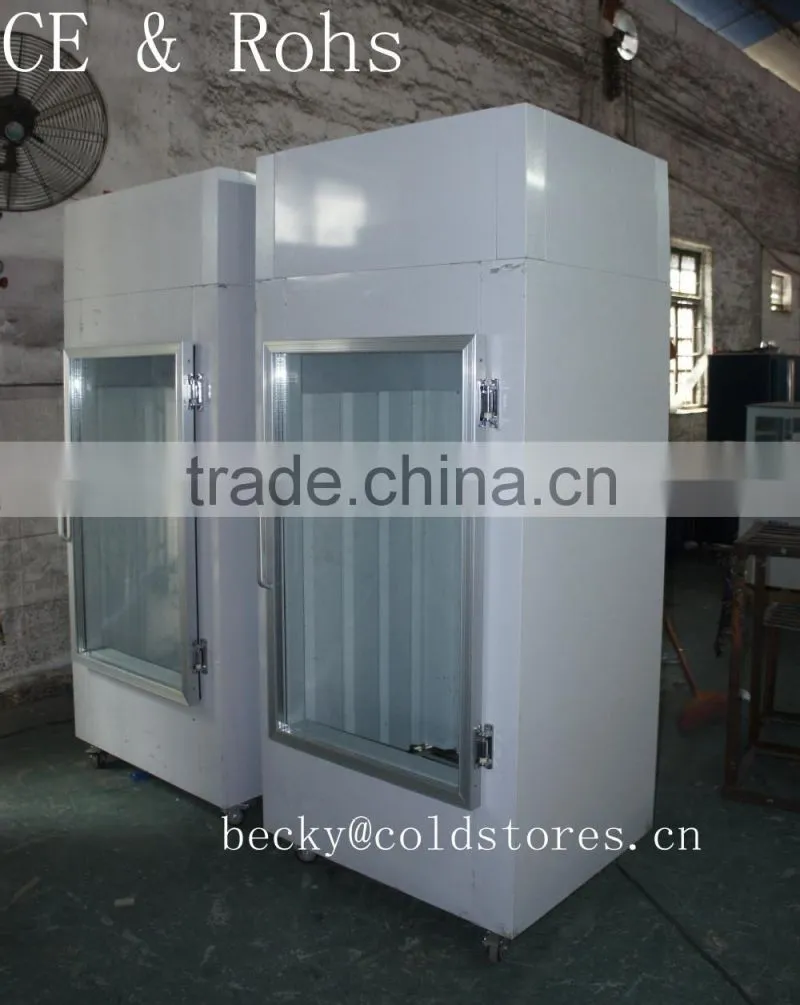

Bagged ice storage bin / Ice merchandiser DC-300 with single glass door:
Bagged ice storage bin DC-300 with single door.
Doors are optional: glass door / solid door
Door steel finish optional:painted galvanized steel/stainless steel/embossed aluminum
There are A.B.C.D four types of door handles optional:
We design "drop-in"condensing unit together with evaporator, easy take out whole refrigeration unit for test and maintenance.
We usually use Embraco compressor, run with refrigerant R404a. If the ice storage bin is with fan cooling system, it is frost free.
Temperature control for the outdoor bagged ice storage bin

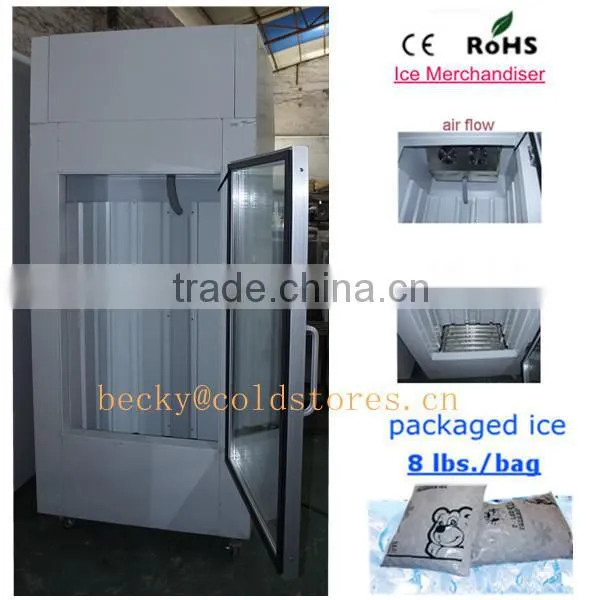

Air flow and bottom shelf of the fan cooling bagged ice storage bin:
bagged ice storage bin /Ice merchandiser, we have many ice bin models with different capacity optional.
Temperature of the ice storage bins can be 0degree C/-5degree C/-12degree C/-18degree C.
The cooling system can be fan cooling or static cooling(Cold wall).
The door of the ice bins can be solid door or glass door.
The voltage can be changed as request.
We can asist you to make the logo artworks for the ice storage bin.
We are professional in the designing and manufacturing of the ice merchandiser/bagged ice storage bin
Besides full assembled ice merchandisers, we also provide flat pack ice storage room for your option:
Packaging of Bagged ice storage bin:

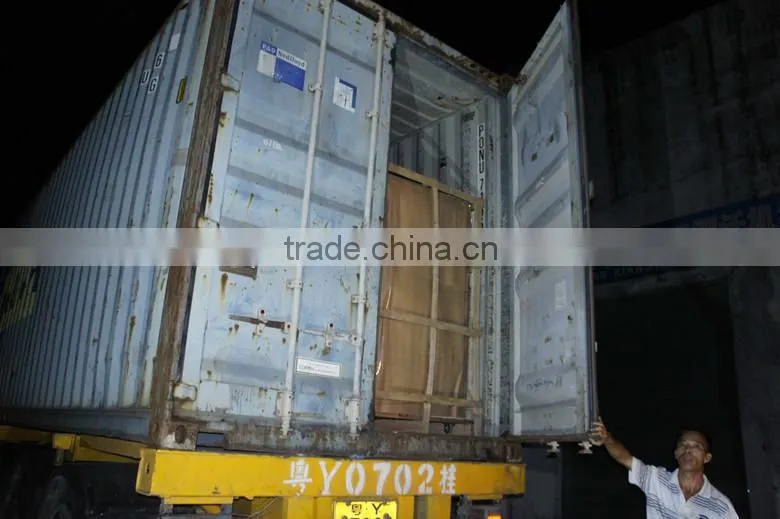

Loading of bagged ice storage bin:
1. Manufacture polyurethane insulation panels,cold room,ice merchandiser,blast freezer and water chiller.
2. OEM design and manufacture cold room,ice merchandiser,blast freezer, water chiller
3. Arrange shipment
4. Provide oversea installation service
2.Sample order: Acceptable.
3.Trade term:FOB,CFR,CIF
4.Payment term: T/T OR L/C at sight
