Glass Door Walk in Cooler in Supermarket

Glass Door Walk in Cooler in Supermarket thumbnail-1
Glass Door Walk in Cooler in Supermarket photo-1
US$ 23 - 35 MOQ: 2 Square Meters
Key Specifications
Get Latest Price
Condition:
New
Temperature:
-20~10℃
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Dongguan City Dachang Refrigeration Electrical & Mechanical Engineering Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOSHAN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Temperature -20~10℃
Place of Origin Guangdong, China
Brand Name Cold room
Model Number Cold room
Voltage 380V
Power(W) Customized product
Dimension(L*W*H) Customized product
Weight Customized product
Certification ISO9001:2000 CCC SGS
Warranty One year
After-sales Service Provided Overseas third-party support available

Glass door walk in cooler in supermarket

Product Description

Glass door walk in cooler  is a new product with various standard dimension sizes. The storage capacity of it may be specified

or selected according to customer's requirements. The storage temperature of the cold room is

displayed and controlled by digital thermostat for precise control temperature and temperature

adjustment to achieve the utmost energy efficiency and perfect storage of food.



Glass door walk in cooler  feature:



1.Using all parts of the main foreign brands, running more secure;
2.A unique way of cooling than traditional high-efficiency by about 30%;
3.To adopt environment-friendly refrigerant and fluorine-free refrigerant;
4.Mute design, low noise and give you a quiet office space;
5.Condensation unique: half of the natural convection, half of the air, even if the wind blocking dirty condenser, compressor's not easy to cause damage;
6.The production of stainless steel liner;
7.Round cavity design, easy to clean;
8.Outside the door silicone door seals tight blockade of air-conditioning;
9.R232 interface (optional) to help data analysis;
10.The removable cleaning dust,
11.According to the domestic high and wide doors designed for the handling and do not have to put in place to worry about;
12.PU extra-thick insulation so that heat and strengthen the structure;
13.With lights and shelvings



Glass door walk in cooler specification:

Glass Doors

50mm panel(2~10C)

75mm panel(0~-5C)

100mm panel(-5~-20C)

1 DOOR

905*950*>1965mm

955*950*>2015mm

1005*950*>2065mm

2DOORs

1663*950*>1965mm

1713*950*>2015mm

1763*950*>2065mm

3DOORs

2421*950*>1965mm

2471*950*>2015mm

2521*950*>2065mm

4DOORs

3179*950*>1965mm

3229*950*>2015mm

3279*950*>2065mm

5DOORs

3937*950*>1965mm

3897*950*>2015mm

4037*950*>2065mm

6DOORs

4695*950*>1965mm

4745*950*>2015mm

4795*950*>2065mm

7DOORs

5453*950*>1965mm

5503*950*>2015mm

5553*950*>2065mm

8DOORs

6211*950*>1965mm

6261*950*>2015mm

6311*950*>2065mm

9DOORs

6969*950*>1965mm

7019*950*>2015mm

7069*950*>2065mm

10 DOORs

7727*950*>1965mm

7777*950*>2015mm

7827*950*>2065mm



Glass door walk in cooler introduction:

1. Glass door walk in cooler panel

1)Panel test specification

No. Inspection Item Unit Technology requirement Inspection result
1 Density kg/m3 32~50 43
2 Compressing strength(10%deformation) Kpa ≥ 160 200
3 Bending Stregth Kpa ≥ 245 331
4 Absording rate % ≤ 4 3
5 Heating coefficient

W/m.k

 0.024 0.021
6 Average burning time(vertical) S ≤ 30 3
7 Average burning height(vertical) s ≤ 250 250





2)Panel advantages

1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel

 with better thermal conductivity of  0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.

2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.

3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the

painted galvanized steel they produce will not fade in 15~20 years

4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in.





2. Glass door walk in cooler  parts

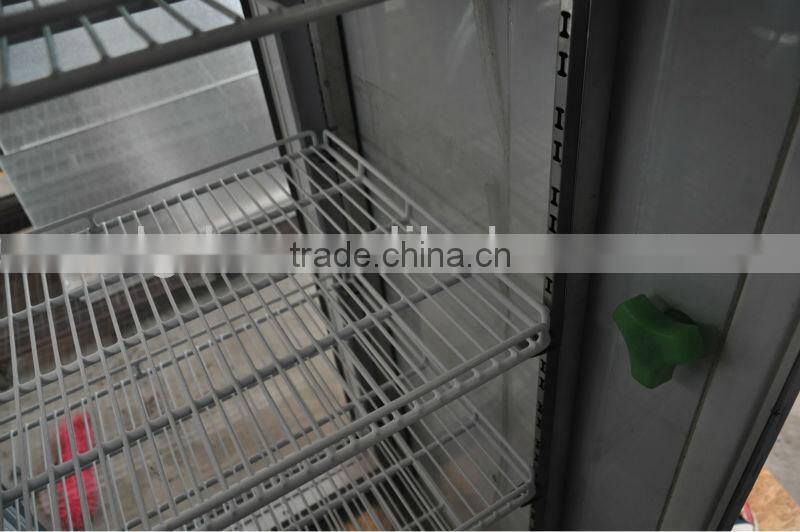

1)Plastic coated shelf

Glass door walk in cooler in supermarket

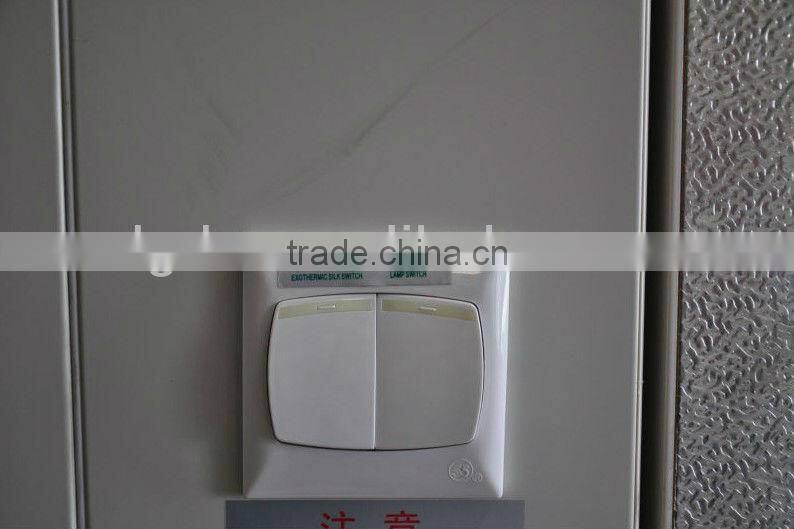

2)Light and glass door heating tube switch

Glass door walk in cooler in supermarket

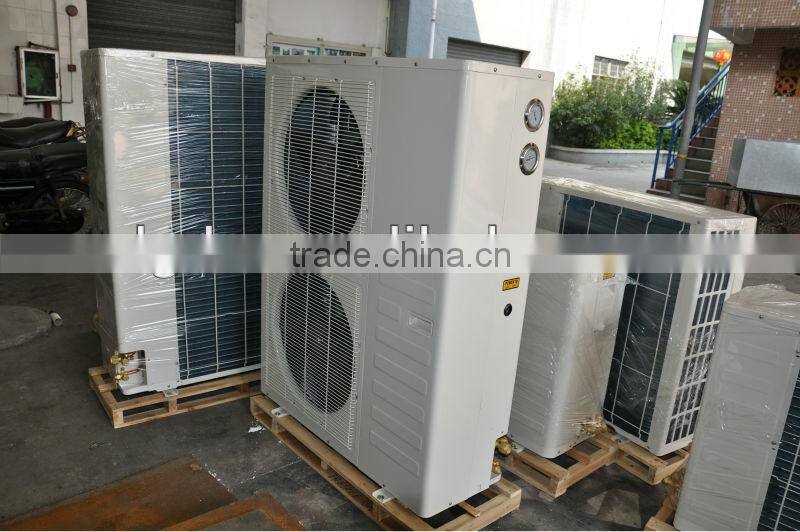

3. Glass door walk in coolerrefrigeration unit

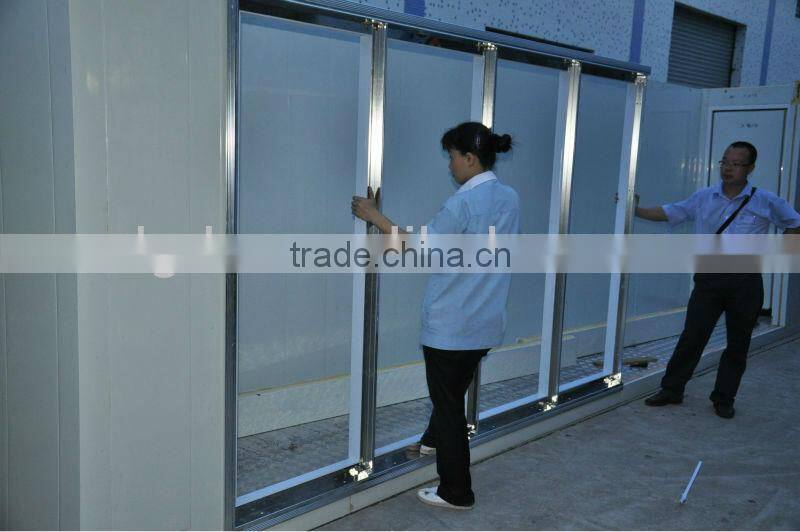

4.Cold room installation Glass door walk in cooler in supermarket





5. Glass door walk in cooler package



6.Cold room panel production procedure





Cold room project:



Cold room exhibition:



Cold room certificate:





Factory picture:
