cold storage room for supermarket

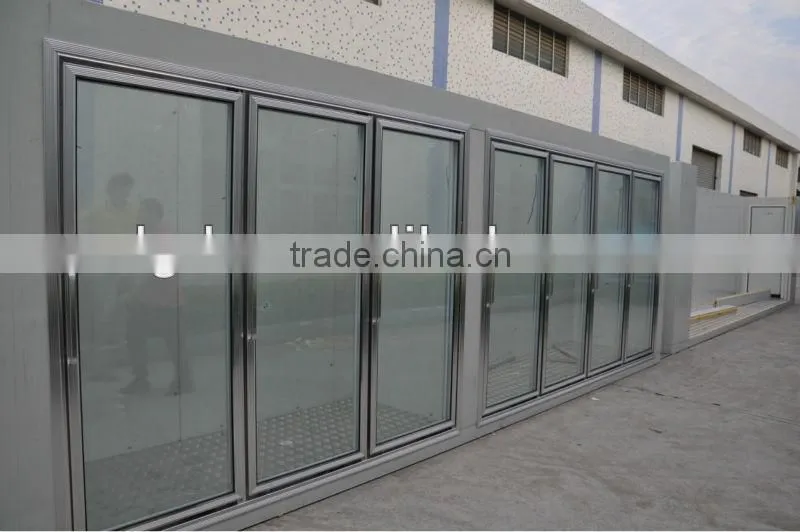

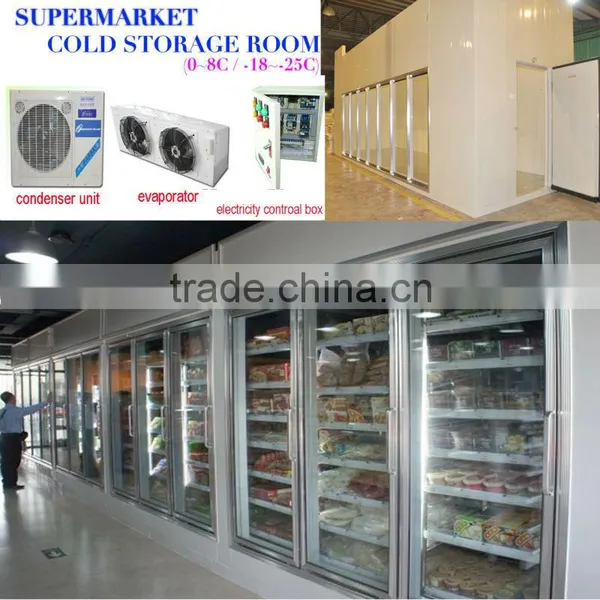

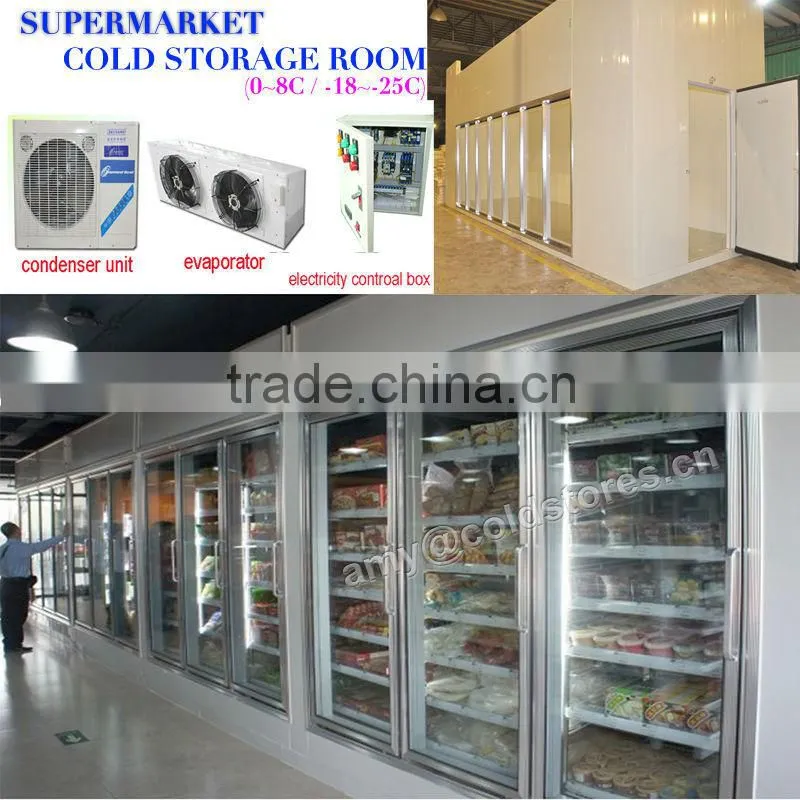

Glass door cold storage room are ideal for display and storage of chilled products such as beverages, dairy products, flowers, ice cream, meat, etc. Self closing, condensation-free doors ensure displays are kept at the right temperature, with the lowest possible energy consumption and cost.
we are a professional manufacturer,which help our clients to customize the cold storage room .Pls answer us the following questions. Tks!
1.Which country the cold storage room located?
2. cold storage room being installing inside the building or putting outside the house?
4.External dimension of the cold storage room ?(m)
5.how many glass doors for the cold storage room ?
6.Required temperature inside the cold storage room (°C)?
7.Do you need sides door for the cold storage room ?
10 glass doors cold storage room Information
| Dimension | 8427L*1500W*2300H (mm) |
| Panel |
Wall & Ceiling panels floor panels |
| Foaming material | BASF |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | glass door 725*1775mm |
| Temp.of room | 0~8 degree C, freezer tempeprature is acceptable |
| Purpose of cold room | for flower display beverage in supermarket |
| Refrigeration unit | zanotti uniblock unit 3hp / |
| Refrigeration type | air cooled |
| Fittings | all necessary fittings are included, optional Copeland split unit |
| Place to assemble | indoor |
| Voltage | 380V/50HZ |
standard cold storage room measurement | |
Glass Doors |
100mm panel |
1 DOOR |
L1005*W950*>H2065mm |
2DOORs |
1763*950*>2065mm |
3DOORs |
2521*950*>2065mm |
4DOORs |
3279*950*>2065mm |
5DOORs |
4037*950*>2065mm |
6DOORs |
4795*950*>2065mm |
7DOORs |
5553*950*>2065mm |
8DOORs |
6311*950*>2065mm |
9DOORs |
7069*950*>2065mm |
cold storage room panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
Our cold storage room panel advantage
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
cold storage room Installation
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

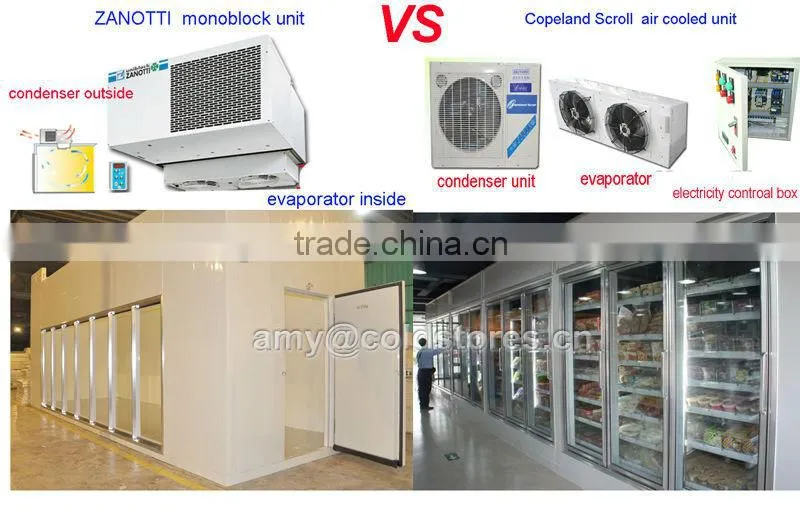

cold storage room condensing units: zanotti uniblock unit (ceiling mounted type)
Floowing are the advantages of the zanotti unit
1. wall/ceiling installation ( just need to hang on the cold room wall , easy to install )
There is no need to connect the Electric control box, expansion valve ,copper pipe and preservation ,ect.
2. save space ,which can leave more available space inside .
3. Automatic alarm system for condenser cleaning
4. Reduced noise level with compressor sound proofing design
5.fully automatic, hot gas de-frosting
6.automatic condensation water elimination system without the need for connection to outside systems for collection
7.Adopt the imported "MAVIB","EBM "Brand fan .
Of course , you also can choose the Copeland split unit . The split unit advantage is you can install the compressor outdoor .

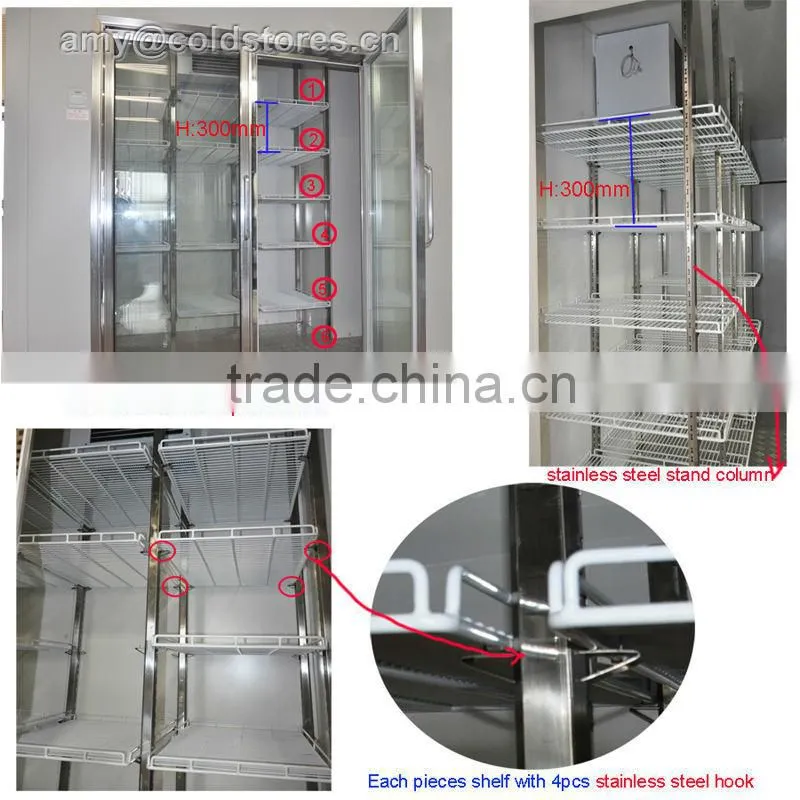

cold storage room door &shelf
glass Door size: W:725*H:1775 mm
shelf: plastics-dipping shelf (5 pcs/set) (L:726*W:600mm)
Service door: 800*1900mm
production line for our cold storage room
packaging information about our cold storage room

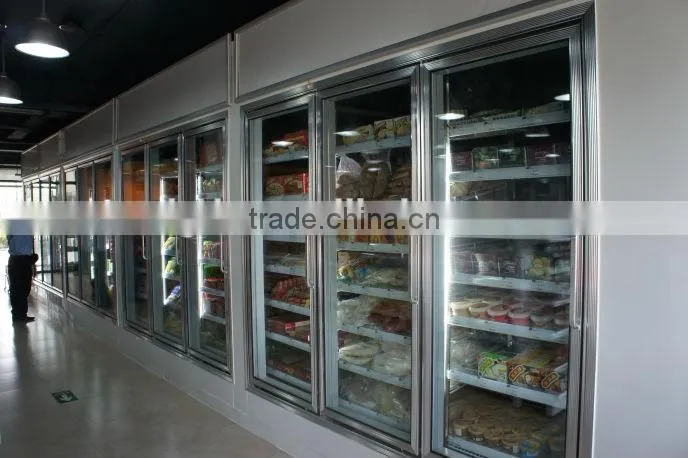

cold storage room case we did before
