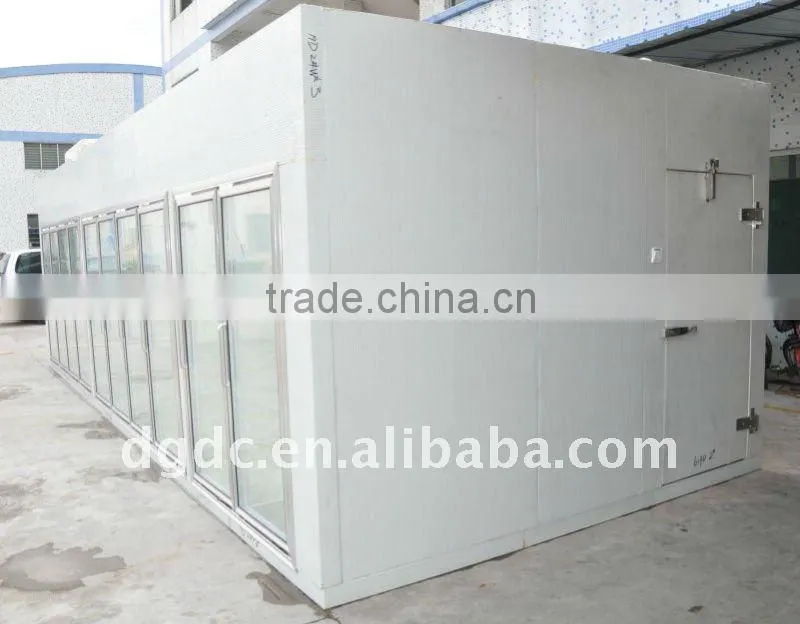

Supermarket display cooler rooms(7-door with LED light)
Specification of Supermarket display cooler room
1)body:both sides 0.326mm painted galvanized steel polyurethane panel thickness 100mm,with flame retardant,gasket around each panel

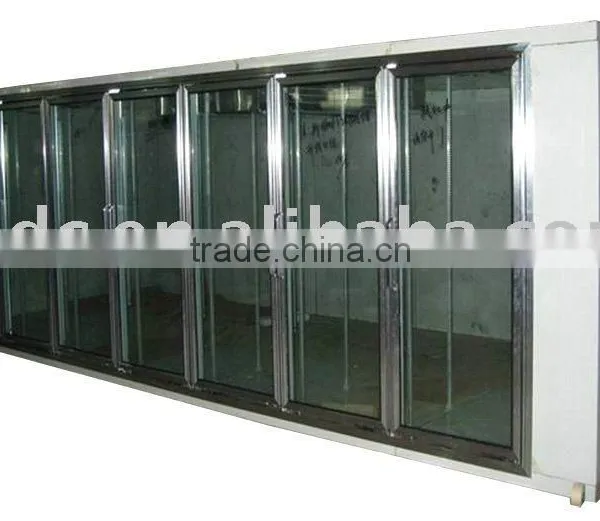

2)glass door with heater
3)can be with service door(hinge door or covex door)
4)with display racks
5)Copeland brand compressor with quick refrigeration, durable.
6) all the Necessary fittings are included.
OEM design of glass door display cold room is acceptable in our factory.
Related dimensions for supermarket glass door display cold room,reference only, can be modified to meet client's actuall need.
| Glass door QTY | Cold room size (insulation 75mm) | Cold room size (insulation 100mm) |
| 2- glass door | 1800*1200*2300mm | 2000*1300*2300mm |
| 3- glass door | 2800*1200*2300mm | 3000*1300*2300mm |
| 4- glass door | 3600*1200*2300mm | 3800*1300*2300mm |
| 5- glass door | 4300*1200*2300mm | 4500*1300*2300mm |
| 6- glass door | 5000*1200*2300mm | 5200*1300*2300mm |
| 7- glass door | 5800*1200*2300mm | 6000*1300*2300mm |
| 8- glass door | 6600*1200*2300mm | 6800*1300*2300mm |
| 9- glass door | 7300*1200*2300mm | 7500*1300*2300mm |
| 10- glass door | 8000*1200*2300mm | 8200*1300*2300mm |

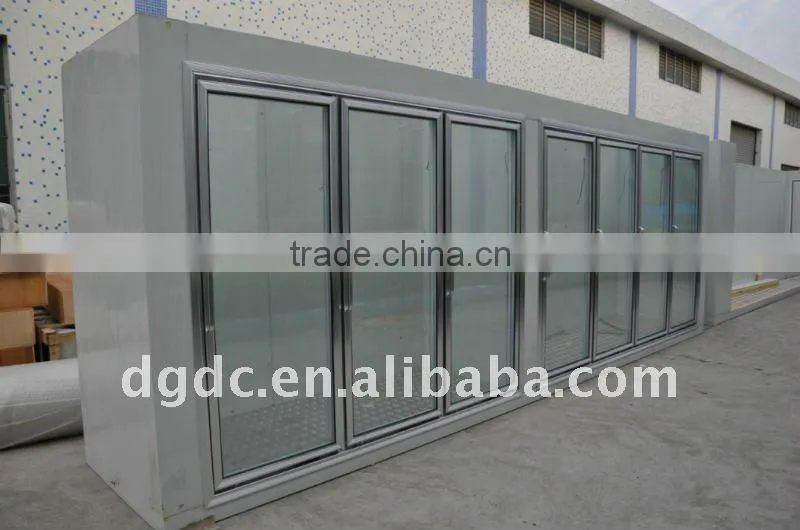

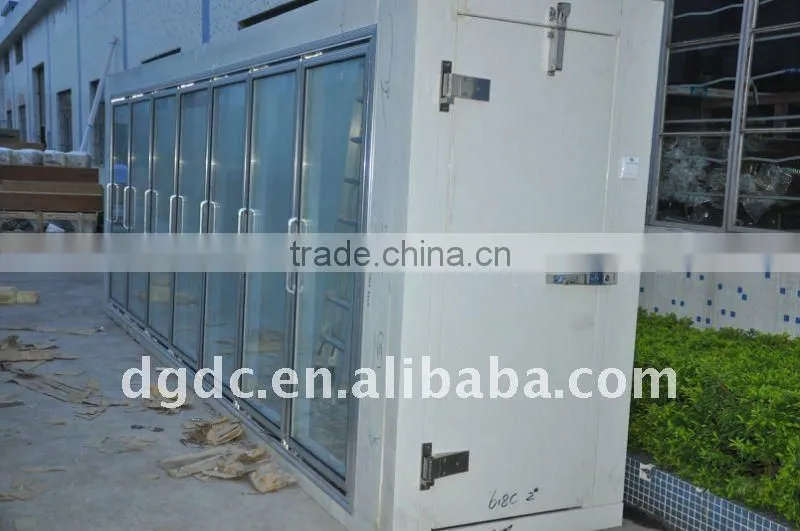

Pices of Supermarket display cooler room
Components of the Supermarket glass door display Cold Room
1.panel: polyurethane insulation panel foam by high pressure,with flame retardant
No. |
Inspection item |
Unit |
Technology Inspection |
Insection result |
1 |
Density |
Kg/m3 |
32-50 |
43 |
2 |
Compressing strength (10% deformation) |
Kpa |
≥160 |
200 |
3 |
Bending stregth |
Kpa |
≥245 |
331 |
4 |
Absorbing rate |
% |
≤4 |
3 |
5 |
Heating coefficient |
W/m.k |
0.024 |
0.024 |
6. |
Average burning time(vertical) |
S |
≤30 |
3 |
7 |
Average burning height(vertical) |
S |
≤250 |
250 |
2.condensing unit for display cold rooms:Bitzer,Copeland etc. evaporator:branded air cooler
3.Danfoss expansion valve and Dachang control box
4.Skidproof aluminum floor panel
5.other accessories:pressure relief vent,copper pipe,light and switches,drainage system etc.
LED light
Assemble of the Cold Storage with Multi-Glass Door
Put into use!!--- Supermarket display cooler room
Certificate
Production Line
DACHANG company attend the related exhibitions every year.
