Product Details
Place of Origin: | Guangdong, China | Brand Name: | Dachang | Model Number: | customized |
Product Description
Supermarket glass display freezer room
Glass Door Display Cold room Description:

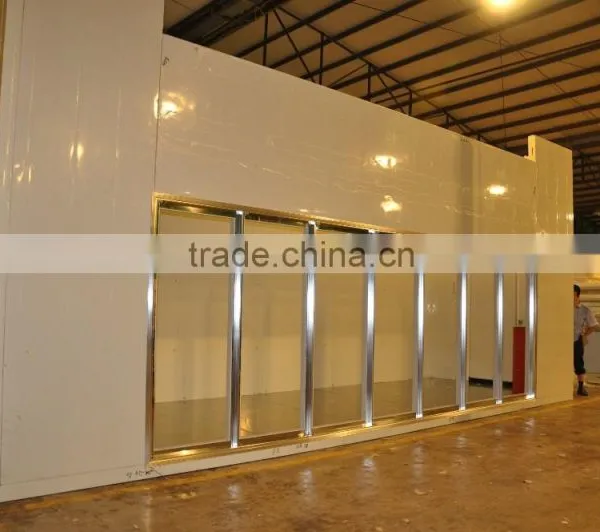

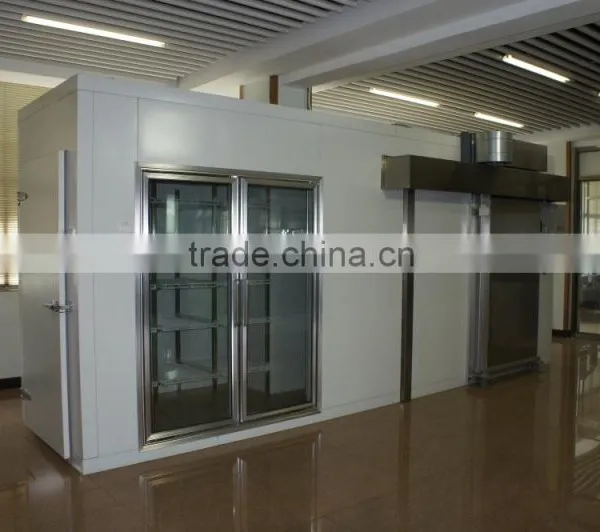

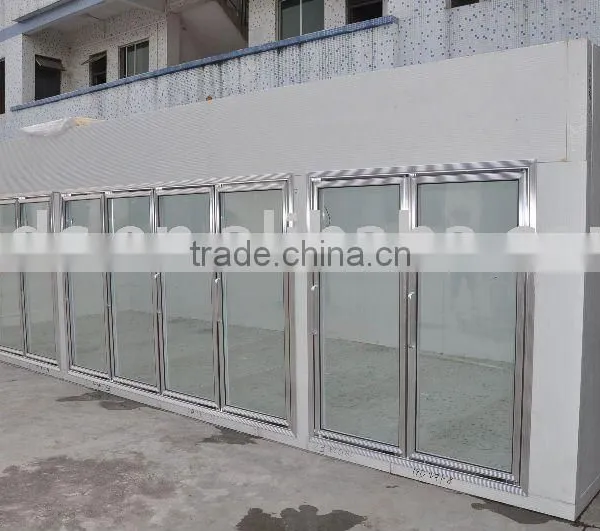

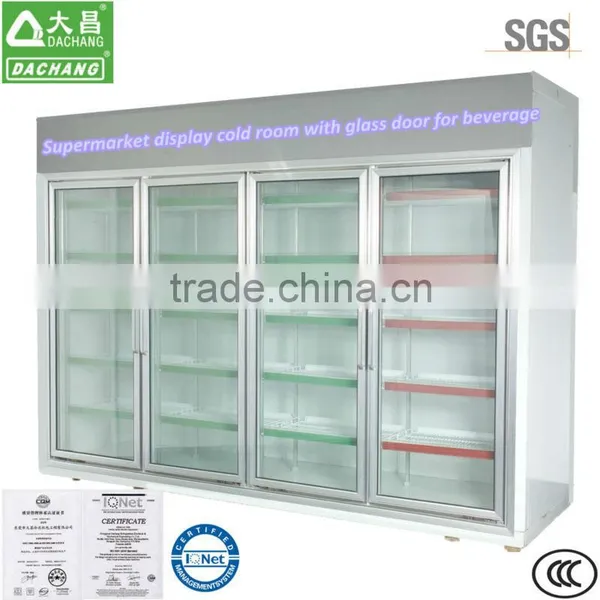

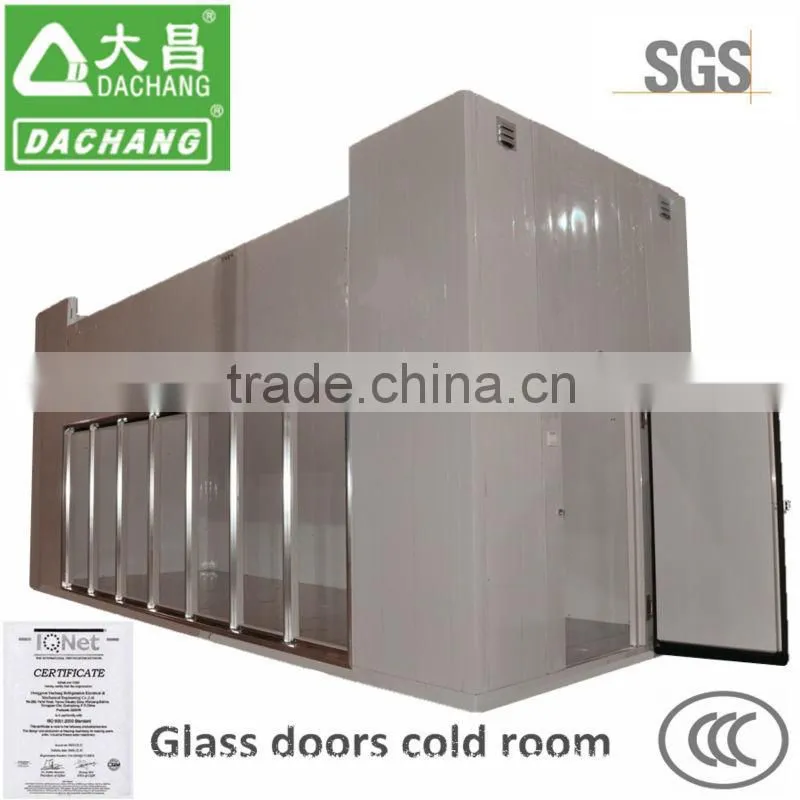

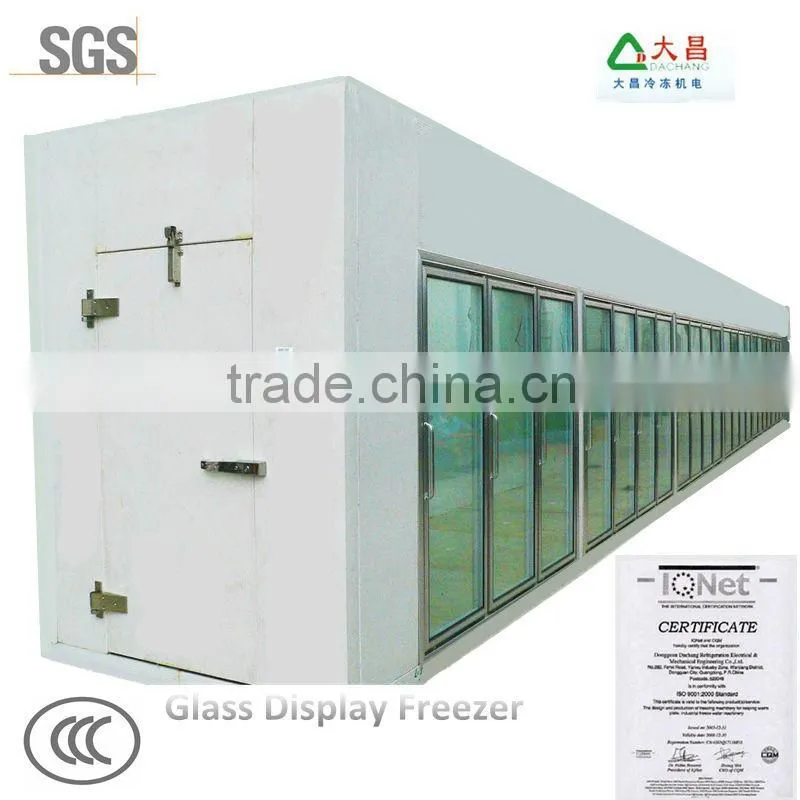

Display cold room is install by PU panels and glass door, suitable for drinks, wine, food display in supermarket.
Display cold room can be with various sizes. The storage capacity of it may be specified
or selected according to customer's requirements. The storage temperature of the glass door cold rom / freezer is displayed and controlled by digital thermostat for precise control temperature and temperature
adjustment to achieve the utmost energy efficiency and perfect storage of food or drinks.
Detailed description of cold room panel:
1. Cold room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel
density is up to 40kg/m3 or above.
3.The maximum length of panels is 13.5m and the standard width is 295.3mm with flame retardant.
4. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel
and durable for anti-scratch.
5. The hinged door panel of our cold room is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
6. The connection of our cold room panels are made with PE sealing rubber which is with high
quality sealing.
7. The connection of our cold room is with cam lock construction and excentric fasterners for
tight connection and sealing of the cold room
8.Built in lights, switch and other necessary fittings for choice.
How to design a cold room / freezer room
Dimension | Length (m) *Width (m)*Height (m) Customized |
Panel | Polyurethane insulation panel,43kg/m3,fire retardant |
Foaming material | BASF |
Panel thickness | 50mm,75mm,100mm,150mm,200mm |
Steel cover | Stucco embossed aluminum,Painted galvanized steel,Stainless steel |
Panel connection | Cam lock type,use hexagonal key to assemble and disassemble |
Type of door | Hinged door,Convex door,Sliding door |
Temp.of room | -45~+20 degree,optional |
Usage | Fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit | Copeland/Bitzer/Sanyo etc,China made evaporator |
Refrigeration type | Air coole/Water cooled |
Expansion valve | Danfoss |
Fittings | All necessary fittings are included,optional |
Place to assemble | Indoor/outdoor(Concrete construction building/Steel construction building) |
Voltage/Frequency | 380V/50Hz |
