Cold room polyurethane hinged doors
1. The cold storage room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel density is up to 43kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.2mm zinc coated panel and durable for anti-scratch.
4. The hinged door panel of our cold-room is made by heavy duty door hinge, heavy duty door lock and hydraulic
door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high quality sealing.
6. The connection of our cold room is with cam lock construction and excentric fasterners for tight connection
and sealing of the cold room.
cold room polyurethane hinged doors
Door thickness |
50, 75, 100mm |
|||
Standard hinged door |
830x1900H |
|||
(Width) |
(High) |
(Width) |
(High) |
|
Single side door |
900 |
1800 |
1000 |
1812 |
1200 |
2000 |
1300 |
2012 |
|
1500 |
2200 |
1600 |
2212 |
|
1800 |
2400 |
1900 |
2412 |
|
2100 |
2600 |
2200 |
2612 |
|
2400 |
2800 |
2500 |
2812 |
|
2600 |
3000 |
2700 |
3012 |
|
Double side door |
(Width) |
(High) |
(Width) |
(High) |
1800 |
2500 |
942 |
2512 |
|
2400 |
2800 |
1242 |
2812 |
|
3000 |
3000 |
1542 |
3012 |
|
cold room polyurethane hinged doors specification
| Door thickness | 50,75,100,150mm | |||
| Standard hinged door | 830x1900H | |||
| (Width) | (High) | (Width) | (High) | |
| Single side door | 900 | 1800 | 1000 | 1812 |
| 1200 | 2000 | 1300 | 2012 | |
| 1500 | 2200 | 1600 | 2212 | |
| 1800 | 2400 | 1900 | 2412 | |
| 2100 | 2600 | 2200 | 2612 | |
| 2400 | 2800 | 2500 | 2812 | |
| 2600 | 3000 | 2700 | 3012 | |
| Double side door | (Width) | (High) | (Width) | (High) |
| 1800 | 2500 | 942 | 2512 | |
| 2400 | 2800 | 1242 | 2812 | |
| 3000 | 3000 | 1542 | 3012 | |
cold room polyurethane hinged doors introduction
1.Cold room hinged door
1)100% polyurethane insulated under high pressure,high density of 43kg/m3,with fire resistance
2)Heavy duty door hinges
3)Hydraulic door closer,auto-closing
4)Standard size: 832mm W*1860mm H ( Size can be changed according client's requirement)
5)Door thickness optional: 75mm,100mm,150mm
6)Heater(For defrost) voltage: 24V/36V
7)Rubber around to avoid leakness
8)Safety handle mounted on the back of the door panel for inside emergency opening.
2.cold room hinged door
1)100% polyurethane insulated under high pressure,high density of 43kg/m3,with fire resistance
2)Taiwan hinges
3)Standard size: 800mm W*1900mm H ( Size can be changed according client's requirement)
4)Door thickness optional: 75mm,100mm,150mm
5)Heater(For defrost) voltage: 24V/36V
6)Rubber around to avoid leakness
7)Safety handle mounted on the back of the door panel for inside emergency opening.
3.cold room Sliding door
1)100% polyurethane insulated under high pressure,high density of 43kg/m3,with fire resistance.
2)Standard size: 832mm W*1860mm H ( Size can be changed according client's requirement)
| Name | Width(mm) | Height(mm) |
| Sliding door | 900 | 1800 |
| Sliding door | 1200 | 2000 |
| Sliding door | 1500 | 2200 |
| Sliding door | 1800 | 2400 |
| Sliding door | 2600 | 2800 |
| Sliding door | 1800 | 2500 |
| Sliding door | 3000 | 3000 |
3)Door thickness optional: 75mm,100mm,150mm
4)Heater(For defrost) voltage: 24V/36V
5)Rubber around to avoid leakness
6)Safety handle mounted on the back of the door panel for inside emergency opening.

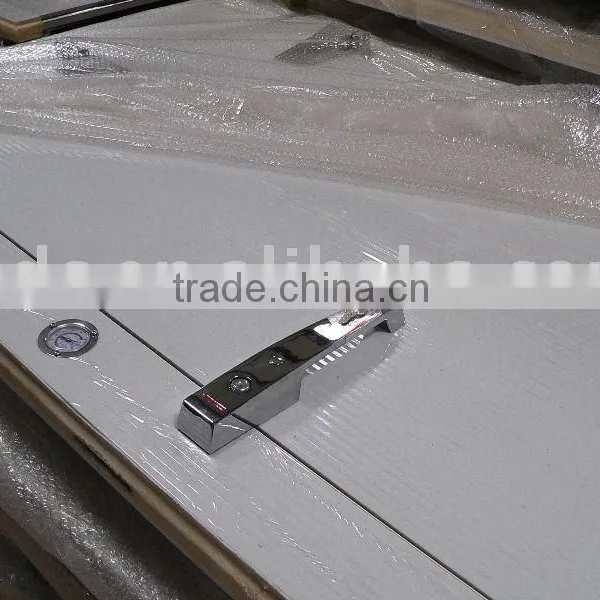

Cold room polyurethane hinged doors package
1. Cold room polyurethane hinged doors is usually packed with bubble paper,convenient,use the possible space of the container,save cost.
2.If sent by LCL,they are firstly wrapped in bubble paper, then put into wooden/plywood case,stronger packing to protect the panels away from damage caused by transportation.
