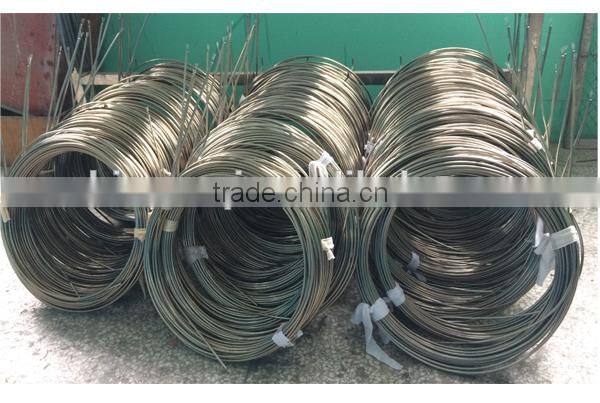

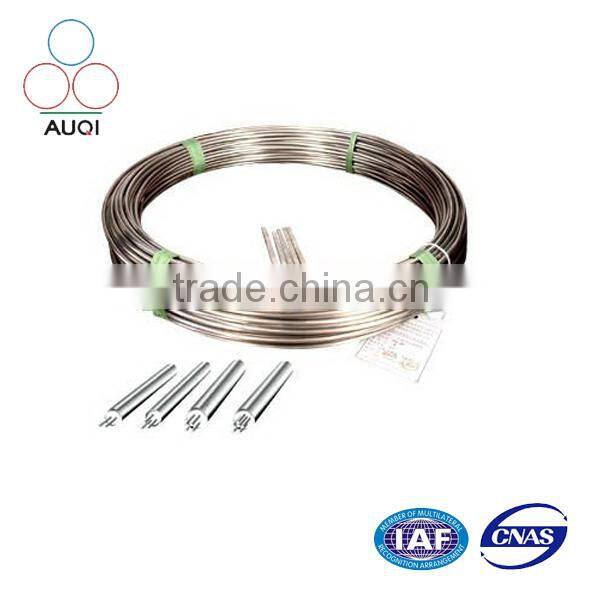

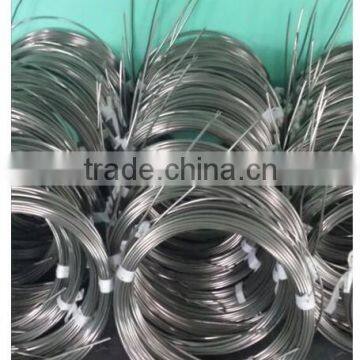

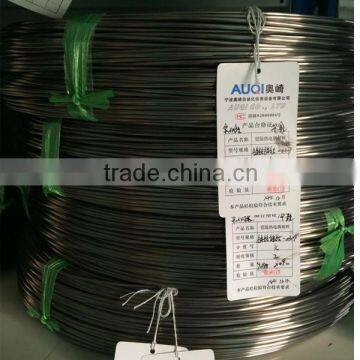

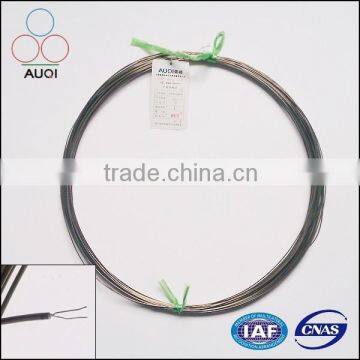

Help CenterMi Cable/Mineral Insulated Thermocouple Cable/Thermocouple Cable for Temperature Sensor
Related Products
-
mi Cable for Thermocouple & RTDUS$ 2.88 - 10.88MOQ: 99 Meters -
J Type Thermocouple Wire Temperature Sensor 0-10V Pt100US$ 1 - 5MOQ: 1 Piece
-
E Type Gas Oven Themocouple Low Temperature Sensor WireUS$ 1 - 5MOQ: 1 Piece
-
T Type Thermocouple Wire Temperature Sensor 1 WireUS$ 1 - 5MOQ: 1 Piece
-
B Type High Pt100 Temperature Sensor Cable for Probe for IndustryUS$ 1 - 8MOQ: 1 Piece
Thermocouple Cable
| Name: | MI cable |
| Type: | K/T/N/E/R/S/B/Pt100 |
| Insulator: | Magnesium Oxide |
| Conductor wire: | 2,3,4,6,8 |
| Bare material: | Pt,Rh,Ni,Cr,Si,Cu,Fe |
|
Sheathed Material Diameter: |
0.5,1,2,3,4,5,6,8,12 |
Material range: |
-200 to 600(RTD),-40 to 1700(thermocouple) |
| Outer Material: | 304,321,310,316,INconel600,GH3030 |
| Size: | Customized |
| Certification: | ISO9001, ISO14001 |
| Package: | Wooden case/carton box or as your requirement |
1 Thermocouple graduation | |
B |
B type 600---1700°C |
R |
R type 0---1600°C |
S |
S type 0---1600°C |
N |
N type 0---1100°C |
K |
K type 0---1000°C |
E |
E type 0---800°C |
J |
J type 0---750°C |
T |
T type -40---350°C |
P |
P t type -200---600°C |
C |
Cu type -200---100°C |
|
|
7 Outer protection sleeve material code | |
A |
1Cr18Ni9Ti (or SS321) |
B |
0Cr18Ni9 (or SS304) |
C |
0 Cr18Ni12Mo2Ti (or SS316) |
D |
0Cr25Ni20 (or SS310) |
G |
Nickel-based heat resistant and anti-corrosion alloy (or Inconel600) |
HB |
Hastelloy Alloy B-2 |
HC |
Hastelloy Alloy C-276 |
MK |
Monel K-500 |
TP91 |
ASTM A335P91 |
TP92 |
ASTM A335P92 |
TP11 |
A691Cr1-1/4CL22 |
TP22 |
A691Cr2-1/4CL22 |
W |
Wb36 (or 15NiGuMoNb5) |
E |
00Cr22Ni5Mo3N (double-phase stainless steel 2205) |
F |
PTFE |
Others |
Others (or ordered material) |
8 Mineral Insulated thermocouple (RTD) diameter | |
05 |
Φ0.5 |
10 |
Φ1 |
20 |
Φ2 |
30 |
Φ3 |
40 |
Φ4 |
50 |
Φ5 |
60 |
Φ6 |
80 |
Φ8 |
95 |
Φ9.5 |
127 |
Φ12.7 |
9 Total length | |
L |
(mm) |
10 Accuracy class | |
Ⅰ |
Accuracy classⅠ(0.4%t) |
Ⅱ |
Accuracy classⅡ(0.75%t) |
Ⅲ |
Please note in the brackets for special accuracy requirements Example:Ⅲ(0.3%t)indicate:tolerance range 0.3%t |
11Insertion depth(if any) | |
U |
(mm) |

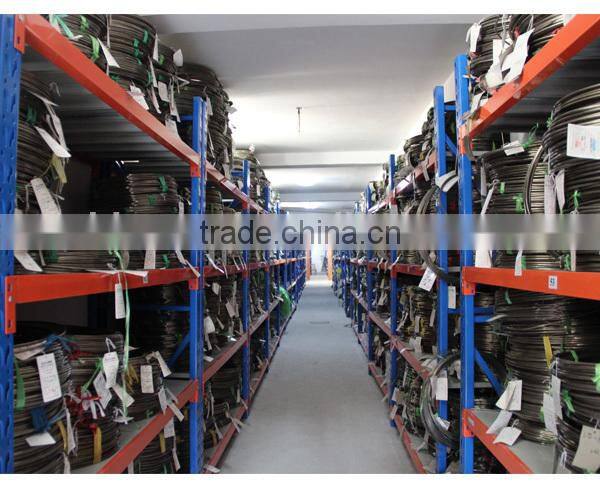

Ningbo Auqi Auto-Instrument Equipment Co., Ltd was established in 1996 which is one of the earliest manufactures of sheathed thermocouple, the largest sheathed materials producers in China and the largest temperature elements exporting enterprises in China, With a 50% domestic market share. specializing in thermocouple,RTD,Electrical Heat Equipment ,thermoresistor,MgO Cable for thermocouple,other sheathed thermocouple materials etc,mainly exporting to North America, Europe, Canada, Japan, Korea and etc.After 16 years’ hard work and innovation, ”Auqi” has become a leading company in the felid of producing instruments in China and successively become a standing director unit of Instruments Material Branch of China Instruments Manufacturers Association, a director unit of China Temperature Instruments Association and China Nuclear Industry Association.
Contact Person:Ms.Eunice Chou
Tel:+86-574-87632806
Fax:+86-574-87635309
Mob:+86- 18167239056
Thank you for your view and welcome to contact with us.
