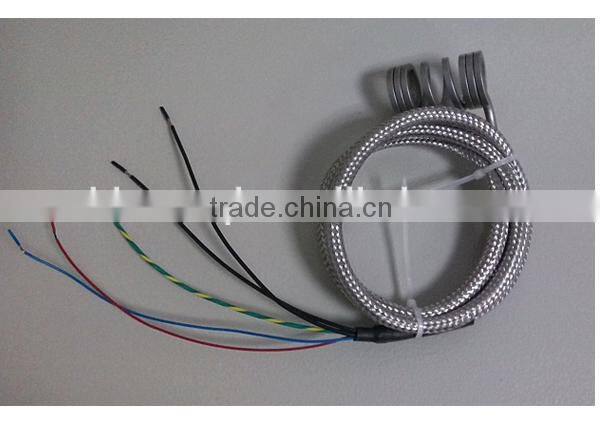

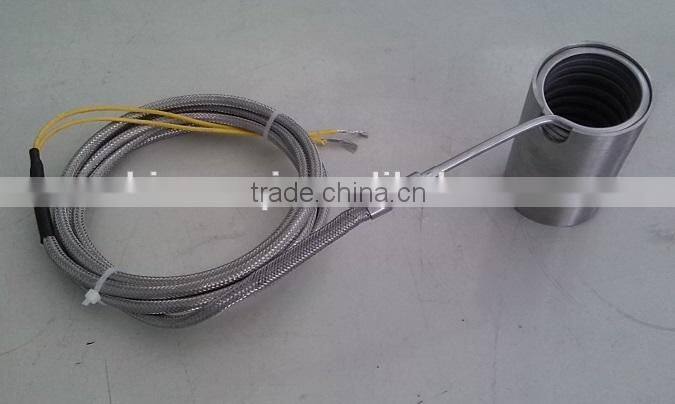

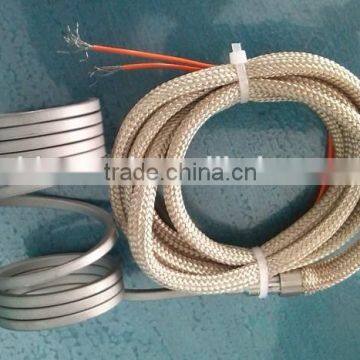

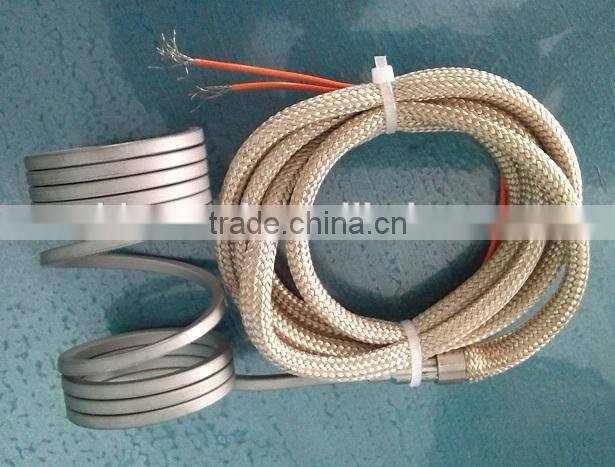

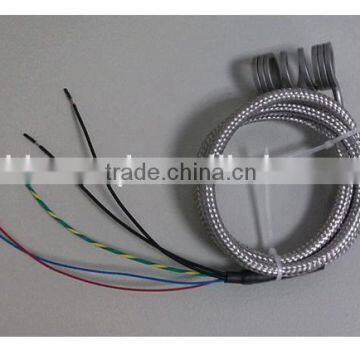

Coil Heater With/without Thermocouple
| heating material: | 304,316 or others |
| Insulation material : | MgO |
| Voltage : | 220V/customized |
| Wattage: | 350W/customized |
| Dimension : | Customized |
| Thermocouple : | J/K type Included |
| temperature : | 700deg |
| Usage : |
Plastic injection mould .
|
| Warranty : | 1 year |
| heating element | flat or round |
Technical specs of thermocouple coil heater:
Sheath Material |
Cr Ni-Steel |
Insulation Material |
MgO |
Resistance Wire |
Ni Cr 80-20 |
Maximum Sheath Temperature |
700°C |
Die Electrical Strength |
800V A/C |
Insulation |
> 5 M W |
Thermocouple |
J type (Standard) or K type |
Length Tolerance (Straight) |
5% |
Wattage Tolerance |
+ 10% (+ 5% Available Upon Request) |
Resistance Tolerance |
+ 10% (+ 5% Available Upon Request) |
Unheated Length |
35mm (Standard) |
Dimensional Tolerance |
Coil I.D + 0.1 to 0.2mm |
Coil Length + 1mm |
Ningbo Auqi Auto-Instrument Equipment Co., Ltd was established in 1996 which is one of the earliest manufactures of sheathed thermocouple, the largest sheathed materials producers in China and the largest temperature elements exporting enterprises in China, With a 50% domestic market share. specializing in thermocouple,RTD,Electrical Heat Equipment ,thermoresistor,MgO Cable for thermocouple,other sheathed thermocouple materials etc,mainly exporting to North America, Europe, Canada, Japan, Korea and etc.After 16 years’ hard work and innovation, ”Auqi” has become a leading company in the felid of producing instruments in China and successively become a standing director unit of Instruments Material Branch of China Instruments Manufacturers Association, a director unit of China Temperature Instruments Association and China Nuclear Industry Association.
