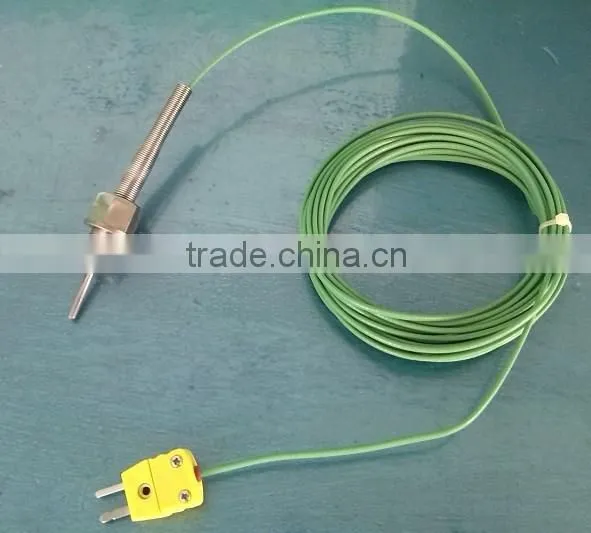

k Type Thermocouple With Male Connector

Name: k Type Thermocouple With Male Connector
Brand: AUQI
SKU: 125565629
Availability: InStock

US$ 10 - 26 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

AUQI

Model Number:

WRKK-130

Ningbo Auqi Auto-Instrument Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo ShangHai GuangZhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name AUQI

Model Number WRKK-130

Usage Industrial

Theory Temperature Sensor

Accuracy class 1

Temperature Range 0-1000

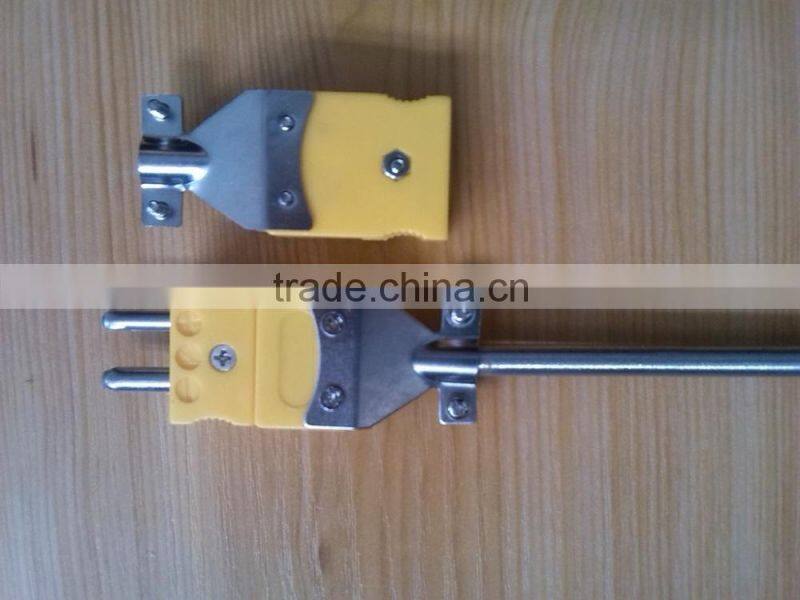

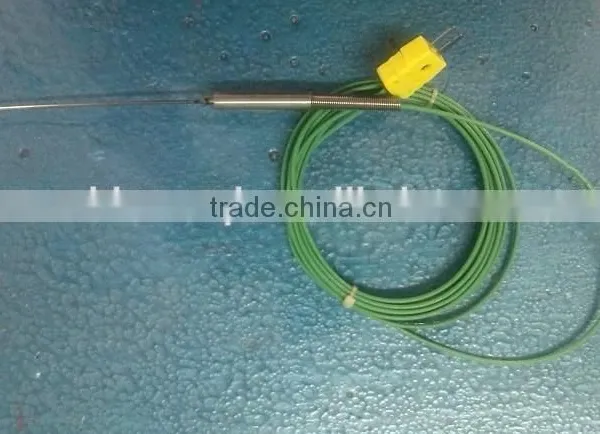

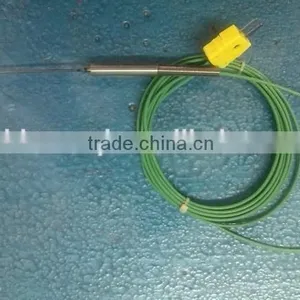

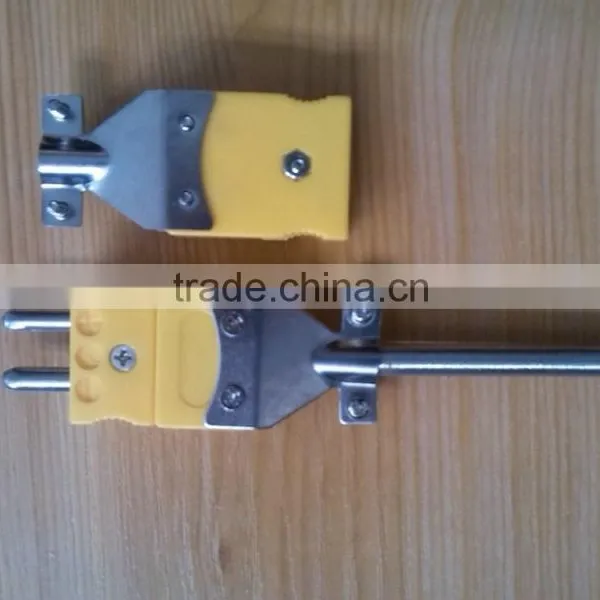

K Type Thermocouple with male connector

Product Description

1 Thermocouple graduation
B	B type 600---1700°C
R	R type 0---1600°C
S	S type 0---1600°C
N	N type 0---1100°C
K	K type 0---1000°C
E	E type 0---800°C
J	J type 0---750°C
T	T type -40---350°C
P	P t type -200---600°C
C	Cu type -200---100°C

7 Outer protection sleeve material code
A	1Cr18Ni9Ti (or SS321)
B	0Cr18Ni9 (or SS304)
C	0 Cr18Ni12Mo2Ti (or SS316)
D	0Cr25Ni20 (or SS310)
G	Nickel-based heat resistant and anti-corrosion alloy (or Inconel600)
HB	Hastelloy Alloy B-2
HC	Hastelloy Alloy C-276
MK	Monel K-500
TP91	ASTM A335P91
TP92	ASTM A335P92
TP11	A691Cr1-1/4CL22
TP22	A691Cr2-1/4CL22
W	Wb36 (or 15NiGuMoNb5)
E	00Cr22Ni5Mo3N (double-phase stainless steel 2205)
F	PTFE
Others	Others (or ordered material)

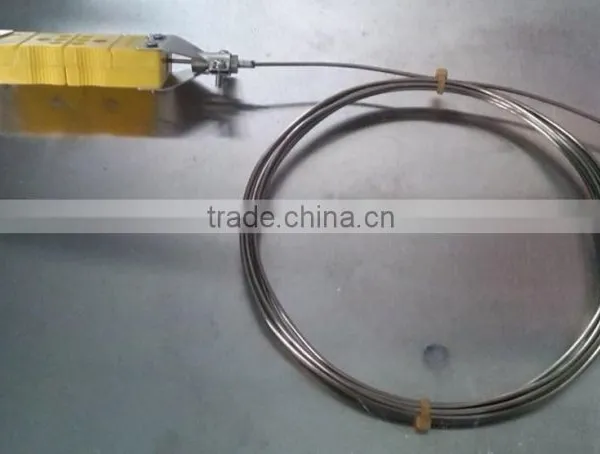

8 Mineral Insulated thermocouple (RTD) diameter
05	Φ0.5
10	Φ1
20	Φ2
30	Φ3
40	Φ4
50	Φ5
60	Φ6
80	Φ8
95	Φ9.5
127	Φ12.7
9 Total length
L	(mm)
10 Accuracy class
Ⅰ	Accuracy classⅠ(0.4%t)
Ⅱ	Accuracy classⅡ(0.75%t)
Ⅲ	Please note in the brackets for special accuracy requirements Example:Ⅲ(0.3%t)indicate:tolerance range 0.3%t
11Insertion depth(if any)
U	(mm)
