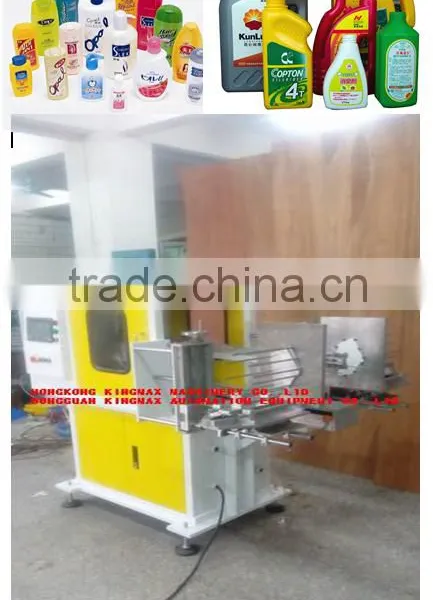

Help CenterBottle Mold Labeling Machine
Related Products
the top&best quality bottle inmold labeling machine manufacturer in the world!
Features:
•opened program design,wider application,can match with more models of blow molding machine;
•adopt touch screen operation,different language operation is optional;
•easy operation,can stop at any position,increase labeling efficiency;
•adopt SMC advanced vacuum technology,make action much more reliable and stable;
•adopt servo driven system,can set speed for each section accordingly;
•adopt Hiwin guide rail and lead screw;
•adopt Schneider electric device;
•system work status and all input output information are displayed on screen,easier to judge and check.
•with perfect protection function,and can set many kind of function;
•this equipment with perfect program self-diagnostics system.
Technical parameter
–machine dimension:(LWH)1650mm X 920mm X 1280mm
–main stroke:X Axis:1000mm
–Max.speed:X Axis:3000r/min
–control Axis number:X Axis automatic control,Z Axis automatic control,Y Axis mechanical adjusting.
–arm open sucker width:420mm(adjustable)
–arm close sucker width:(adjustable)
–kind of drive:servo motor
–Total Power:1.1KW
–power source:220V 50Hz
–air pressure source:0.2-1Mpa
