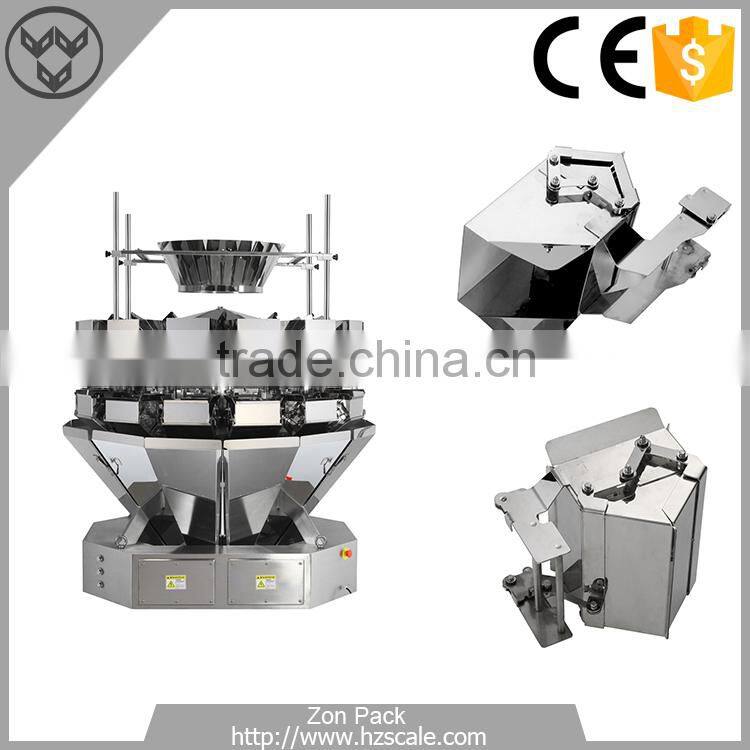

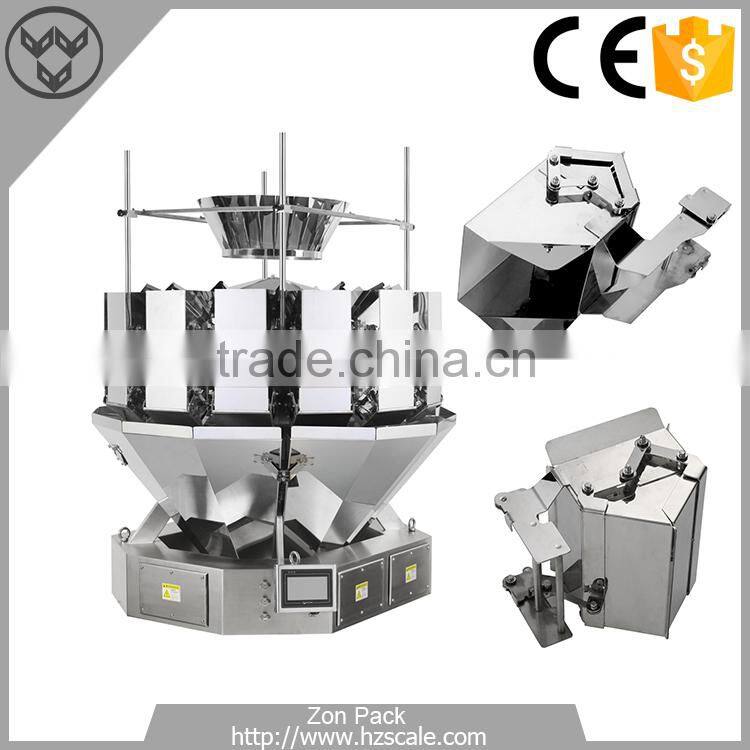

Automatic Dried Mango Combination Weigher

Application

ZH-A14 is developed for precise and high-speed quantitative weighing packaging system. It is suitable for weighing big granule products, beans, nuts, fruits, vegetable and salad with large target weight or volume.

Main function

1. 5L hopper for big weight or volume product with wide weight range.

2. Vibrator modifies the amplitude basing on different target to make material down more equably and get higher combination rate.

3. High precise digital weighing sensor and AD module have been developed.

4. Modify hopper open speed and open angle basing on the characteristics of measured material can prevent material blocking the hopper.

5. Multi-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.

6. Material collecting process system with difference automatic identified and one drag two function can remove unqualified product and deal with material drop signals from two packaging machines.

7. Components which touch the material are all manufactured with stainless steel. Hermetic and waterproof design has been adopted for preventing particles entering and cleaning easily.

8. Different authority can be set for different operator, which is for easy management.

9. Multi-language operation system can be selected basing on customer’s requests.

10. High precision and high speed mode can be selected basing on customer’s needs.

Parameters

Model

ZH-A14

Weighing Range

10-3000g

Max Weigh Speed

70Bags/Min

Accuracy

±1-5g

Hopper Volume

5000ml

Driver Method

Stepper motor

Option

Timing Hopper/  Dimple Hopper/ Printer/ Rotary top cone

Interface

7(10)"HMI

Power Parameter

220V/2000W/ 50/60HZ/12A

Package Volume (mm)

2200(L)×1400(W)×1800(H)

Total Weight(Kg)

650
