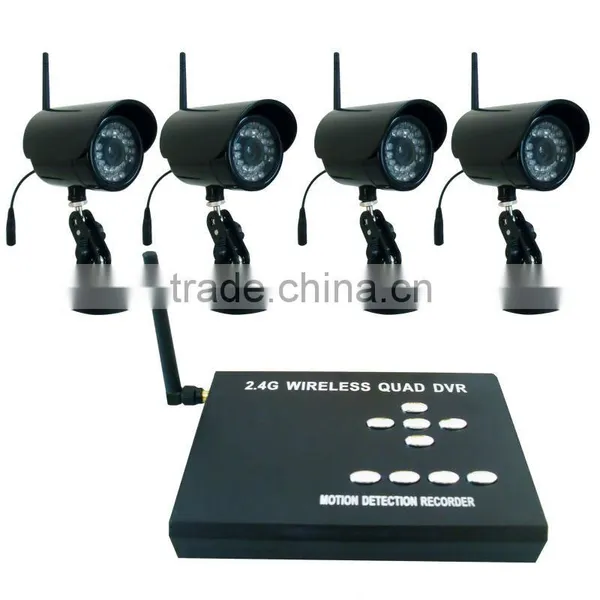

2.4G wireless digital night vision dvr camera

Specifications

video recording function
High definition CMOS image sensor
Motion detection video and photo function
4 Channel video

model: ZJ128DR4

Features:



*Support standard NTSC/PAL TV system video output
*Support single screen and 4 channel’s screen display simultaneously
*Support video recording function
*Support system information display in the screen(OSD)
*Support 32 GB SD Card
*Support real-time clock display
*High definition CMOS image sensor
*Motion detection video and photo function
*Support overwrite function
*Single and 4 Channel’s video and photo simultaneously
*Support record audio simultaneously when recording video in single scene
*Receiver with built-in wide power supply and stable voltage circuit, power can be from 6V-12V/500MA



Camera Specification:



Transmitter

Work Voltage  DC12V/500--1000MA

Frequency  2.4GHz ISM Digital public band

Transmit power  17dBm

Operating Range  Open field:150-250meters

Work Current No night vision:250MA MAX; With night vision:450MA MAX

Camera Resolution  0.3 Mega Pixel

Night vision range  6-10 meter

Operating Temperature  0°C~50°C



Monitor Specification:



Receiver:

Function  Description

Frequency 2.4G ISM Digital public band

Work method AFH and TDMA

Receiver Sensitivity -90dBm

Work Voltage  DC6-12V /1000MA

Standby current less than 250MA

Work current less than 500MA

Video output  1Vp-p CVBS

Video output system  PAL and NTSC

Video format

H264+PCM

Single screen status:512*384 @25fps

4 screen status:320*240 @12fps

Video playback Full screen single scene playback

Photo format  Single screen status:512*384 JPG

4 screen status:320*240 JPG

SNR 46dB

Operating Temperature 0°C~50°C

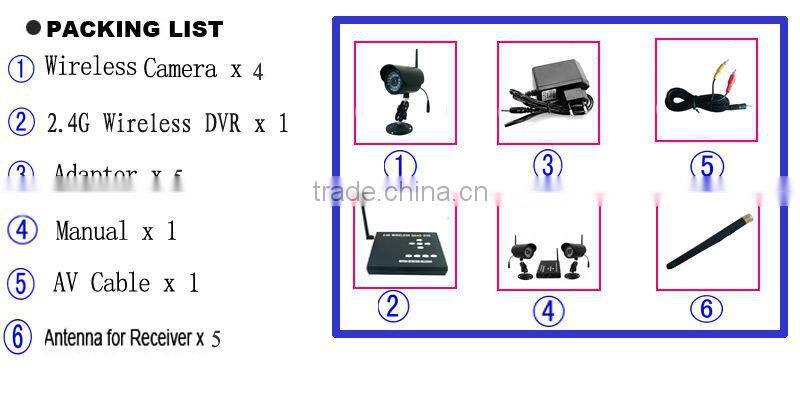

Standage Package Content:



Packing:



Gift Box Size:32x18x7.5cm

Carton Box Size:39x33x37cm

1 gift box:1 Unit

1 Carton Box:10 sets

Gross Weight:11kg/carton

Net weight:10kg/Carton

weight:1kg/Carton
