Wireless Mini Color CCD Audio Camera&cctv Camera Wholesale&4-channle Operation

Wireless Mini Color CCD Audio Camera&cctv Camera Wholesale&4-channle Operation thumbnail-1
Wireless Mini Color CCD Audio Camera&cctv Camera Wholesale&4-channle Operation photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GTW
Model Number:
ZJ901A
Contact Supplier Request Quote Chat Now
Shenzhen Gtw Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GTW
Model Number ZJ901A
Type Analog Camera
Style Mini Camera
Sensor CCD
Technology Pinhole
Special Features Other

Specifications

2.4GHZ,High quality Color CCD sensor
4-channel operation
Long operation range
Super Mini size
microphone for audiomonitoring

model: ZJ901A

Features:

*2.4GHZ,High quality Color CCD sensor for crisp, clear images
* Built-in microphone for audio monitoring
* 4-channel operation allows multiple (1-4) camera systems (optional)
* Long operation range: up to 100 m clear line of sight or 30 m throug walls/ceilings
* Compact, Lightweight and Super Mini size
* The receiver have auto-scan channel function after you press the channel switch button
until  the all four channel LED indicator light  flash



Camera Specification:



Frequency: 1CH:2414MHz,2CH:2432MHz,3CH:2450MHz,4CH:2468MHz

Imaging Sensor: 1/4 sharp CCD

Horizontal Resolution: 420 TV Line

CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)

View Angles: 62 degrees

Minimum Illumination: 0Lux / F1.5

Gain Control: Automatic

Transmission Power: 10mW

Consumption Current: 80 mA

Modulation Mode: FM

Bandwidth: 18M

Operating Range: 30m/100m (Obstructed / Unobstructed)

Power: DC 12V Battery

Operating Temperature: -10oC ~ +40oC

Operating Humidity: 85%RH

Dimension(WxLxH): 30x30x52mm

Weight: 65 g



Monitor Specification:



Frequency: ISM 2,400 - 2,483MHz

Antenna: 50ohm SMA

Channel: 1-4 (Flip-type switch)

Intermediate Frequency: 480MHz

Frequency Stabilization: +/- 100KHz

Demodulation Mode: FM

Receiving Sensitivity: less than -85dBm

Video Output: 1Vp-p@75 ohm, S/N>38dB

Audio Output: 1Vp-p@600 ohm

Power:DC 9V/12V

Operating Temperature: -10oC ~ +40oC

Operating Humidity: 85%RH

Dimension(WxLxH): 91x80x22mm

Weight: 150g

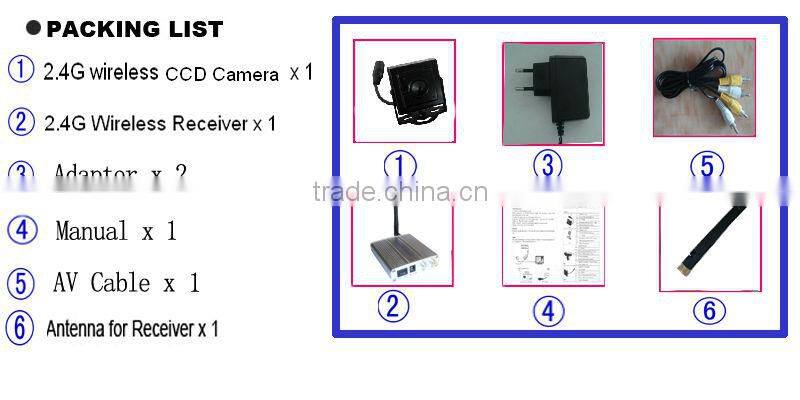

Standard Package Content:

  wireless mini color CCD audio camera&cctv camera wholesale&4-channle operation



2.4GHz Wireless Color Camera with Built-in Microphone

2.4GHz Wireless Flip-type 4-channel AV Receiver

Antenna for Receiver

AV cable

12V Power Adaptor for Camera

9V Power Adaptor for Receiver

Swivel Bracket for Camera



Packing:

wireless mini color CCD audio camera&cctv camera wholesale&4-channle operation





Gift Box Size :  19.5x18x8                     cm

Carton Box Size: 41.5x37.5x42                cm

1 gift box : 1 Unit

1 Carton Box : 20 sets

Gross Weight : 14            kg/ carton

Net weight :    13                     kg/Carton

Net weight :    0.65                    kg/Carton
