Details of USB Earscope Camera
2. Application area

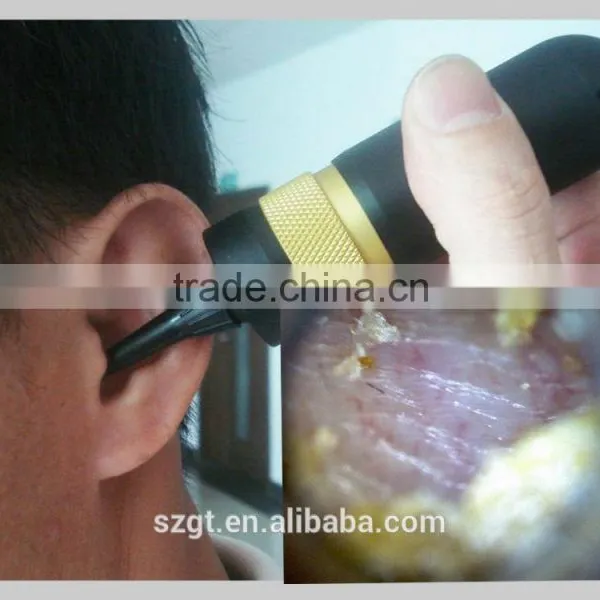

Checking the external ear canal & eardrum
Take pictures, camera shooting and image storage. Print.
Support send images to remote medical service network through Internet.
3.Features
1600*1200 high definition color CMOS Sensor
6 white LED
USB2.0port
The clearness of the LED Fill Light can be adjusted
No need driver and installation of automatic identification
Support Windows ME/ Windows 2000/Windows XP/ Windows Vista / Windows 7 system
4.Key illustration
5..Operation instruction
1:Insert USB line to your PC, Your PC will tip you( find a new hardware )and it will install the driver automatically . After tip (new hardware already installed), the below icon will appear :
Double click icon to preview pictures and take photos, also can take photos manually through the USB line's button.
2:Adjust LED light knob to the suitable degree.
3:Adjust focus knob to make image clear, focus adjustment 3---20MM
3-1 Turn focus-ring to adjust focus distance.
3-2 Move the USB Otoscope camera back and forth to confirm the best clear focus.
3-3 Push the focus-ring back and forth, adjust focus distance slowly.
Combine to use the above three methods and get the best focus effect.
Ear canal shape is curve,for a better visual, we advise you gently pull the ear by hand and make it unbend, that's good for inspection eardrums.
Please ask for help from others if feel hard by yourself operation.Take pictures when necessary.
6.Electrical specification
Name |
item |
Product's details |
Camera specification |
Magnification |
50 times |
resolution |
1600*1200 |
|
USB |
2.0 |
|
Chip size |
1/6 inch |
|
focus |
3—20MM |
|
LED |
White light |
6 pcs |
