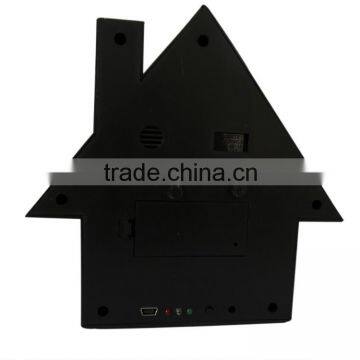

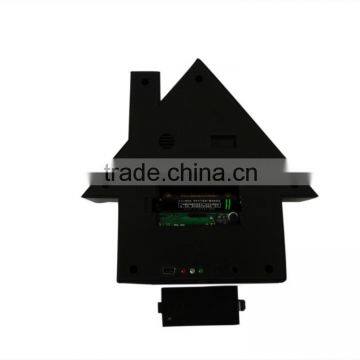

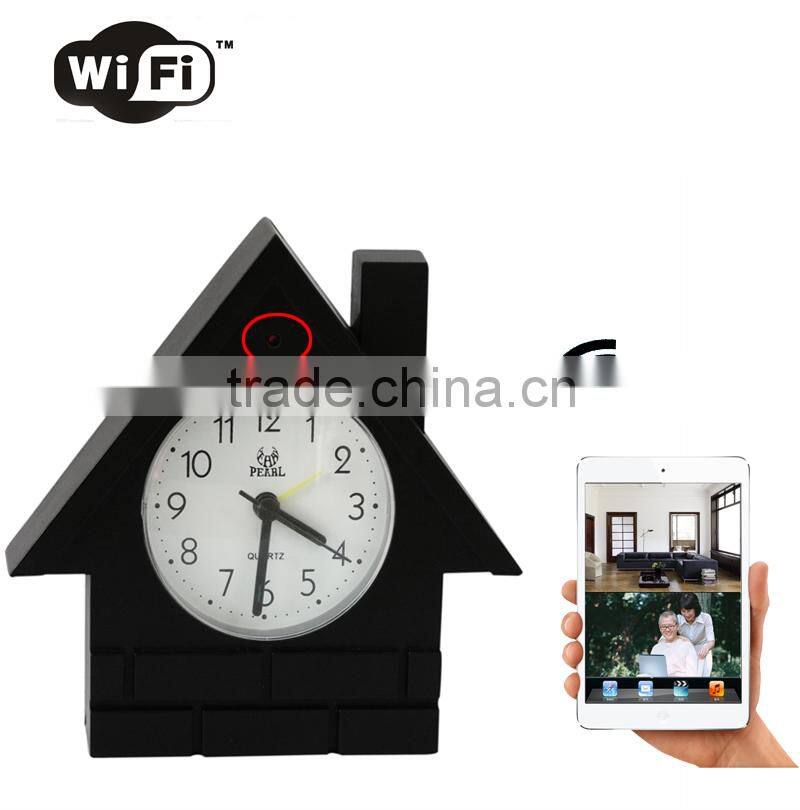

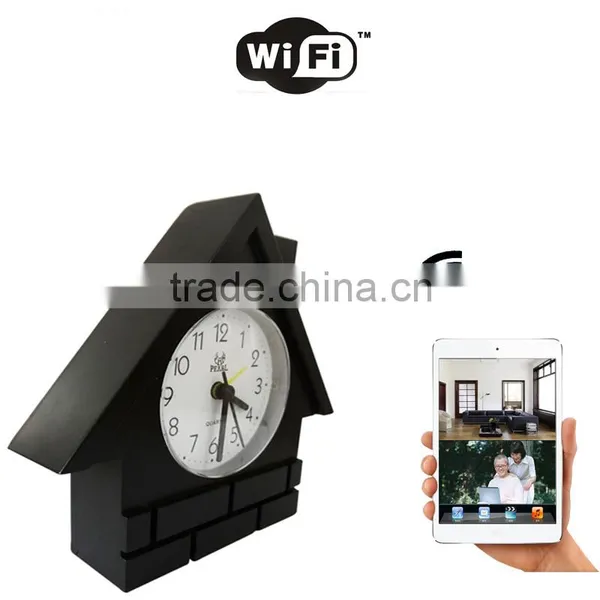

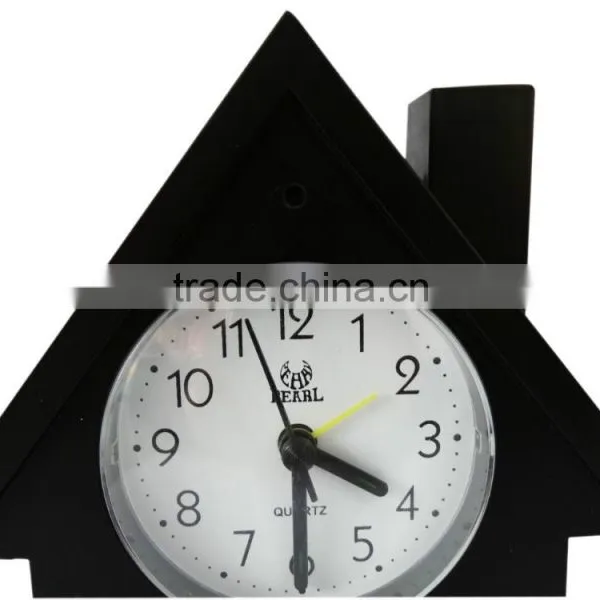

720P WIFI Mini Clock Camera Family Network Camera Remote Monitoring

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

GTW

Model Number:

ZJ335R-Wifi

Shenzhen Gtw Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name GTW

Model Number ZJ335R-Wifi

Type IP Camera

Style Mini Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

Features

l Support IEEE802.11b/g/n Standard;

l Support local video 720P,you can remotely download local video to mobile phones;

l Support video and audio recording simultaneously on Camera and PC device, but no sound on your phone);

l Support mobile phones and tablet with android and Apple system;

l Support 32G SD card;

l HD 1.3 Mega Pixel CMOS image sensor;

l Support loop override function;

l Support WIFI point to point and remote viewing and recording;

Electrical parameters

Function	Description
Operating Frequency	2.400—2.4835GHZ
Wireless standard	IEEE802.11b/g/n
Modulation mode	DBPSK,DQPSK,CCK,OFDM,16QAM,64QAM
Encryption mode	64/128WEP,WPAPSK/WPA2PSK,TKIP,AES
Receiver sensitivity	130M:62dbm@10%PER 108M:65dbm@10%PER 54M:68dbm@10%PER 11M:86dbm@8%PER 6M:88dbm@10PER 1M:90dbm@8PER
Transmit power	<15dbm(ERIP)
Transmission distance	Open area:30-50 meters(point to point)
Operating voltage	DC5V /1000MA
Operating current	No night vision:300MA MAX ,night vision control:480MA MAX,charging current:200MA MAX
Recording format	Local video:720P(1280*720),AVI format
Recording format	Mobile client:quality priority is480264,speed priority is 320176 The computer set consistent with the mobile client
Photo format	Mail photo is 320*176JPG
SNR	46dB
Camera resolution	1.3 million pixels
Night vision distance	3-5 meters
PC software system	Support win xp win7
