Wireless Cctv Super Mini Camera

Specifications

 Details of Wireless cctv super mini camera

 Features:
*Support standard NTSC/PAL Video in/out
*Photo(JPGE) and AVI(AVI)
*supportable OSD
*support remote control
*Support 32MB-16G SD card The 16G SD card memory 250000pictures(high resolution)150000 videos(one in 5-30 seconds)
*Support real-time display
*CCD/CMOS image sensor
*45 IR light, long distance ofnight vision
*Limited IR techinc, increase the time of life span.
*No limitation of the time of record, circulation of record
*Setup motion detect, set sensitivity value
*detect and playback selectable; supportable six picture display in playback mode
*picture pixels: 640*480 VGA
*AVI pixels: 320*240 QVGA

Camera Specification

Video:  PAL/NTSC

Imageing sensor ;CCD/CMOS

Horizontal resolution :380/420 TV line

Lens : standard 3.5 -10 mm/F1.4 adustable

Minimum illumination  0LUX  the LED turn on

The LED count :45

The night vision range :20-50meters

Image format :JPEG

Image pixels :640*480VGA

Video format:AVI

Video pixels :320*240 QVGA

Video  subsection REC time :5-30seconds adjustable

Video output level : 0.7-1.2Vp-p@75¦¸

SD card :32M -16GB

Work voltage :12V

Work electronic currenr : ¨Q650MA

Remote control distance :15-30 meters without block

Remote control work voltage : 12V 13A battery

Standby time current : ¨Q3uA

Operateing temperature:-20¡æto 50¡æ

Storage temperature :-40¡æ to 85¡æ

Remark:

¡ñ Use 16GB SD card to storage surveillance recording .the  regular use unicyclic REC time is :24  to 48 days  .

¡ñ Use 16GB SD card storage surveillance the image  . the regular use unicylic  photo time :120 days

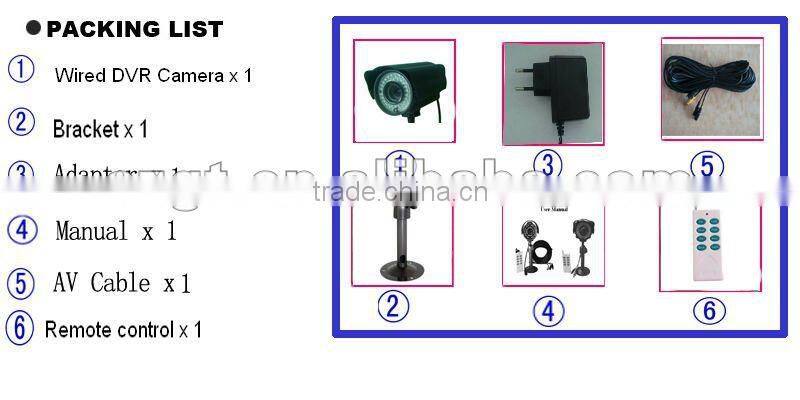

Standard Package Content
