2.4G Wireless CMOS Super Mini Size Camera Audeo and Video CCTV Camera

2.4G Wireless CMOS Super Mini Size Camera Audeo and Video CCTV Camera thumbnail-1
2.4G Wireless CMOS Super Mini Size Camera Audeo and Video CCTV Camera photo-1
US$ 20 - 21 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GTW
Model Number:
ZJ811B
Contact Supplier Request Quote Chat Now
Shenzhen Gtw Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GTW
Model Number ZJ811B
Type Analog Camera
Style Hidden Camera
Sensor CMOS
Technology Pinhole

2.4G wireless CMOS super mini size camera audeo and video CCTV camera

Features:

* 2.4GHz pinhole lens camera ,High quality Color CMOS sensor for crisp, clear images
* Built-in microphone for audio monitoring
* 4-channel operation allows multiple (1-4) camera systems (optional)
* Long operation range: up to 100 m clear line of sight or 30 m throug walls/ceilings
* Camera with AC or Battery operated for portability
* Compact, Lightweight and Super Mini size
* Swivel bracket included for wall /ceiling mounting
* This receiver should push the channel select button to choose channel



Camera Specification:



Frequency: 1CH:2414MHz,2CH:2432MHz,3CH:2450MHz,4CH:2468MHz

Imaging Sensor: 1/3 inch OMNIVISION Color CMOS

Horizontal Resolution: 380TV Line

CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)

View Angles: 62 degrees

Minimum Illumination: 2.0Lux

Gain Control: Automatic

Transmission Power: 10mW

Consumption Current: 80 mA

Modulation Mode: FM

Bandwidth: 18M

Operating Range: 30m/100m (Obstructed / Unobstructed)

Power: DC 8V ;built-in li-battery

Operating Temperature: -10oC ~ +40oC

Operating Humidity: 85%RH

Dimension(WxLxH):23x23x46 mm

Weight: 20g



Monitor Specification:



Frequency: ISM 2,400 - 2,483MHz

Antenna: Omni-directional antenna

Channel: 1-4 (Flip-type switch)

Intermediate Frequency: 480MHz

Frequency Stabilization: +/- 100KHz

Demodulation Mode: FM

Receiving Sensitivity: less than -85dBm

Video Output: 1Vp-p@75 ohm, S/N>38dB

Audio Output: 1Vp-p@600 ohm

Power:DC 9V/12V

Operating Temperature: -10oC ~ +40oC

Operating Humidity: 85%RH

Dimension(WxLxH): 110x80x20 mm

Weight: 130g

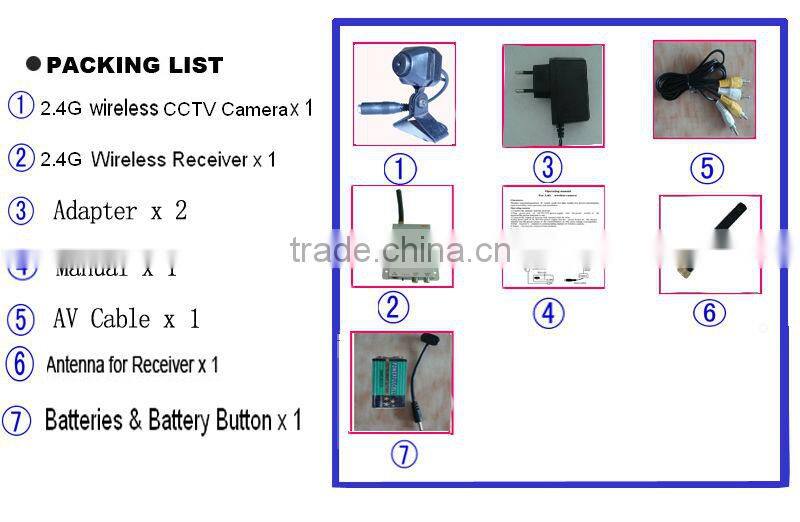

Standard Package Content:

 2.4G wireless CMOS super mini size camera audeo and video CCTV camera



2.4GHz Wireless Color Camera with Built-in Microphone

2.4GHz Wireless Flip-type 4-channel AV Receiver

Antenna for Receiver

AV cable

8V Power Adaptor for Camera

9V Power Adaptor for Receiver

9V battery buckle

Swivel Bracket for Camera
