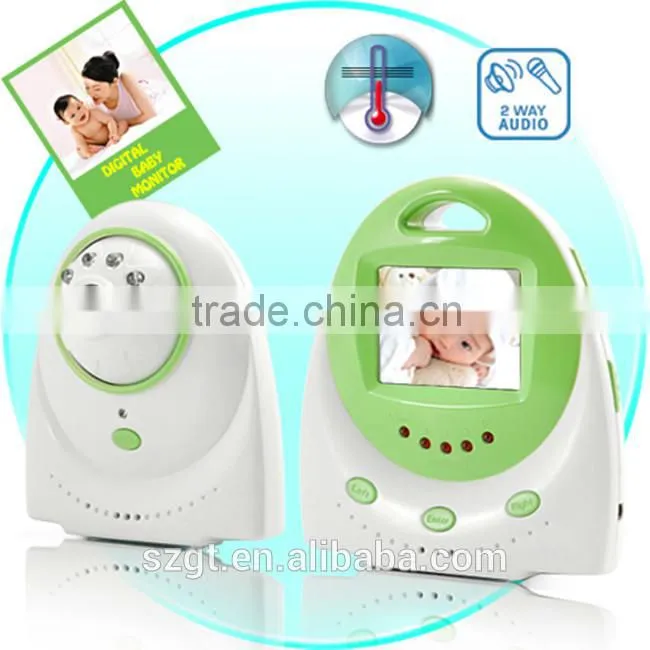

Full Color Screen Pink Green Color Two Ways Talik Wireless 2.4G Baby Monitor

Full Color Screen Pink Green Color Two Ways Talik Wireless 2.4G Baby Monitor thumbnail-1
Full Color Screen Pink Green Color Two Ways Talik Wireless 2.4G Baby Monitor thumbnail-2
Full Color Screen Pink Green Color Two Ways Talik Wireless 2.4G Baby Monitor photo-1
Full Color Screen Pink Green Color Two Ways Talik Wireless 2.4G Baby Monitor photo-2
US$ 48 - 49 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GTW
Model Number:
ZJ825M-09
Contact Supplier Request Quote Chat Now
Shenzhen Gtw Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GTW
Model Number ZJ825M-09
LCD Size Other, 2.4 inch

Full Color Screen Pink Green Color Two Ways Talik Wireless 2.4G Baby Monitor

Product Description

 Features:

*Frame Rate:15-25 FPS
*Support digital zoom(4MAX)
*Two- way lntercom Function
*Support voice control function
*Display temperature and time

*4 Channels can be selectable

*TV output function

*Play cradlesong for the baby
*Total pixels: 300K VGA
*Size of LCD: 2.4" TFT
*Pixels of picture: 320*240VGA
*Distance:150m-200m without bolck



Product display:

Full Color Screen Pink Green Color Two Ways Talik Wireless 2.4G Baby Monitor

Camera Specification:

 -Frequency Range:2400GHz ~ 2483GHz Digital
-Image sensor:1/3 CMOS color
-Resolution:320*240
-Channel Channel 1 ~ 4 selectable
-Antenna Built-in antenna
-Operation Range Transmission Range: 300 feet in clear line of sight
-Operating Environment: 0°C ~ 40°C (32°F ~ 104°F)
-Power:DC 6V 500mA (Incl.)
-Battery 4 x 1.5V AA size battery (option) (Battery Life: 3 hrs (continue transmission )





Monitor Specification:

-FrequencyRange 2400GHz ~ 2483GHz Digital
-Display Type 2.4inch diagonal Color TFT LCD
-Channel:Channel 1 ~ 4 for selectable
-Antenna:nternal omni-directional
-Operation Range Receiving Range: 300 feet in clear of sight
-Operating Environment 0°C ~ 40°C (32°F ~ 104°F)
-Power:DC 6V 500mA (Incl.)
-Battery 4 x 1.5V AA size battery (option) (Battery Life: 3 hrs (continue receiving))
-Microphone/speaker Build in


Parameters:



a: Function



Function

Description

Frame Rate

15-25 Frame,Signal strong,frame high

Signal strength indication

6 grade

Voice Volume

10 grade

Talkback

Two-way talk,half-duplex

VOX

Switch on automatically when there is voice

One monitor with 4 transmitter

One receiver with 4 cameras,switch CH display



Temp Alarm

Yes

Realtime clock

Yes,24 hours system

Temperature display

Yes

Music Player

Yes

LCD Size

2.4inch 320*240 RGB color LCD

Transmission safety

Use after pair code



b: Electrical parameters



Work Voltage

DC:+6V/500MA;Battery:4*AAA=1.5*4

Frequency

2.4GHz ISM Band

Wireless Work Method

FHSS

Transmission Power

19dBm@CW mode

Transmission rate

3Mbps

Operating Range

Open field:200-300 meter

Work current(Transmitter and receiver)

TX:300mA MAX,RX:300mA MAX

Work current for Auto sleep

TX:35mA(once every 0.5s)RX:20mA(once every 0.5s)

Audio rate

16K

Audio range

120Hz~3KHz

Sleep music funtion

12 musics looping

Temp Alarm

 below 10℃ or above 36℃

VOX Power

-60dB@ MIC Input

Camera resolution

0.3 Mega

Picture resolution

320*240QVGA

AV OUT function

5-15 frame VGA from AV Output

Video Rate

15-25FPS

Total harmonic distortion

<5.0%

SNR

46dB

Receiving Sensitivity

-96dBm@BER=1e-3

Speaker

0.25W

Night vision range

2—3 meters

Operating Humidity

20~95%

Operating Temperature

0℃~38℃





Packaging & Shipping

 Packing Details:

 -Gift Box Size:32x18x7.5cm;
-Carton Box Size:39x33x37cm;
-1 gift box:1 Unit;
-1 Carton Box:10sets;
-Gross Weight:7.5kg/carton;
-Net Weight:6.5kg/Carton;
-Weight:0.65kg/Carton;

Full Color Screen Pink Green Color Two Ways Talik Wireless 2.4G Baby Monitor

Shipping:

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!







Payment:



We support Paypal, T/T, Alibaba Escrow, Western Union, Money Gram payment. Or according to your request.
