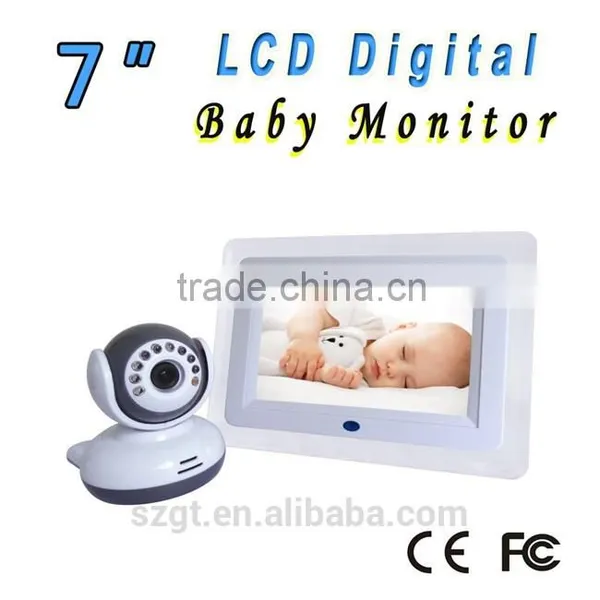

7 inch LED baby monitor LCD baby monitor home

Features Of Exported baby products

model: ZJ970

Features:

*Adopt 2.4GHz Frequency transmission,accord with FCC, CE Standard;

*With high resolution 7” LCD display screen;

*Have a operational text menu display function;

*Support one receiver to connect 4 transmitters;

*Long-distance transmission: Up to 200-300m in open air;

*Day and night monitoring with clear images for 24 hours;

*Half-duplex Voice Transmission,Voice clear, volume of sound (0~10) is adjustable;

*VOX Activate function,when the volume of baby sound or happened in baby room is beyond the volume of VOX sensor, monitor will be activated (The screen in dormant state then automatically turn on with sound), to remind parents to pay attention to baby.

*Monitor with TV Out function, support TV display;

*Camera and receiver use lithium batteries, convenient for mobile use;

*With pairing code (or registering) function: make pairing through the pairing code buttons of monitor and camera;

Camera Specification

Specification
Model Name Camera unit
FrequencyRange 2400GHz ~ 2483GHz Digital
Image sensor  1/3 CMOS color
Resolution 320*240
Channel Channel 1 ~ 4 selectable
Antenna Built-in antenna
Operation Range Transmission Range: 300 feet in clear line of sight
Operating Environment 0°C ~ 40°C (32°F ~ 104°F)
Power  DC 5V 1000mA (Incl.)
Battery 4 x 1.5V AA size battery (option) (Battery Life: 3 hrs (continue transmission))
Dimensions (H x W x D)
Weight
LED Indication Power On/Off, Battery status
Lens & Angle f 6.0mm, F=2.0
Microphone/speaker Build in
Night Vision 6 x IR LED; detection by sensor brightness

Monitor Specification

Specification
Model Name LCD Display unit
FrequencyRange 2400GHz ~ 2483GHz Digital
Resolution 7”: 800*480
Display Type 7” diagonal Color TFT LCD
Channel Channel 1 ~ 4 for selectable
Antenna  Internal omni-directional
Operation Range Receiving Range: 300 feet in clear of sight
Operating Environment 0°C ~ 40°C (32°F ~ 104°F)
Power  DC 12V 1000mA (Incl.)
Battery 4 x 1.5V AA size battery (option) (Battery Life: 3 hrs (continue receiving))
Microphone/speaker Build in
Weight
LED Indication Power On/Off, Battery status
Security ID code Yes

Packing
