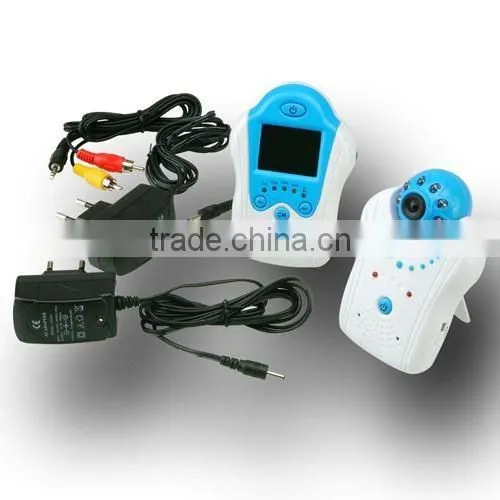

2.4GHz Analog Baby Monitor/audio Baby Monitor

2.4GHz Analog Baby Monitor/audio Baby Monitor thumbnail-1
2.4GHz Analog Baby Monitor/audio Baby Monitor photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GTW
Model Number:
ZJ605
Contact Supplier Request Quote Chat Now
Shenzhen Gtw Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GTW
Model Number ZJ605
LCD Size 1.8 inch

Details  of 2.4GHz analog  baby monitor



 Features

 * Palm size monitor for mobility
* High quality Color CMOS sensor for crisp, clear images
* Built-in microphone for audio monitoring
* Have 6 Infra-red LED on the camera for Nightvision (Day & Night Uses)
* 4-channel operation allows multiple (1-4) camera system
* Long operation range: up to 100M clear?line-of-sight or 30M through obstructions (walls/ceilings)
* Ideal for Baby/Children Room Monitoring

Camera Specification



Frequency: 1CH:2414MHz,2CH:2432MHz,3CH:2450MHz,4CH:2468MHz
CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
6 infrared LED  with 5m nigh vision range
Horizontal Resolution: 380 TV Line
View Angles: 62 degrees
Minimum Illumination: 1.5Lux / F1.5
Gain Control: Automatic
Modulation Mode: FM
Bandwidth: 18M
Power: DC 5V Battery
Operating Temperature: -10oC ~ +40oC
Antenna: Built-in omni-directional antenna
Lens: f6.0mm F 1.5





Monitor Specification


Frequency: ISM 2,400 - 2,483MHz
Channel: 4 selectable channels
CMOS Total Pixels : 628x582(PAL)510x492(NTSC)
Display : 1.5'' LTPS-TFT LCD
Demodulation Mode: FM
Power: DC 5V Battery
Operating Temperature: -10oC ~ +40oC
Display colors : Full- color

Power: DC 5V ,500mA or  li-batteries
Antenna: Built-in omni-directional antenna
Dimension(WxLxH): 35X769.5x105 mm
Weight: 150g
