Davit for launching Life Rafts and Rescue Boats

FOB Price

US$ 1 - 2 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Gathering
Model Number	XH-LD

Product Description

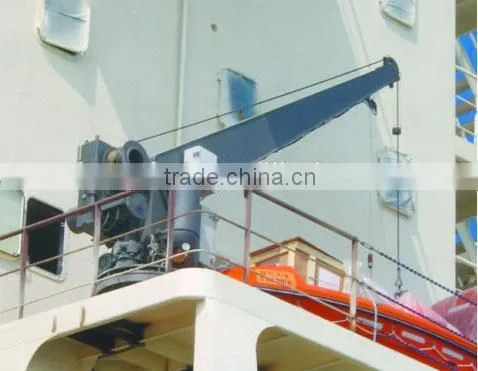

Davit for launching Life Rafts and Rescue Boats

Specification

The Single Arm slewing Boat/Raft Davit is mainly used for lifting&lowering Rescue Boat/Liferaft .Additionally, it’s also

acted as crane bassed on client’s requirement The Davit confirms to the requirement of the Amendments to SOLAS 1996-MSC.47(66). International LSA Code MSC.48(66). IMO Resolution MSC81(70) etc.

The boat is lowered by means of remote control,that the crew can release and stop the hand brake of winch from

inside of the boat via wire connection to the brake arm and wire spoil on the winch.Alternatively the crew can operate

the hand brake on the deck.

A permanently mounted motor on the winch is used for hoisting the boat back to the stowed position.

Certification:CCS/ABS/BV/EC

Technical data

Particulars Model	GR-SAP21	GR-SA21A	GR-SAF23	GR-SA25	GR-SA30	GR-SA35
S.W.L (Kn)	21	21	23	25	30	35
Hoisting Load (Kn)	14	21	14	25	30	21
Slewing Load (Kn)	14	21	14	25	30	21
Slewing Radius (m)	3.5~7.5m	4~5m	5~7m	4~5m	4~5.8m	4~4.5m
Total weight (kg)	~2800	~2800	~3200	~3200	~3300	~3350
Suitable Boat	For Rescue Boat&Life Raft&Crane

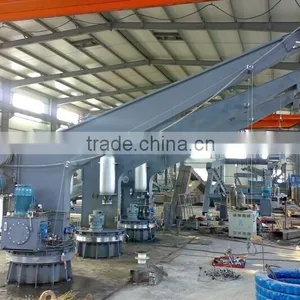

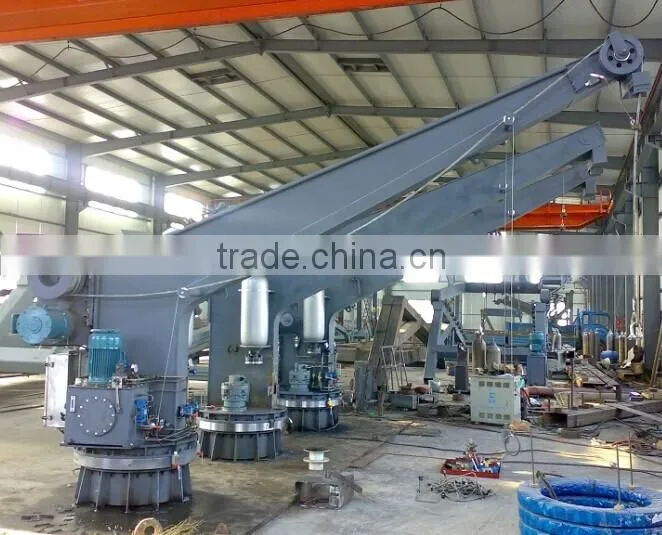

Pictures
