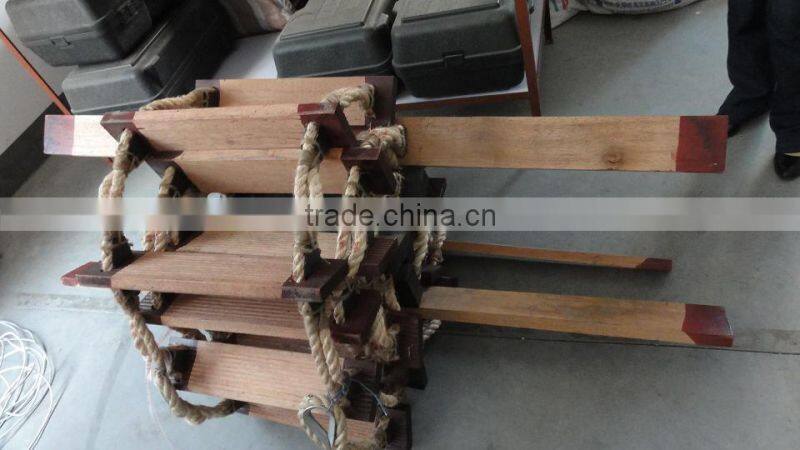

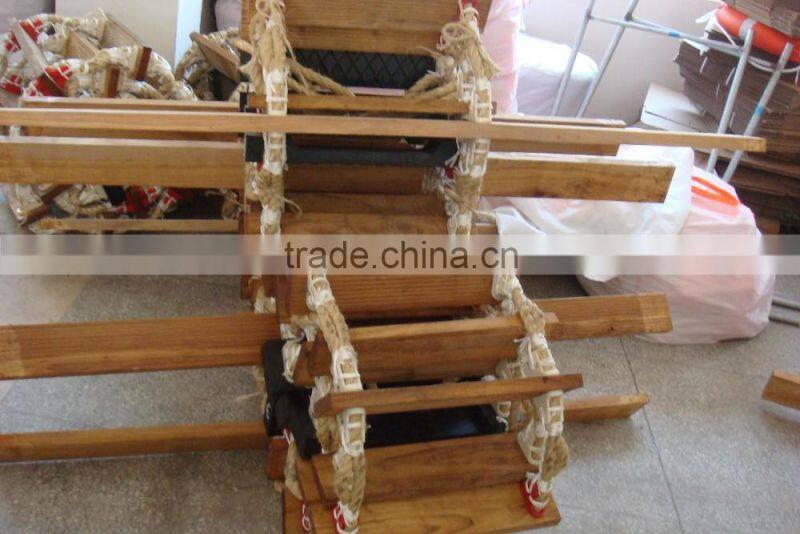

Folding Pilot’s Rope Ladder
The Pilot Rope Ladder is equipped in the embarking place of the life raft and boat, for pilots to board and leave the vessels.
The lowest 4 steps are rubber plates with steel lining; The count-down fifth plate is spreader step, and there are 8 short boards between two neighboring spreader steps
The distance between two neighboring steps about:333mm
Type:ISO799-LX-SX
Product Inspection Standard:
1.MSC.308(88) Adoption of Amendments to the international convention for the safety of life at sea,1974,as Amended
2.IMO A.1045(27) Pilot Transfer arrangements
3.ISO799:2004 Ships and marine technology-Pilot ladders
Certification:EC&CCS
Pilot Rope Ladder Specification
Name |
Size (mm) |
Orifice |
Material |
|

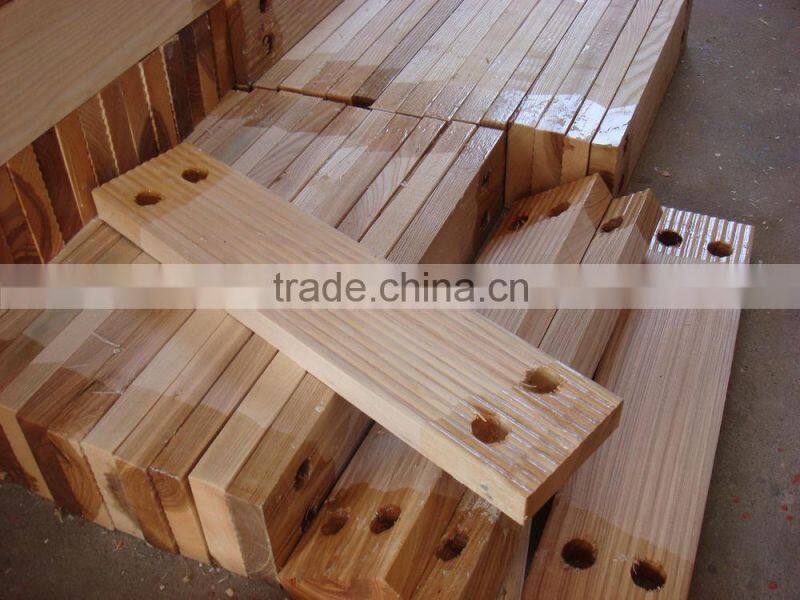

Short Board |
Long Board |
|||
Pilot’s Rope Ladder |
525×115×28 (flat board) |
1800×115×28 |
Φ25mm Or Φ32mm
|
willow |
|
525×115×(30~38) 525×115×(30~60) (slotting board) | ||||
Embarkation Ladder |
525×115×28 (flat board) |
1800×115×28 |
||
|
525×115×(30~38) 525×115×(30~60) (slotting b | ||||
Contact us for more details if you are interested in Pilot Rope Ladder or Embarkation Ladder. Thanks
