Home > Security & Protection > Fire Control > Fire Extinguisher > Fire Monitor(PP24C,PP32C) Water Fog/Water Column Dual-use Branchpipe
Fire Monitor(PP24C,PP32C) Water Fog/Water Column Dual-use Branchpipe
US$ 10 - 900
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
XH
Model Number:
PP24C/PP32C, PP24C/PP32C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao/Tianjing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fire Fighting System Control Panel for MarineUS$ 50,000 - 400,000MOQ: 1 Set -
2016 Price Containizer Fire Fighting 1200m3/h CapacityUS$ 800,000 - 1,000,000MOQ: 1 Set
-
High Quality Containerized FI-FI SystemUS$ 800,000 - 1,000,000MOQ: 1 Set
-
Water Foam Monitor For Fire Fighting Approved CCS/BVUS$ 50 - 65MOQ: 5 Sets
-
Water/Foam Fire Monitor,remote Control Fire MonitorUS$ 1 - 1,000,000MOQ: 1 Set
Place of Origin
Chongqing, China
Brand Name
XH
Model Number
PP24C/PP32C, PP24C/PP32C

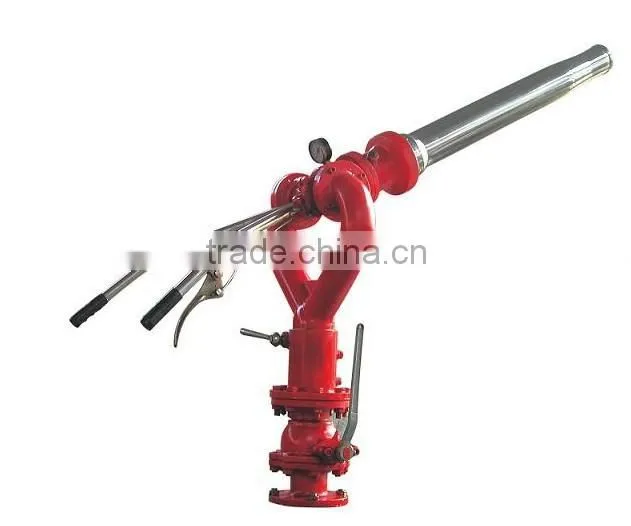

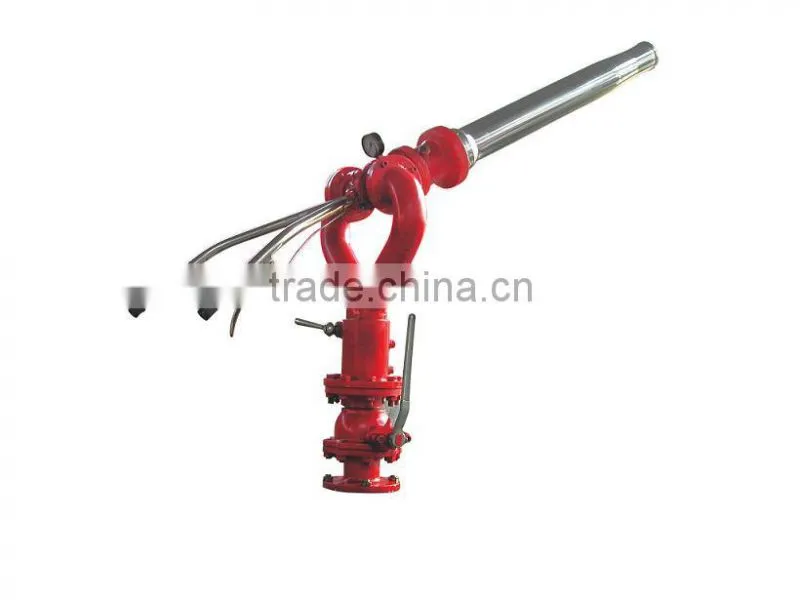

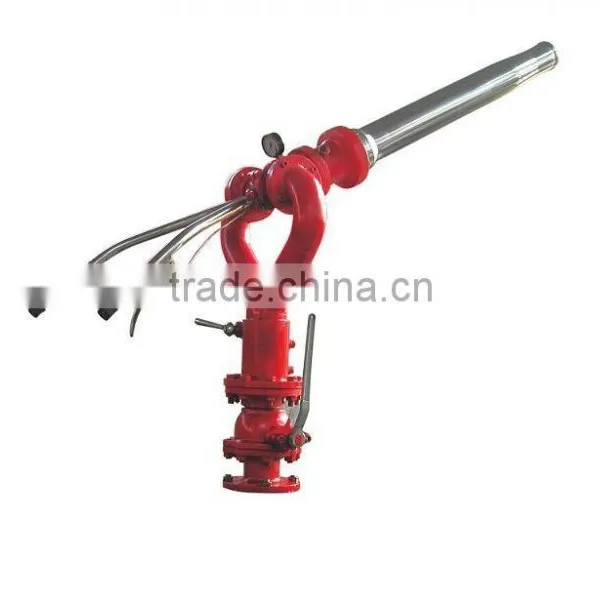

Fire monitor(PP24C,PP32C) water fog/Water column dual-use branchpipe
Applications of Water & Foam Dual-Usa Fire Mintor
Fire water monitor is an important remote fire fighting equipment.
Fire water monitor jets or sprays out water as media, putting fire out from a long distance from enterprise, tank farm, hangar, warehouse, port wharf, warehouses , museums, exhibition halls, and other places of fixed fire extinguishing equipment etc, and protecting exteranl equipment generally.
Specifications of Water & Foam Dual-Usa Fire Mintor
The gun has a novel structure, reliable performance, flexible operation, easy maintenance, long range, light weight, small size and other characteristics.
CCS approval.
| Model | PP24C(small) | PP32C | PP24C(large) |
| Service Pressure | 0.5-1.0Mpa | 0.5-1.0Mpa | 0.5-1.0Mpa |
| Max Service Pressure | 1.0Mpa | 1.0Mpa | 1.0Mpa |
| Spray Capacity(mixed liquid/water) | 24L/S | 32L/S | 24L/S |
| Range | ≥40 | ≥40 | ≥40 |
| Horizontal Rotary | 0-360° | 0-360° | 0-360° |
| Max Angle of Elevation | 0-140° | 0-140° | 0-140° |
| Max Angle of Depression | 0-120° | 0-120° | 0-120° |
| Allowable Discrepancy Capacity | -8-+8% | -8-+8% | -8-+8% |
| Foaming Times(20°C) | ≥6 | ≥6 | ≥6 |
| 25% Discharge Time(20°C) | ≥2.5min | ≥2.5min | ≥2.5min |
| Effluent Capacity | 40T/h | 50T/h | 85T/h |
| Connection Flang | DN50 | DN65 |
DN80 |
