PVC Material Crane and Davit Load Testing Water Bag

FOB Price

US$ 1 - 10 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Gathering
Model Number	GRB

Product Description

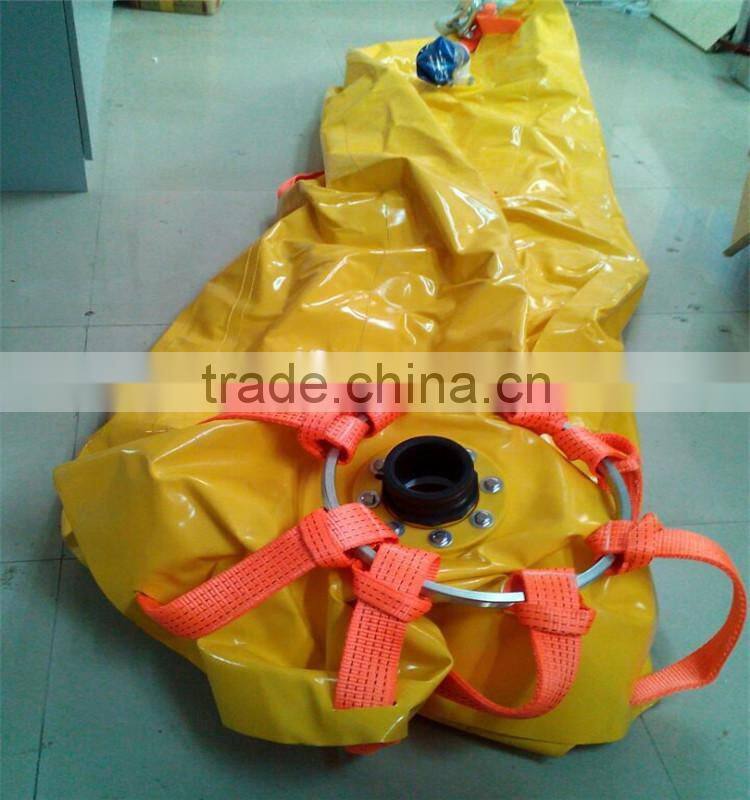

PVC Material Crane and Davit Load Testing Water Bag

Crane Load Testing Water Bags is designed for the proof load testing for the lifting equipments and structures, such as cranes, hoist, beams, davits, and so on. This crane load testing water bags provide one kind innovative load testing solution.

Crane Load Testing Water Bags meet the need for the simple proof load testing method instead of traditional solid test weight mothod of use load weight.

Crane load testing water bags for the proof load testing of crane, hoist, derrick, chain block, winch and davit test weight

Load Test Water Bag introduction:
- New type of Multi-Purpose Load test products
-Light weight, Small volume, convenient transportation.
-Security and environmental protection, energy-saving and cost-reducing
- Lateral drain, reduce bottom pressure. Make it more safe, more convenient when filling

Load Test Water Bag Feature:

- Special fabric bag body, can be folded during transport.
- Fabric quality is light, strength, easy to carry, and reduce transportation cost.
- High strength fiber sling crossed the waterbag body, Make the water bag more safety.
- Safety, environmental protection, non-toxic materials.
- Low temperature resistance, resistance to water, oil resistance, good alkali resistance
- Suitable for ambient temperature -50° C— 80° C, adapt to the cold and hot area.
- The biggest advantage of Water Bag is pressure testing
- Can be used for the crane hoisting test, The deck strength test, Drilling ship cantilever beam test etc.
-OEM Acceptable, we can make water bag according to customer's requirements

Technical Data

T ype	Full load /kg	Volum /m3	Full load height	Max Dia.	Weight	Package diameter
HYB1	1000	1	1.9	1.2	19	0.7
HYB2	2000	2	2.3	1.5	23	0.7
HYB3	3000	3	2.7	1.7	28	0.7
HYB1-2	1000	1	2.9	1.9	52	1.1
HYB5	5000	5	3.1	2.2	66	1.1
HYB6	6000	6	3.1	2.3	84	1.1
HYB8	8000	8	3.6	2.4	104	1.1
HYB10	10000	10	3.85	2.6	110	1.1
HYB12	12000	12	1.1	2.9	124	1.1
HYB15	15000	15	1.3	3	128	1.1
HYB20	20000	20	6	3.4	149	1.1
HYB25	25000	25	6.1	3.9	180	1.5
HYB35	35000	35	6.8	1.3	210	1.5
HYB10-2	10000	10	7.36	1.5	280	1.8
HYB50	50000	50	7.62	5.1	120	1.8

Please do not hesitate to contact us if you are interested in Load Test Water Bag or other items. Thanks
