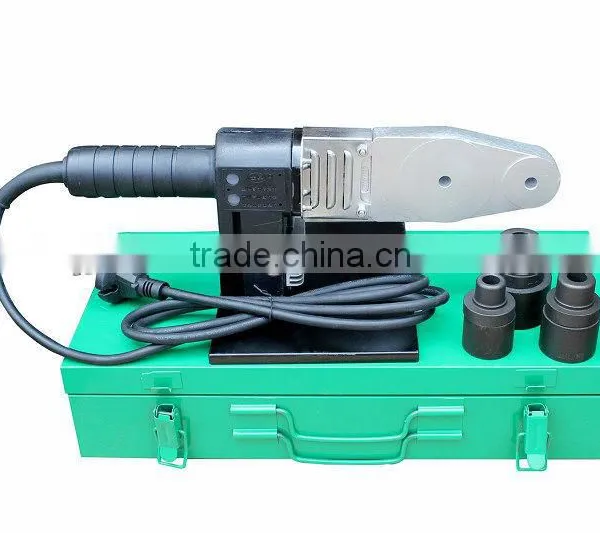

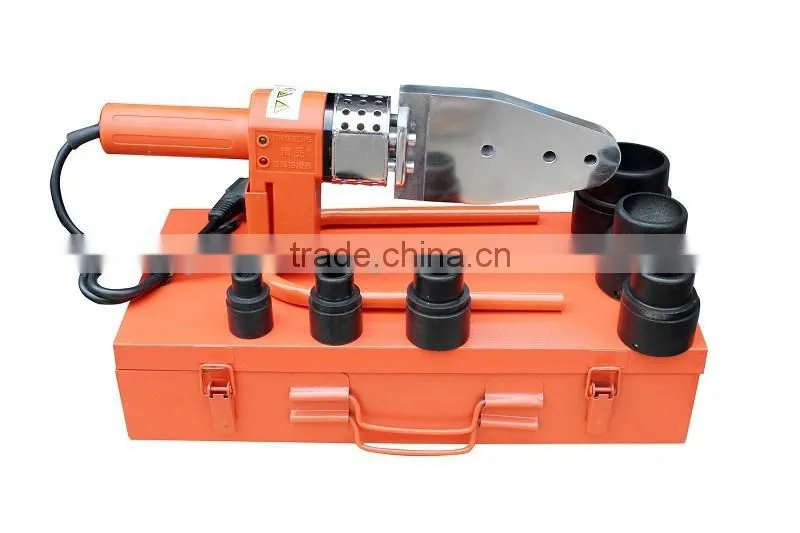

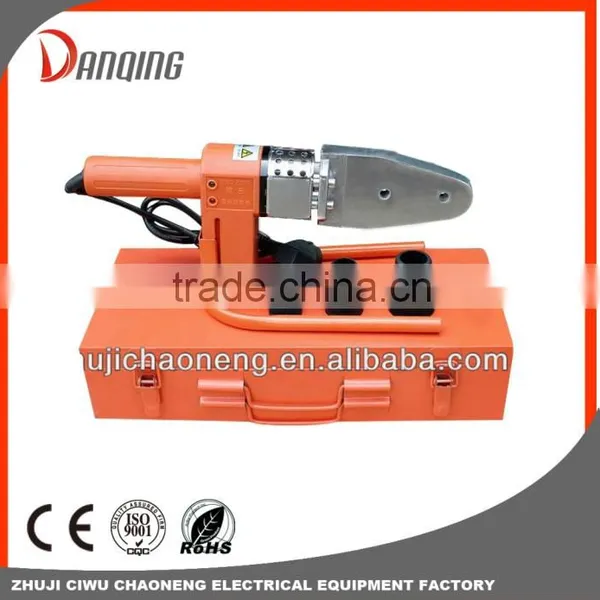

Ppr Pipe Welding Machine(automatic)
US$ 7.5 - 8
MOQ: 200 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DANQING
Model Number:
CN-021A
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Ppr Welding Machine(thermostat)/heat Fusion MachineUS$ 13.5 - 15MOQ: 100 Pieces -
Electric Plastic Tube Welding MachineNegotiableMOQ: 100 Sets
-
Electric Ppr Welding MachineNegotiableMOQ: 100 Sets
-
20/63mm Ppr Welding Machine(aluminium Handle)US$ 18.5 - 20MOQ: 100 Sets
-
Welding Machine for 160mm Plastic Pipe and FittingsUS$ 27 - 33MOQ: 100 Sets
Place of Origin
Zhejiang, China
Brand Name
DANQING
Model Number
CN-021A
Voltage
220±25V
Power
800W
Frequency
50HZ
Welding Area
DN 20 25 32 (mm)
Dimensions
DN 20 25 32 (mm)
Weight
2.3kg
Usage
welding plastic pipe and fittings
Heat Element: element with thermostat(electoronic temperature control)
Heating element are made of non-corrosive material
Temperature Range: 0-300 degree
Welding Diameter 20-32 mm
Power:800w,50HZ
Voltage 220±25 V
Welding materail:ppr plastic pipe and fitting
Foot: A special foot with clamp that enables working at any location.
Set Include: some tools you will need to install PPR pipe
Welding Note:
Cut the pipe. Push the pipe and fitting into the moulds for some time (See the table). Pull them out and insert the depth needed steadily .Please do not screw the pipes and fittings
OD (mm) |
Heating Time (s) |
Depth (mm) |
Cooling time(min) |
20 |
5 |
14 |
3 |
25 |
7 |
16 |
3 |
32 |
8 |
20 |
4 |
40 |
12 |
21 |
4 |
50 |
18 |
22.5 |
5 |
63 |
24 |
24 |
6 |
