Specifications
Piezo/bosch/denso/siemens/delphi common rail injector test are available.common rail system diesel injector tester hot sale
Introduction:

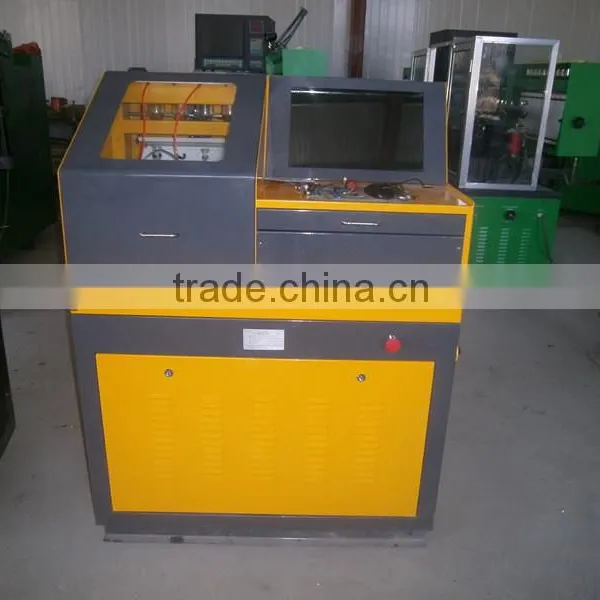

JH-2000A test bench is the special device to test the performance of high-pressure common rail injector assembly, it adopts BOSCH original common rail pump to provide 0~2000 bar of rail pressure, it can test common rail injector of main producers(BOSCH,SIEMENS,DELPHI,DENSO).
1.Test Bosch,Denso,Delphi,Siemens solenoid valve common rail injectors. Piezo injector is available to test too.
2.Pressure:0-2000Bar.
3.Install with Original Bosch CP1 pump.
4.Industrial air-conditioner to guarantee the oi temperature 38°C±4°C.
5.Injection times:0-1000times.
6.Accuracy:0.1ml
7.Test functions:
clean,leakage, injection oil quantity and back flow oil quantity(pre-injection,Idling, full load)
Technical Parameters:
1. Test frequency of injector: 50-3000rpm;
2. Pulse width: 0.1-20ms;
3.Test injection time: 1-300s;
4.Rail pressure: 0-200mpa;
5.Graduate: 120ML;
6.Input power: AC 380V/50HZ/3Phase or 220V/60HZ/3Phase or on request;
7.Fuel temperature: 40°C;
8.Overall dimension: 1200MM×800MM×1600MM;
9.Weight: 400KG
