Home > Products > simulation and tester > common rail pump test bench with CRS-300 test system

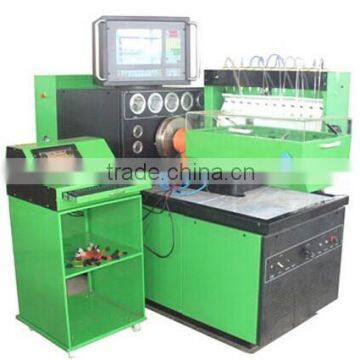

common rail pump test bench with CRS-300 test system
- 100 Set / Sets per Month
- qingdao
- Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | JHDS | Model Number: | CRS-300 |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description
common rail pump test bench with CRS-300 test system
Specifications:
1.can test the common rail injector and pump and the traditional pump.
2.can test 4 injectors at any one time.
3.CE certificat
Description:
Advanced common rail test system mounted on the traditional test bench, multi-use of one machine, can test not only common rail pump& injector but also traditional pump. Excellent quality and stable in performance, is ideal choice for you.
Technical Parameters:
Output power | 11KW,15KW |
Pressure | 0~2000 bar |
RPM | 0~3500 |
Size | 208*175*80(cm) |
Weight | 1280 kg |
Features:
1.Controlled by industrial computer
2.Windows XP operating system
3. Displayed by 19 LCD screen.
4.With database can be upgraded.
5. Driven by original Bosch pump
Functions:
Common Rail Injector | Common Rail Pump |
1.Test BOSCH,DENSO,DELPHI,DENSO, CATERPILLAR injectors. Piezo injector testing (optional function) | 1.Test BOSCH CPI/CP2/CP3, DENSO HP0/HP1/HP2/HP3/HP4, DELPHI CRSP, SIEMENS DCP common rail pumps and so on. |
2. Test 1,4, or 6 injectors at one time | 2.Test sealing quality of common rail pump. |
3. Sealing quality test of common rail injector | 3. Test pump chamber pressure of common rail pump. |
4.Pre-injection test of common rail injector | 4. Test the feeding pressure of common rail pump. |
5. Full-load condition test of common rail injector | 5. Test the feeding oil amount of common rail pump. |
6. Idle condition test of common rail injector | 6. Test the return fuel amount of common rail pump |
7. Calibration test of common rail injector | 7.Measure the rail pump at any test time. |
8.Cranking fuel quality test of common rail injector | 8.Display the pump speed at any test time. |
9. Self-learning ability | 9. Measure the temperature of fuel at any test time. |
10. High-pressure cleaning function | 10. Measure the control quality of ZME valve. |
11. Data can be save, edited, and printed | 11. Data can be save, edited and printed |
1)Common Rail Pump Test:
Function:
1.Test BOSCH CP1/CP2/CP3,DELPHI CRSP, DENSO HP0/HP1/HP2/HP3/HP4, SIEMENS DCP pump and so on.
2.Measure the feeding and return volume, pump chamber pressure, feeding pressure,check sealing performance, and functions of ZME valve.
2)Common Rail Injector Test:
Test BOSCH, DENSO, DELPHI,SIEMESN injectors.EUI/EUP
1.Test up to 4 pcs injectors at any one time.
2Automatic high-pressure cleaning.
3Test the oil injection and oil return under the circumstance of sealing, pilot injection, idle operation, full load.
4 Create, edit, view, save test plans easily.
Skype: cherishyingying
WhatsApp: 008615905360927
Contact Us
- Taian Jinhai Dongshan Equipment Co., Ltd.
- Contact nameKira Liu
- Phone86-538-8423301
- AddressLijiazhuang Village, Xujialou Office, Taishan Dist.
