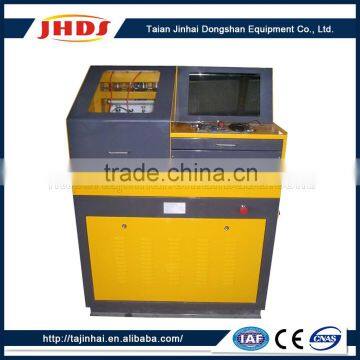

most popular and hot product From China fuel injection pump test bench JH-2000A

JH-2000A test bench is the special device to test the performance of high-pressure
common rail injector assembly, it adopts BOSCH original common rail pump to
provide 0~2000 bar of rail pressure, it can test common rail injector of main
producers(BOSCH, SIEMENS,DELPHI,DENSO).

Install Bosch original CP1pump

Motor power:3kw/380v/3phase or 3kw/220v/3phase,

Provide pressure 0-180mpa.

Test Bosch, Denso, Delphi, Siemens common rail injector and piezo injector(optional),printer(optional).

Install with standard data.

1.Test Bosch,Denso,Delphi,Siemens solenoid valve common rail injectors. Piezo
injector is available to test too.
2.Pressure:0-2000Bar(0-200mpa).
3.Install with Original Bosch CP1 pump.
4.Industrial air-conditioner to guarantee the oi temperature
38°C±4°C. 5.Injection times:0-1000times.
6.Accuracy:0.1ml
7.Test functions:
clean,leakage, injection oil quantity and back flow oil quantity(pre-injection,Idling, full load)
Technical Parameters:
1. Test frequency of injector: 50-3000rpm;
2. Pulse width: 0.1-20ms;
3.Test injection time: 1-300s;
4.Rail pressure: 0-200mpa;
5.Graduate: 120ML;
6.Power: 3KW
7.Input power: AC 380V/50HZ/3Phase or 220V/60HZ/3Phase or on request;
8.Fuel temperature: 40°C;
9.Overall dimension: 1200MM×800MM×1600MM;
10.Weight: 400KG
